Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated power (LO) | 7.50 kW | 10.00 hp |
| Rated power (HO) | 5.50 kW | 7.50 hp |
| Rated current (LO) | 18.00 A |
| Rated current (HO) | 13.20 A |
| Max. output current | 26.40 A |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |

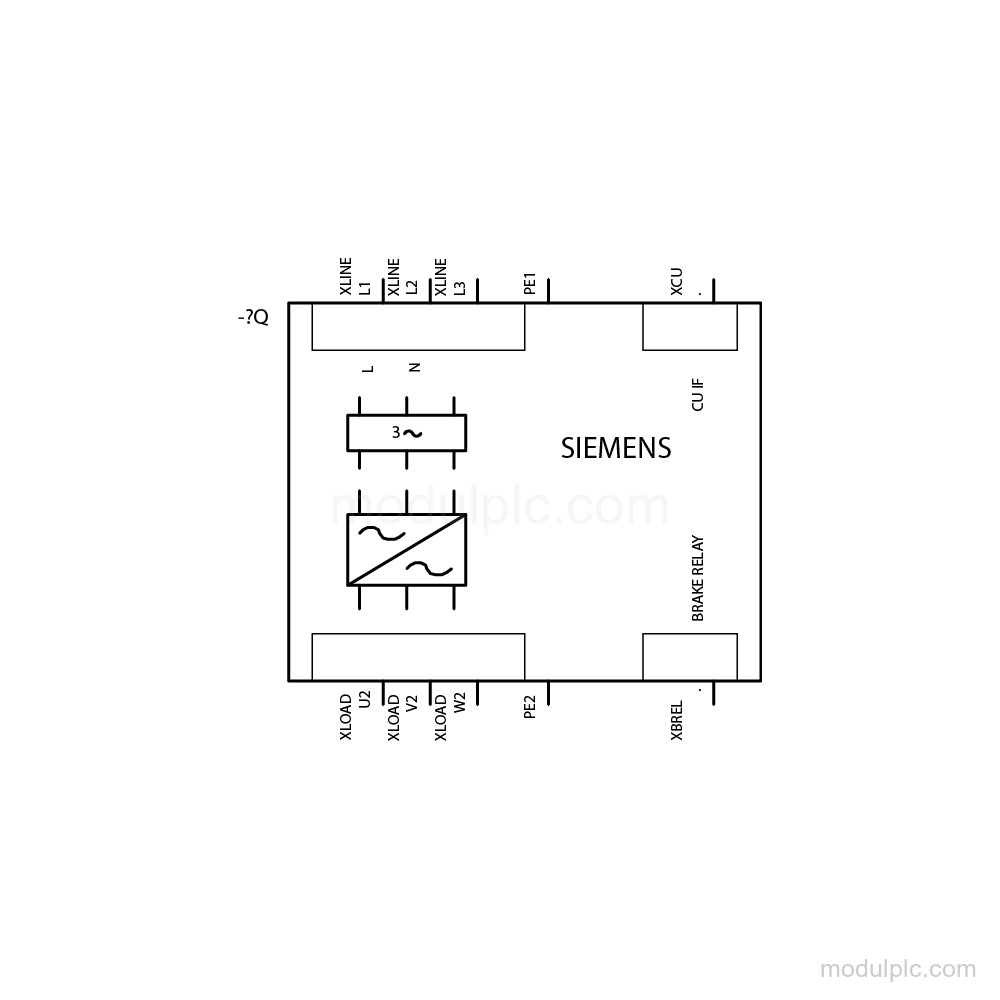

| Line-side connection | Screw-type terminal |
| Motor-side connection | Screw-type terminals |
| Degree of protection | IP20 / UL open type |
Applications
- Energy recovery: Supports energy recovery as a Power Module PM 250 function.
Key Features
- Energy recovery: Power Module PM 250 is capable of energy recovery.
- Integrated filter: Integrated Class A filter.
- 3 AC input: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz.
- Rated output power: Rated power: 7.50 kW | 10.00 hp (LO); 5.50 kW | 7.50 hp (HO).
- Output frequency: Output frequency: 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.
- Connections and protection: Screw-type terminals on the line and motor sides; IP20 / UL open type. The unit is without Control Unit and BOP.
Frequently Asked Questions
1. What is the function of 6SL3225-0BE25-5AA1?
It is a SINAMICS G120 Power Module PM 250 capable of energy recovery, with an integrated Class A filter.
2. What are the rated power values?
Rated power is 7.50 kW | 10.00 hp at LO and 5.50 kW | 7.50 hp at HO.
3. What input does this power module use?
Input is 3 AC, 380 … 480 V ±10 % at 47 … 63 Hz.
4. Which connections and protection are provided?
It has screw-type terminals on the line and motor sides and IP20 / UL open type protection.
5. Does the configuration include a Control Unit and BOP?
It is without Control Unit and BOP.
