Product Overview
Technical Summary
| Parameter | Value |
|---|---|

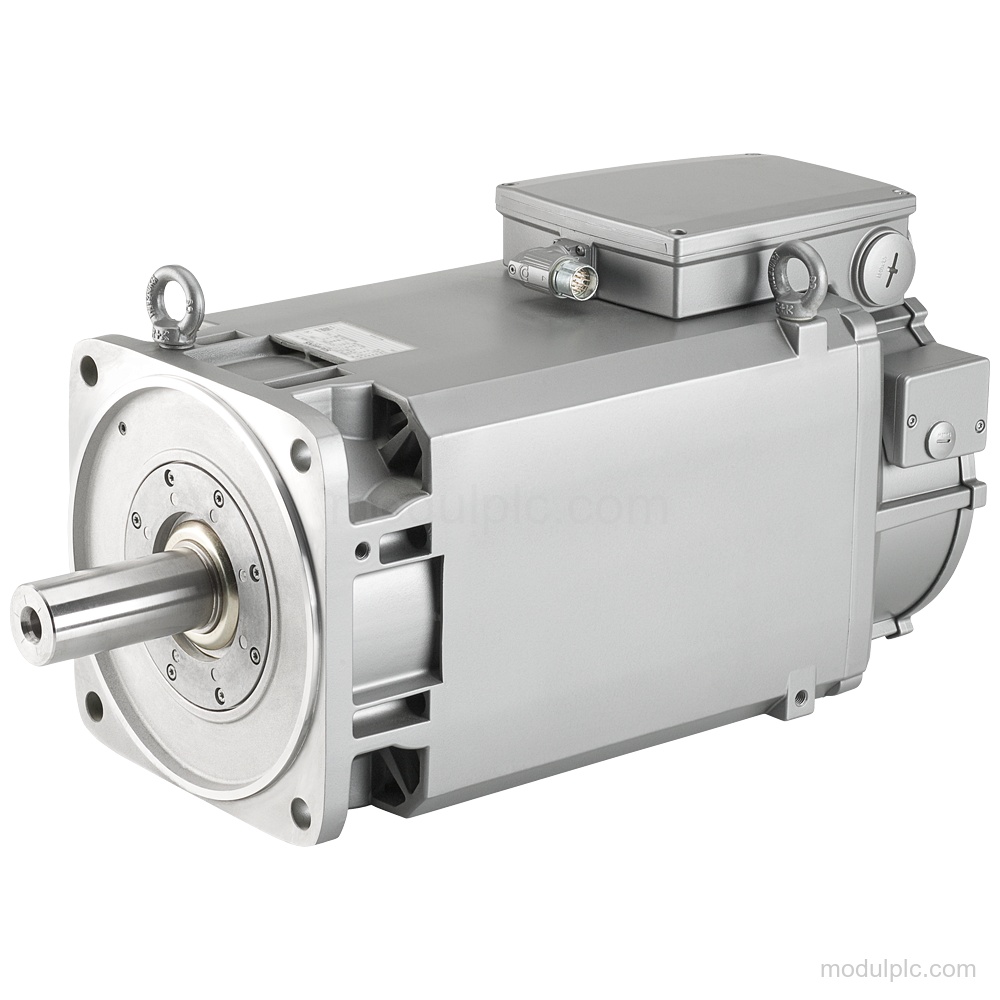

| Motor type | SIMOTICS M compact asynchronous motor |
| Rated output at 1500 r/min | 15 kW |
| Rated speed options | 1500 r/min, 1750 r/min, 2000 r/min, 2200 r/min |
| Encoder | Incremental encoder HTL 1024 S/R |
| Temperature sensor | KTY 84-130 |
| Degree of protection | IP55 |
| Cooling | Forced ventilation |
| Mechanical design | IM B35 (IM V15, (IM V35) |
| Terminal box position | Above |
| Cable entry | Right |
| Product lifecycle | Product cancellation |
Key Features
- Motor ratings: 1500 r/min: 15 kW, 96 Nm, 34 A, 342 V; 1750 r/min: 17.5 kW, 96 Nm, 34 A, 392 V; 2000 r/min: 20 kW, 96 Nm, 34 A, 445 V; 2200 r/min: 22 kW, 96 Nm, 34 A, 480 V.
- Encoder feedback: Incremental encoder HTL 1024 S/R (encoder HTL1024S/R).
- Temperature sensor: Temperature sensor KTY 84-130.
- Cooling and protection: Forced ventilation; direction of air flow NDE–> DE; IP55 degree of protection.
- Mechanical design: Design IM B35 (IM V15, (IM V35); shaft with fitted key; half-key balancing.
- Connections and bearing: Bearing: standard with fixed bearing. Vibration severity grade: R/A; flange accuracy: R. Terminal box above, cable entry on the right, signal connection D-end.
Frequently Asked Questions
1. What motor ratings are available for Siemens 1PH8133-1HF13-2BA1?
The supplied ratings are 15 kW at 1500 r/min, 17.5 kW at 1750 r/min, 20 kW at 2000 r/min, and 22 kW at 2200 r/min. Each rating has 96 Nm and 34 A; voltages are 342 V, 392 V, 445 V, and 480 V respectively.
2. Which encoder is fitted to this motor?
It has an incremental encoder HTL 1024 S/R, also identified as encoder HTL1024S/R.
3. What cooling and protection does the motor have?
The motor has forced ventilation and IP55 degree of protection. The air-flow direction is NDE–> DE.
4. What temperature sensor and mechanical design are included?
It has a KTY 84-130 temperature sensor and design IM B35 (IM V15, (IM V35), with a fitted-key shaft and half-key balancing.
