Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Communication | PROFIBUS DP |
| Standard digital inputs | 15 |
| Fail-safe digital inputs | 3 (Use of 2 × DI Standard) |
| Analog/digital inputs | 2 (Differential input) |
| Analog outputs | 2 (Non-isolated output) |
| Operating voltage via the Power Module | DC 24 V |
| External power supply | DC 20 … 29 V |
| Max. power consumption | 2.00 A |
| Protection | IP20 / UL open type |
| Encoder interfaces | D-CLiQ + HTL/TTL/SSI, resolver/HTL via terminal |
Applications
- Vector control: Supports V/f control, sensorless vector control, vector control with sensor, and torque control with or without encoder.
- Easy positioning: Supports Easy Positioning EPOS via an extended function license.
- Integrated safety functions: Provides integrated STO and SBC; further safety functions are available via an extended safety license.

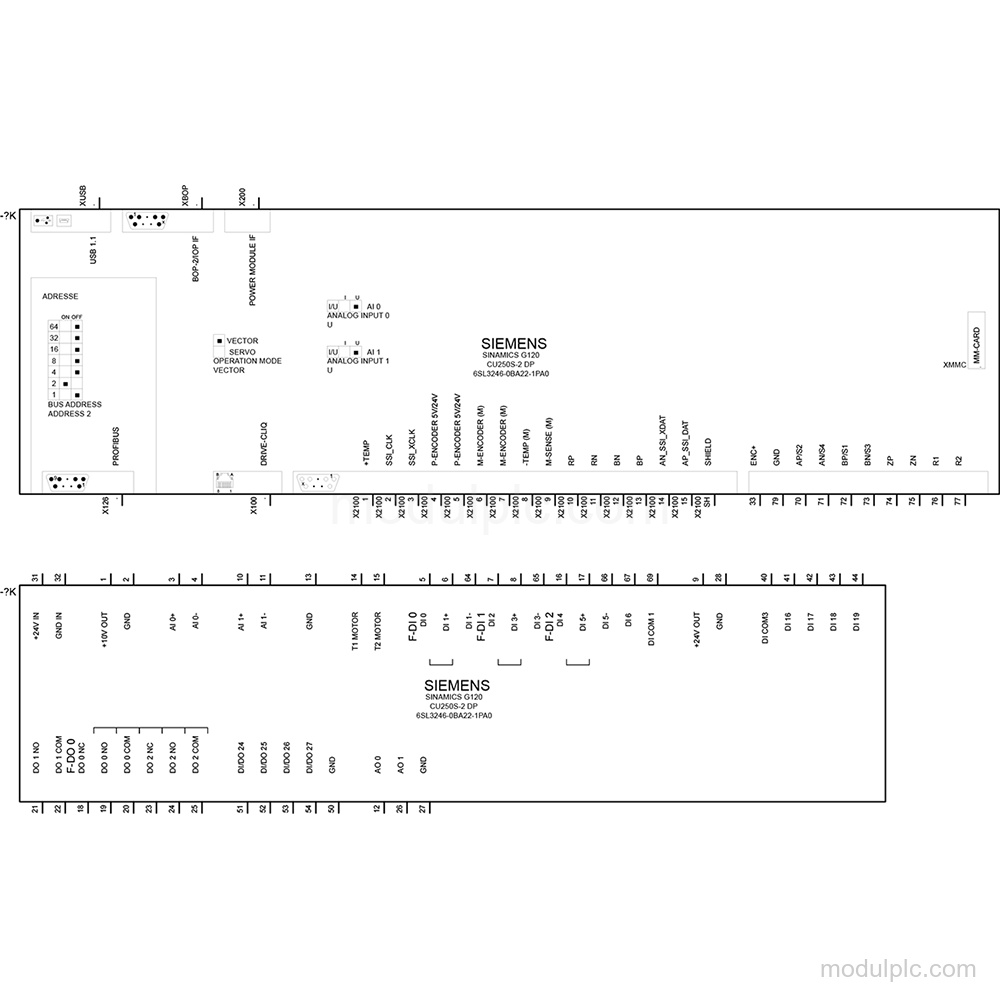

Key Features
- PROFIBUS DP communication: Communication interface: PROFIBUS DP.
- Digital inputs: 15 standard digital inputs and 3 fail-safe digital inputs; use of 2 × DI Standard applies to the fail-safe inputs.
- Analog I/O: 2 differential analog/digital inputs and 2 non-isolated analog outputs.
- Relay outputs: 2 relay changer outputs and 2 relay make contacts, each rated DC 30 V, 0.5 A for resistive load.
- Power and protection: Operating voltage via the Power Module: DC 24 V. Protection: IP20 / UL open type.
- Encoder interfaces: Encoder interfaces: D-CLiQ with HTL/TTL/SSI, and resolver/HTL via terminal.
Frequently Asked Questions
1. What communication protocol does the 6SL3246-0BA22-1PA0 support?
It supports PROFIBUS DP communication.
2. How many digital and analog inputs does the Control Unit have?
It has 15 standard digital inputs, 3 fail-safe digital inputs, and 2 differential analog/digital inputs. The fail-safe inputs use 2 × DI Standard.
3. What analog and relay outputs are provided?
It has 2 non-isolated analog outputs, 2 relay changer outputs, and 2 relay make contacts. Each relay output is DC 30 V, 0.5 A for resistive load.
4. Which encoder interfaces are available?
The encoder interfaces are D-CLiQ with HTL/TTL/SSI and resolver/HTL via terminal.
5. What is included in the safety functions?
Integrated safety functions include STO and SBC. Further safety functions require an extended safety license.
