Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Communication interfaces | PROFINET, EtherNet/IP |
| Standard digital inputs | 15 |
| Fail-safe digital inputs | 3 (Use of 2 × DI Standard) |
| Differential analog inputs | 2 |
| Non-isolated analog outputs | 2 |
| Relay outputs | DC 30 V, 0.5 A with resistive load |
| Operating voltage via Power Module | DC 24 V |
| External power supply | DC 20 … 29 V |
| Maximum power consumption | 2.00 A |
| Encoder interfaces | D-CLiQ, HTL/TTL/SSI, resolver/HTL via terminal |
| Protection | IP20 / UL open type |
Applications
- Drive control: Supports V/f control, flux current control, sensorless vector control, vector control with sensor, and torque control.
- Positioning control: Supports Easy Positioning EPOS via an extended function license.
- Safety functions: Provides integrated STO and SBC safety functions; further safety functions require an extended safety license.

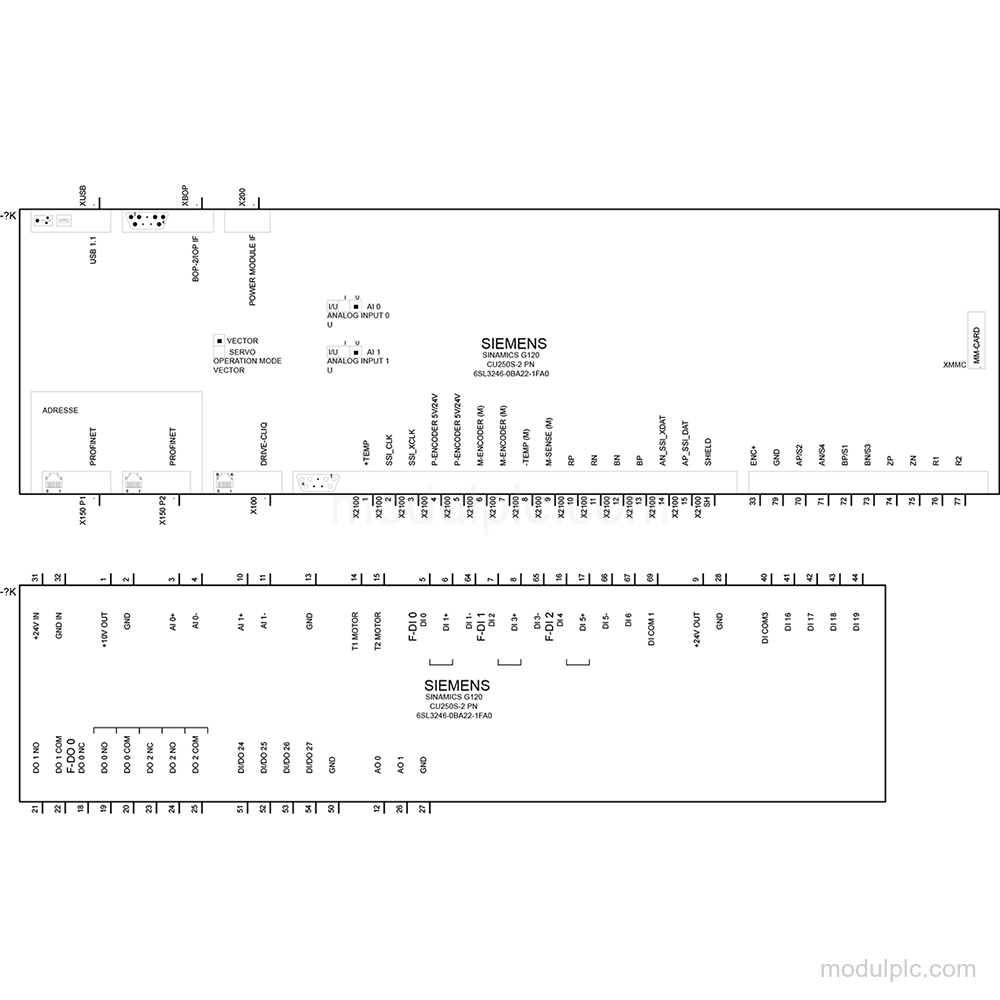

Key Features
- PROFINET and EtherNet/IP: Communication interfaces: PROFINET and EtherNet/IP.
- Digital and analog I/O: The unit has 15 standard digital inputs, 3 fail-safe digital inputs using 2 × standard DI, 2 differential analog inputs, and 2 non-isolated analog outputs.
- Relay outputs: It has 2 relay changer outputs and 2 relay make-contact outputs, each rated for DC 30 V, 0.5 A with resistive load.
- Control and positioning functions: Supported functions include vector control, sensorless vector control, torque control, and Easy Positioning EPOS via an extended function license.
- Encoder interfaces and protection: Encoder interfaces include D-CLiQ, HTL/TTL/SSI, and resolver/HTL via terminal. Protection: IP20 / UL open type.
Frequently Asked Questions
1. What communication interfaces does the 6SL3246-0BA22-1FA0 have?
It supports PROFINET and EtherNet/IP.
2. How many digital and analog inputs does this control unit have?
It has 15 standard digital inputs, 3 fail-safe digital inputs using 2 × standard DI, and 2 differential analog inputs.
3. What supply voltage does the unit require?
The operating voltage via the Power Module is DC 24 V. The external power supply range is DC 20 … 29 V.
4. Which encoder interfaces are supported?
Encoder interfaces include D-CLiQ, HTL/TTL/SSI, and resolver/HTL via terminal.
5. Does the configuration include all additional safety functions?
It has integrated STO and SBC; further safety functions require an extended safety license.
