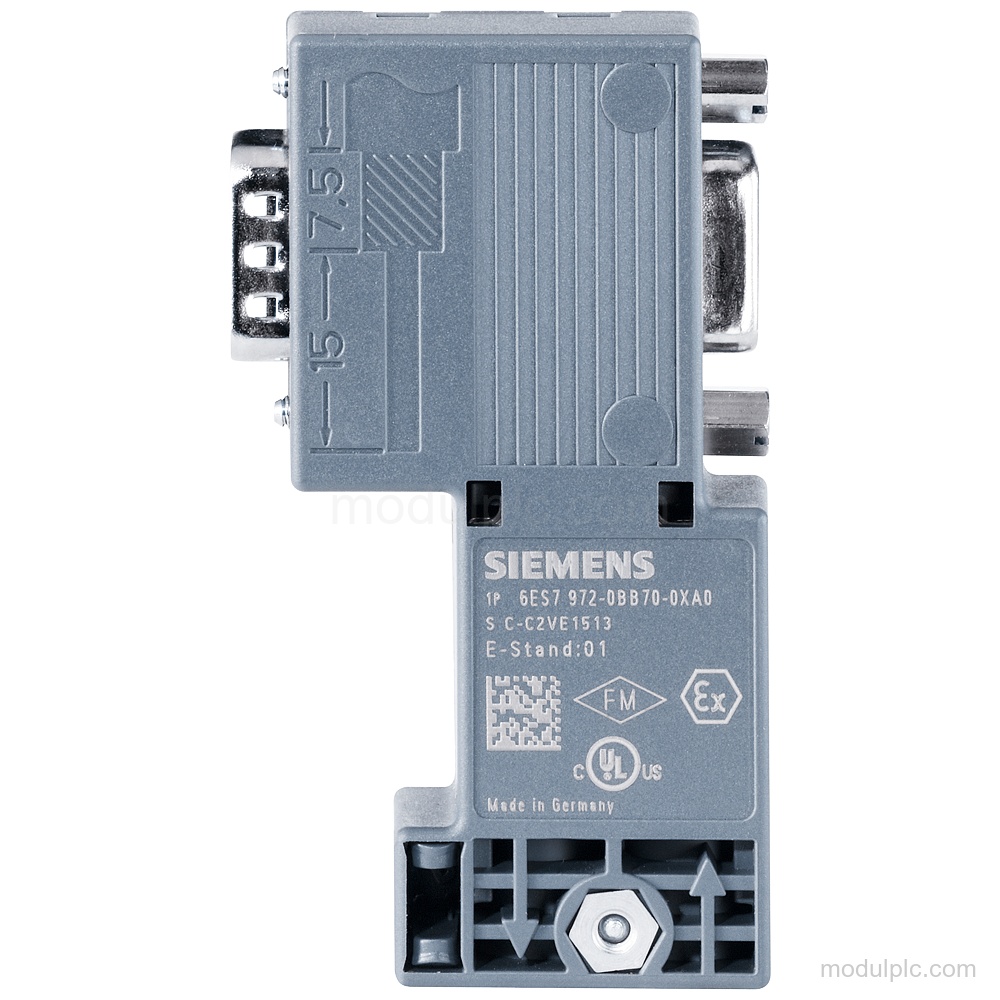

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PROFIBUS connector |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s |
| PROFIBUS cable connections | 2 |
| Network component or terminal equipment connection | 1 |
| Cable connection | Integrated insulation displacement terminals for 2-core PB FC installation cables |
| Equipment connection | 9-pin sub D connector |
| Cable outlet | 90° |
| Protection class | IP20 |
Applications
- PROFIBUS station connection: Connects PROFIBUS stations to the PROFIBUS bus cable.
Key Features
- PROFIBUS bus connection: Connects PROFIBUS stations to the PROFIBUS bus cable.
- Transfer rate: Supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.

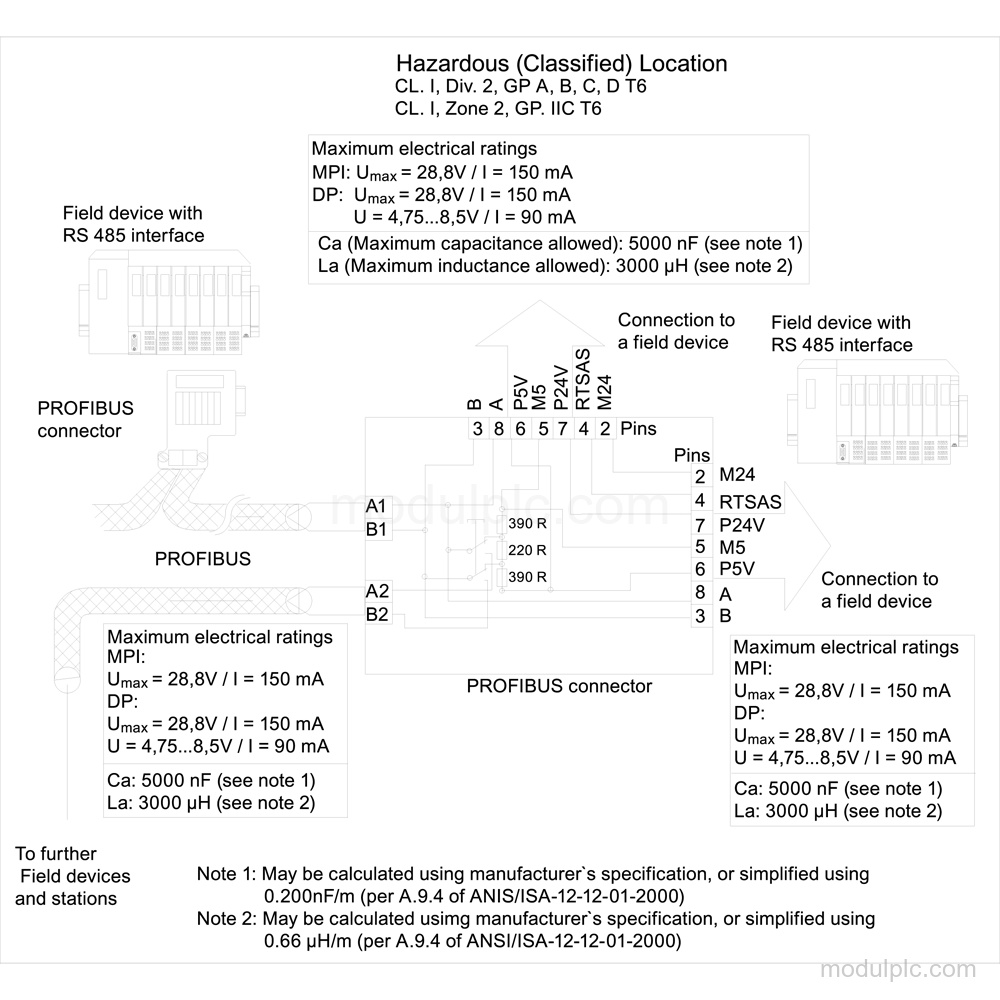

- Electrical connections: Provides 2 connections for PROFIBUS cables and 1 connection for network components or terminal equipment.
- Connection interfaces: Has integrated insulation displacement terminals for 2-core PB FC installation cables and a 9-pin sub D connector.
- Mechanical design: Features a 90° cable outlet, integrated connectable terminating resistor, screwed joint, and PG connection socket.

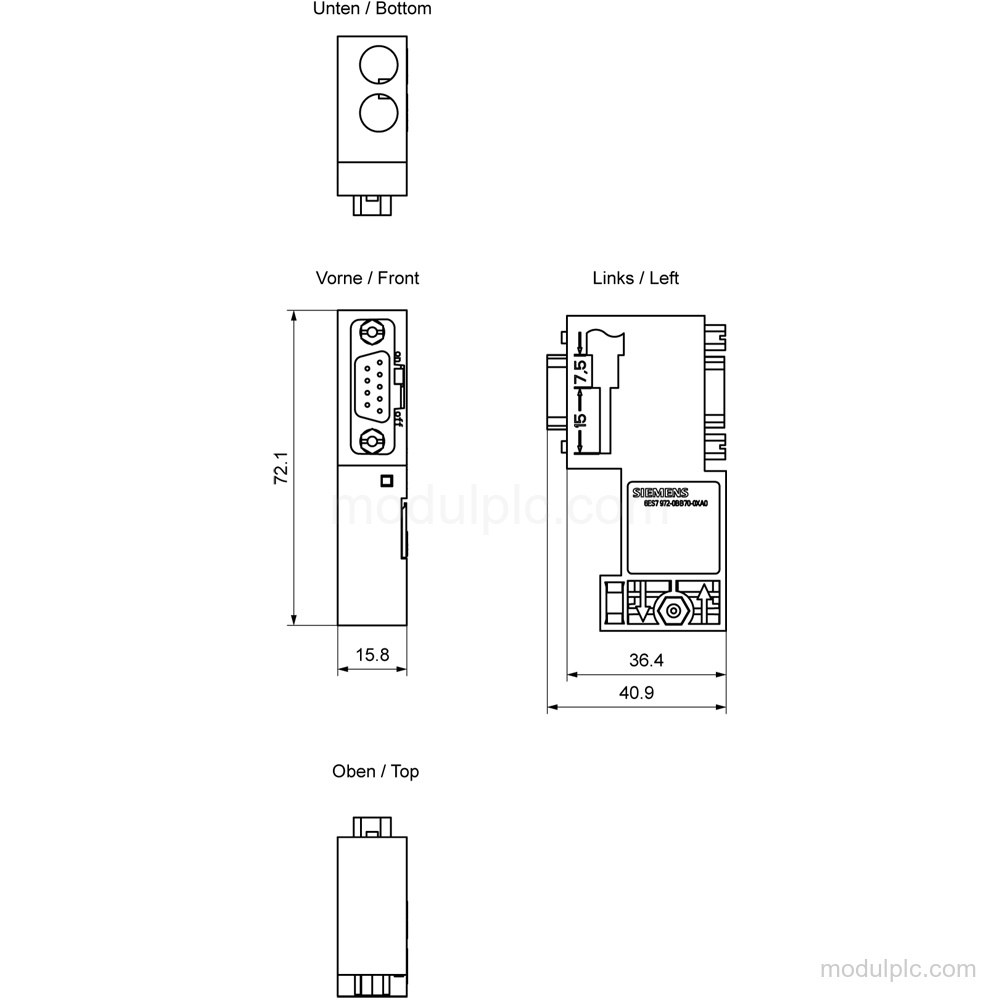

- Dimensions and protection: Measures 15.8 mm × 72 mm × 36.4 mm, weighs 45 g, and has IP20 protection.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7972-0BB70-0XA0?
It connects PROFIBUS stations to the PROFIBUS bus cable.
2. What transfer rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
3. Which connections does the connector provide?
It provides 2 connections for PROFIBUS cables and 1 connection for network components or terminal equipment. The equipment connection is a 9-pin sub D connector.
4. Does the connector include FastConnect and a terminating resistor?
Yes. It has integrated insulation displacement terminals for 2-core PB FC installation cables and an integrated terminating resistor that can be connected via a slide switch.
