Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PROFIBUS connector |
| Interface | RS 485 |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP |
| PROFIBUS cable connections | 2, screw |
| Network component connection | 1, 9-pin sub D connector |
| Cable outlet | 35° |
| Terminating resistor | Integrated and connectable via slide switch |
| Protection class | IP20 |
Applications
- PROFIBUS station connection: Connects PROFIBUS stations to the PROFIBUS bus cable.
Key Features
- PROFIBUS bus connection: Connects PROFIBUS stations to PROFIBUS bus cable through an RS 485 interface.
- Transfer rate: Supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
- Connection interfaces: Provides 2 screw connections for PROFIBUS cables and 1 9-pin sub D connector for network components or terminal equipment.

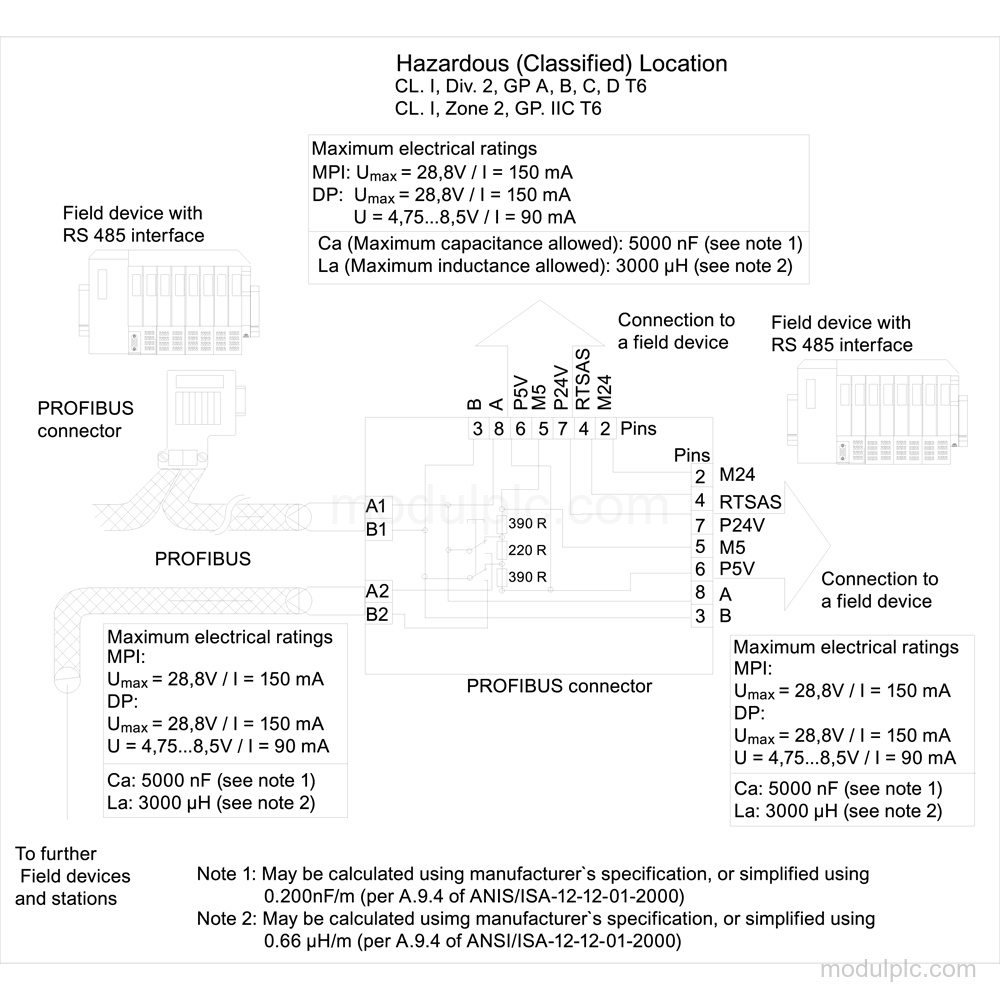

- Integrated terminating resistor: The resistor combination is integrated and connectable via a slide switch.

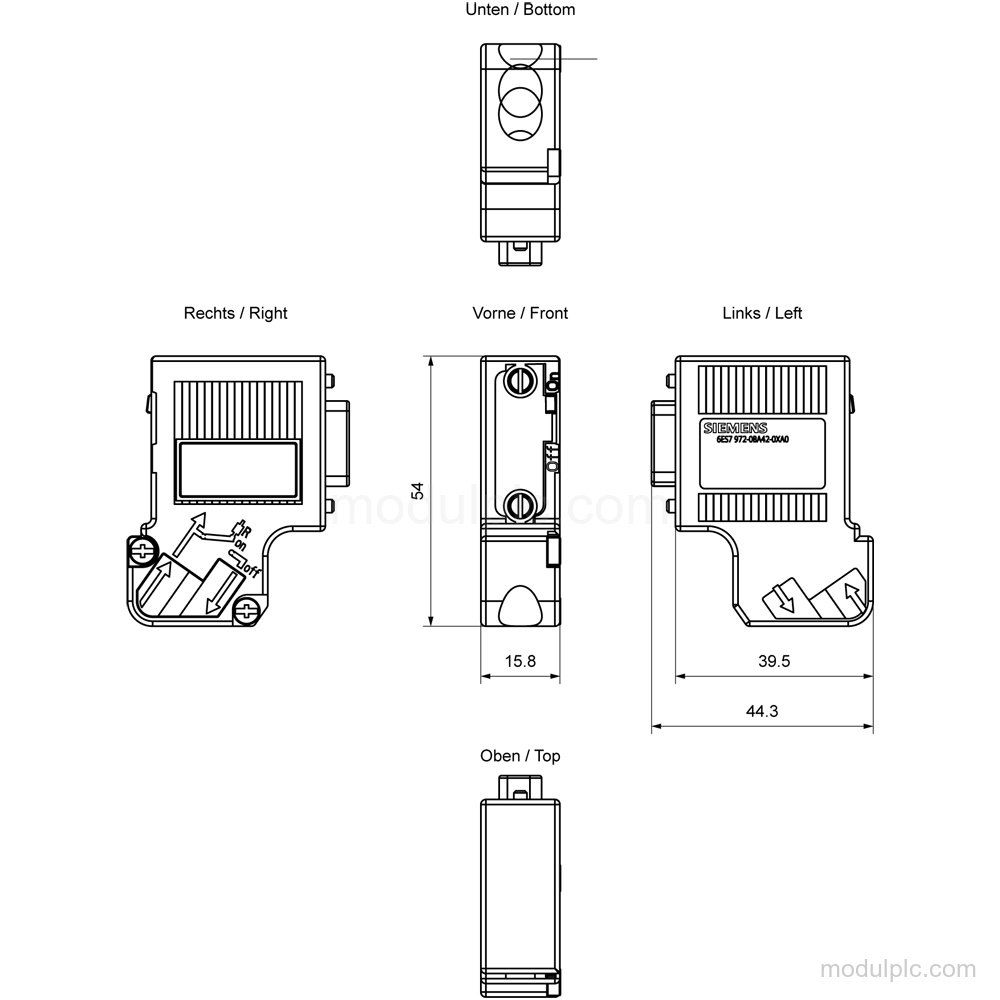

- Mechanical design: Has a 35° cable outlet, screwed joint, plastic enclosure, and IP20 protection.
Frequently Asked Questions
1. What is the 6ES7972-0BA42-0XA0 used for?
It is used for connecting PROFIBUS stations to the PROFIBUS bus cable.
2. What transfer rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
3. What connections does the connector have?
It has 2 screw connections for PROFIBUS cables and 1 9-pin sub D connector for network components or terminal equipment.
4. Does it include a programming port or PG connection socket?
It is without a programming port and without a PG connection socket.
