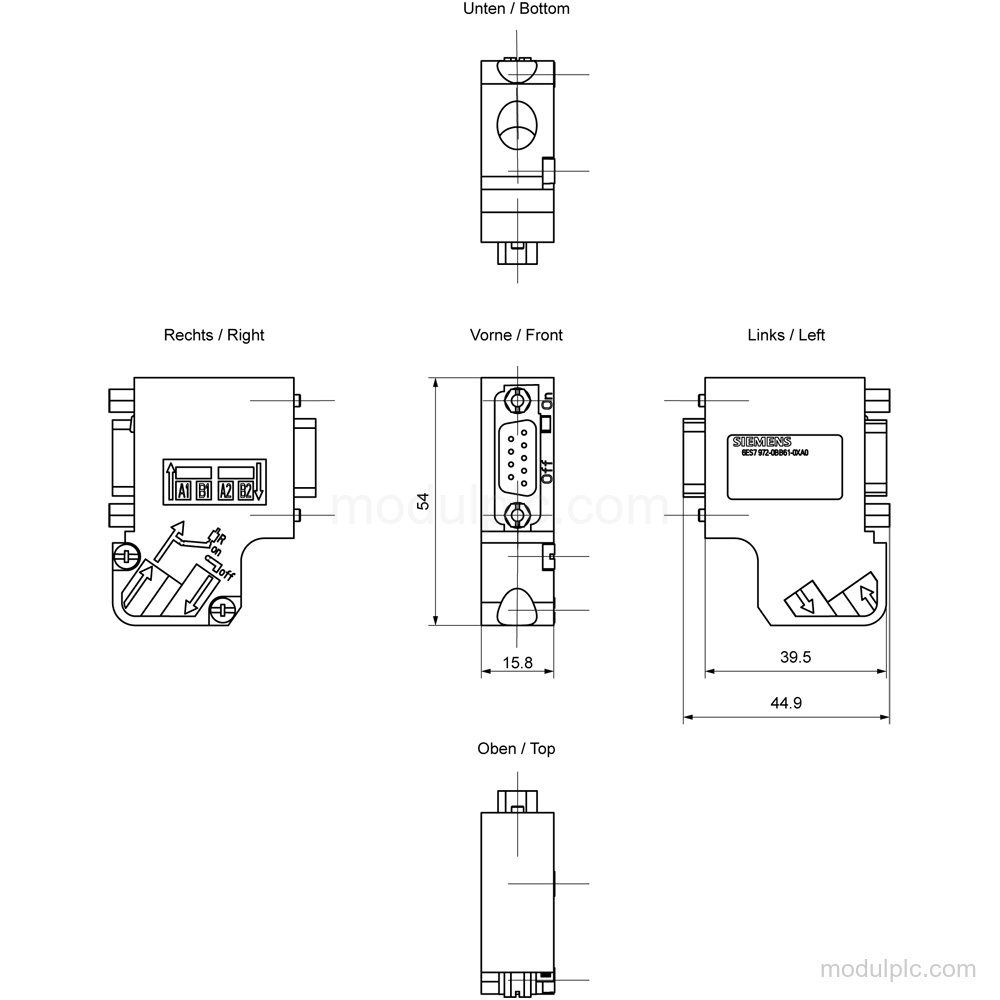

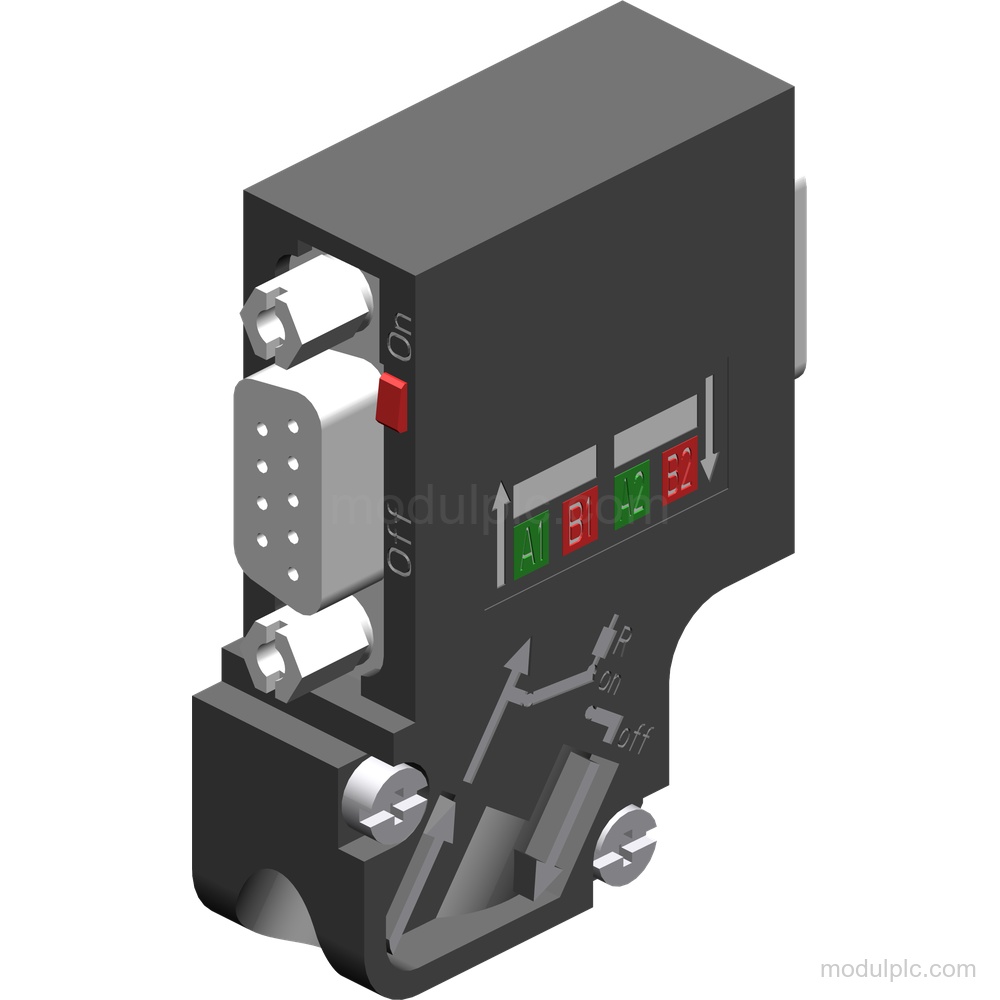

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PROFIBUS connector |
| Supported transfer rate | 9.6 kbit/s to 12 Mbit/s |
| Communication interface | RS 485 |
| Electrical connections for PROFIBUS cables | 2 |
| Electrical connection for network components or terminal equipment | 1 9-pin sub D connector |
| Cable connection | Integrated insulation displacement terminals for 2-core PB FC installation cables |
| FastConnect | Yes |
| Cable outlet | 35° |
| Protection class | IP20 |
| Operating ambient temperature | -25 … +60 °C |

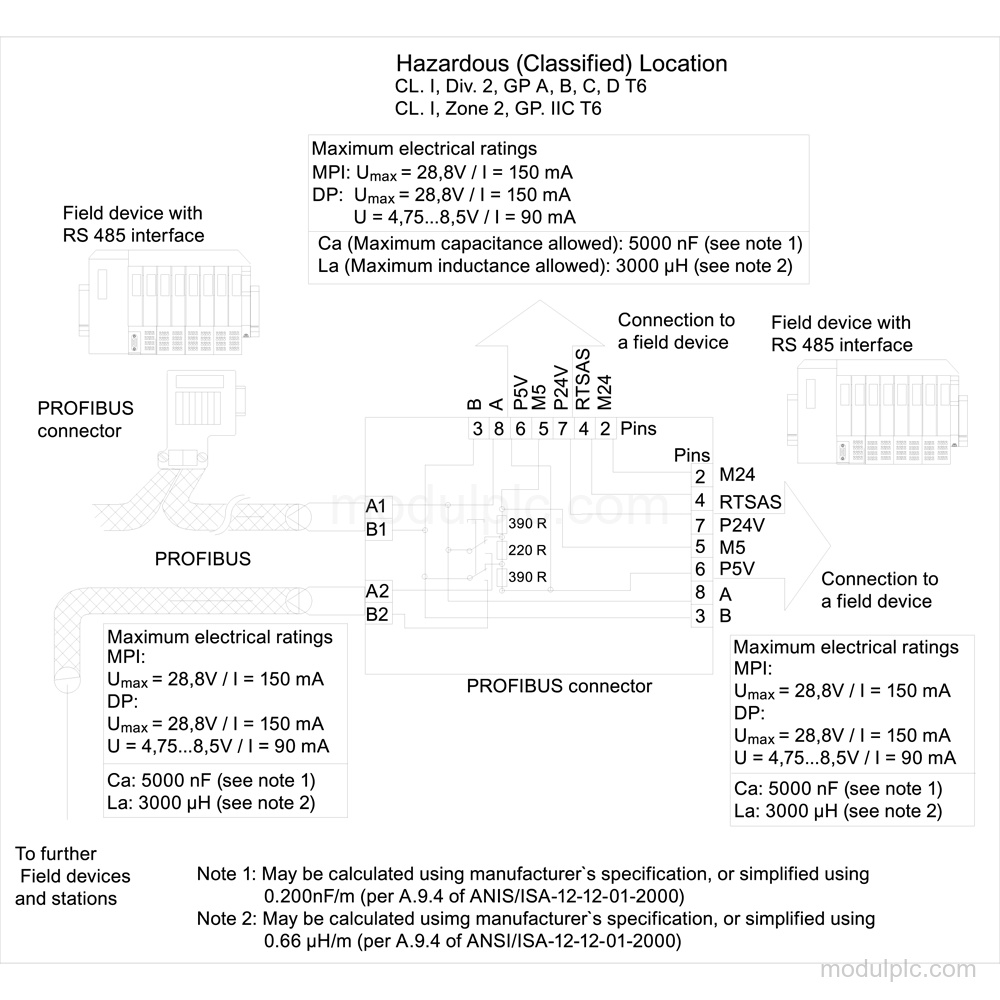

| Terminating resistor | Integrated resistor combination, connectable via slide switch |
Applications
- PROFIBUS station connection: Connects PROFIBUS stations to the PROFIBUS bus cable.
Key Features
- PROFIBUS bus connection: Connects PROFIBUS stations to the PROFIBUS bus cable and supports RS 485 communication.
- Transfer rate: Supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
- FastConnect connection: Has integrated insulation displacement terminals for 2-core PB FC installation cables.
- Network component connection: Uses 1 9-pin sub D connector for network components or terminal equipment.
- Cable outlet and housing: Provides a 35° cable outlet, plastic enclosure, screwed joint, and integrated strain relief.
- Terminating resistor: The resistor combination is integrated and connectable via a slide switch.
Frequently Asked Questions
1. What is the function of the 6ES7972-0BB61-0XA0?
It connects PROFIBUS stations to the PROFIBUS bus cable.
2. What transfer rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
3. Which connections does it provide?
It has integrated insulation displacement terminals for 2-core PB FC installation cables and 1 9-pin sub D connector for network components or terminal equipment.
4. Does it include a terminating resistor?
The resistor combination is integrated and connectable via a slide switch.
