Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PROFIBUS connector |
| Bus interface | RS 485 |
| Transfer rate | 9.6 kbit/s to 12 Mbit/s |
| PROFIBUS cable connections | 2 |
| Network component connection | 1 |
| Cable connection | Integrated insulation displacement terminals for 2-core PB FC installation cables |
| Equipment connection | 9-pin sub D connector |
| FastConnect | Yes |
| Cable outlet | 90° |
| Terminating resistor | Integrated and connectable via slide switch |
| Protection class | IP20 |
Applications
- Connecting PROFIBUS stations: Connects PROFIBUS stations to the PROFIBUS bus cable.
Key Features
- PROFIBUS bus connection: Connects PROFIBUS stations to the PROFIBUS bus cable.
- Transfer rate: Supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
- Electrical connections: Has 2 connections for PROFIBUS cables and 1 connection for network components or terminal equipment.
- Connection types: Uses integrated insulation displacement terminals for 2-core PB FC installation cables and a 9-pin sub D connector.

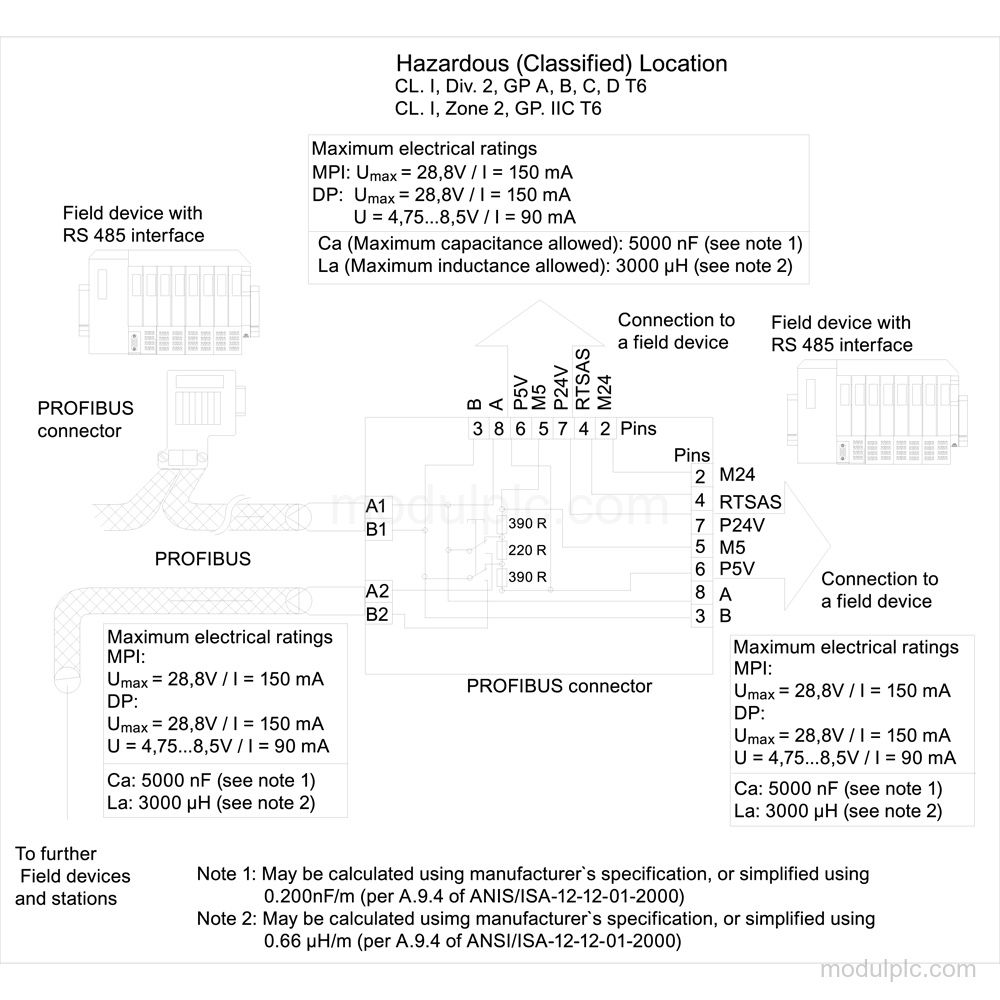

- Integrated terminating resistor: The resistor combination is integrated and connectable via slide switch; when connected, the outgoing bus is disconnected.

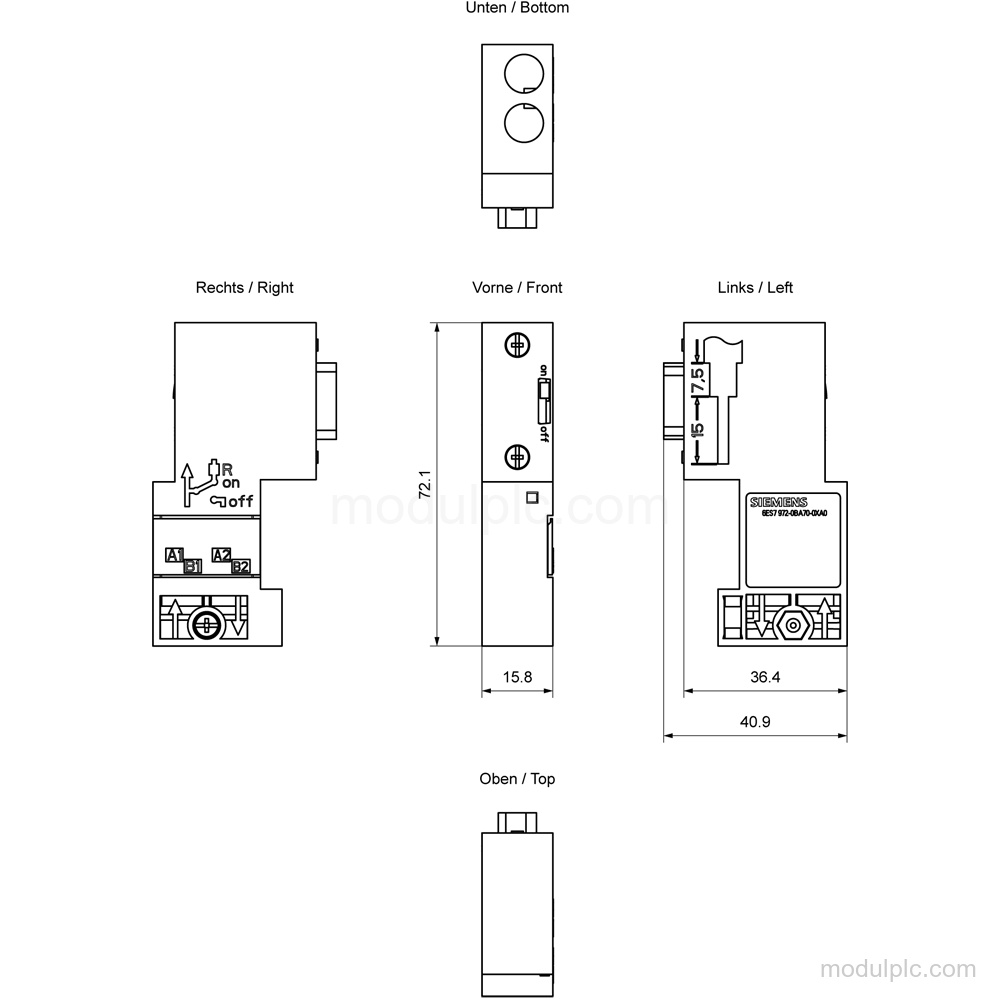

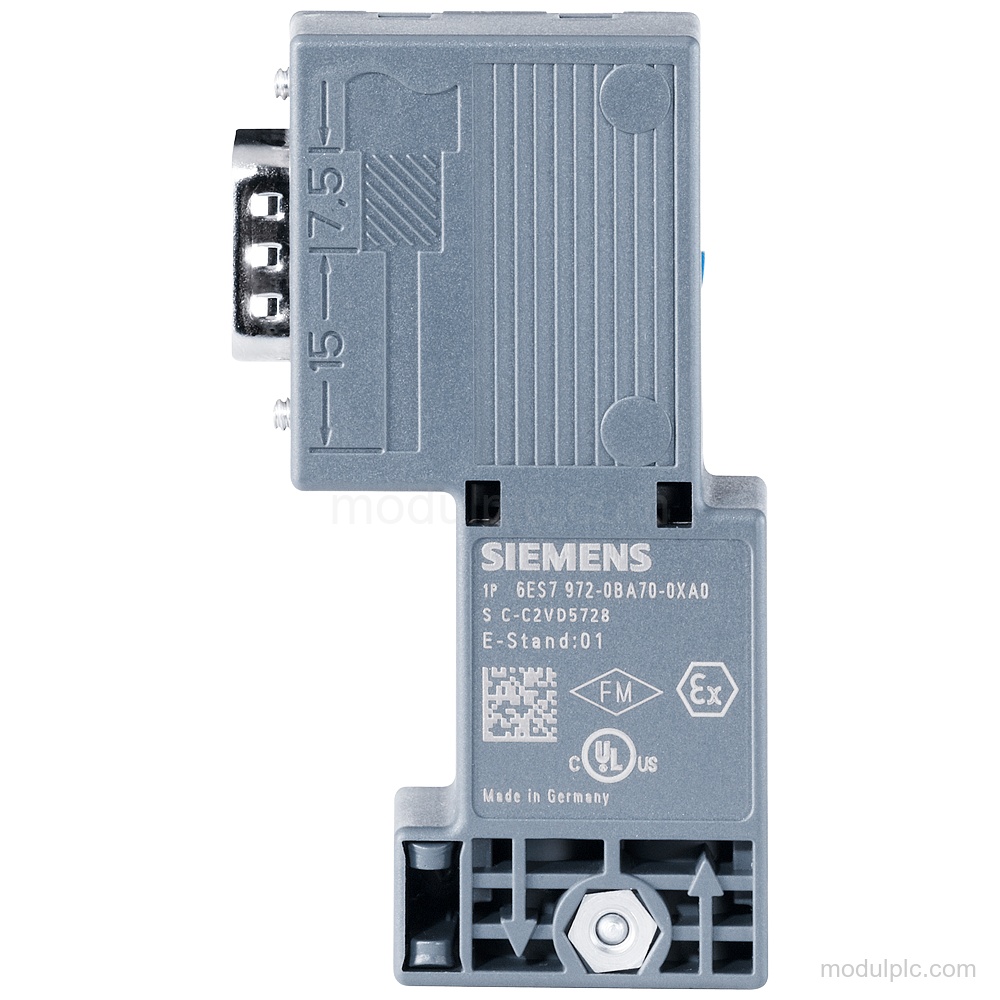

- Mechanical design: Has a 90° cable outlet, screwed joint, IP20 protection, and dimensions of 15.8 mm × 72 mm × 36.4 mm.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7972-0BA70-0XA0?
It connects PROFIBUS stations to the PROFIBUS bus cable.
2. What transfer rate does this PROFIBUS connector support?
It supports 9.6 kbit/s to 12 Mbit/s with PROFIBUS DP.
3. Which connections does the connector provide?
It has integrated insulation displacement terminals for 2-core PB FC installation cables and a 9-pin sub D connector.
4. Does it include a terminating resistor?
It has an integrated resistor combination that can be connected via slide switch. When connected, the outgoing bus is disconnected.
