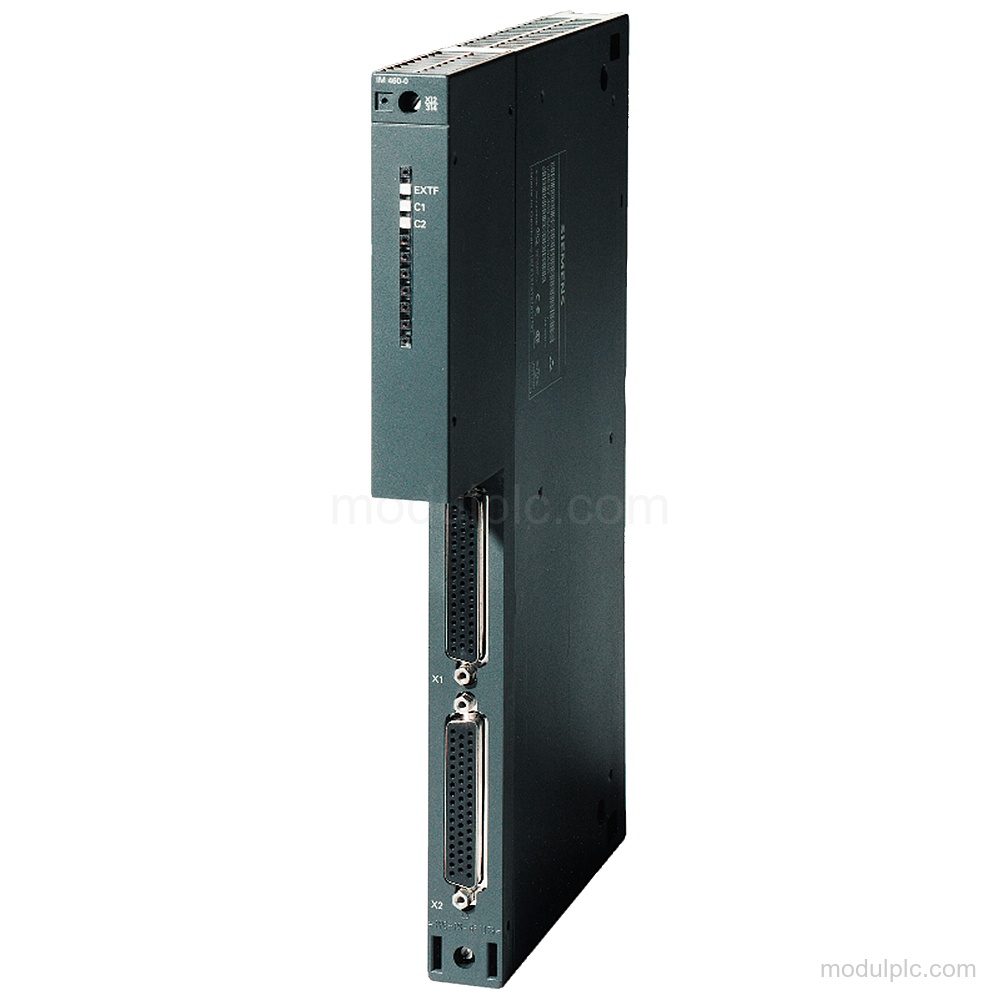

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIPLUS S7-400 IM 460-0 TX interface module |
| Based on | 6ES7460-0AA01-0AB0 |
| Input current from 5 V DC backplane bus, max. | 140 mA |
| Power loss, max. | 700 mW |
| Ambient temperature during operation | -25 °C to 60 °C |
| Installation altitude above sea level, max. | 5 000 m |
| Conformal coating | Class 2 for high reliability; Type 1 protection |
Key Features
- Interface module identity: SIPLUS S7-400 IM 460-0 TX based on 6ES7460-0AA01-0AB0.
- Backplane input current: Input current from the 5 V DC backplane bus: 140 mA max.
- Power loss: Power loss: 700 mW max.
- Cable length: Cable length between the first and last interface module: 5 m max.
- Operating temperature: Ambient temperature during operation: -25 °C to 60 °C.
- Conformal coating: Conformal coating with Class 2 high-reliability coating, Type 1 protection against fouling, and Class A qualification according to IPC-CC-830A.
Frequently Asked Questions
1. What is the Siemens 6AG1460-0AA01-2AB0?
It is a SIPLUS S7-400 IM 460-0 TX interface module based on 6ES7460-0AA01-0AB0.
2. What is the maximum input current?
The input current from the 5 V DC backplane bus is 140 mA max.
3. What cable length is supported?
The cable length between the first and last interface module is 5 m max.
4. What should be verified before inquiry?
Verify the -25 °C to 60 °C operating ambient temperature, 5 000 m maximum installation altitude, 25 mm x 290 mm x 217 mm dimensions, and 600 g approximate weight.
