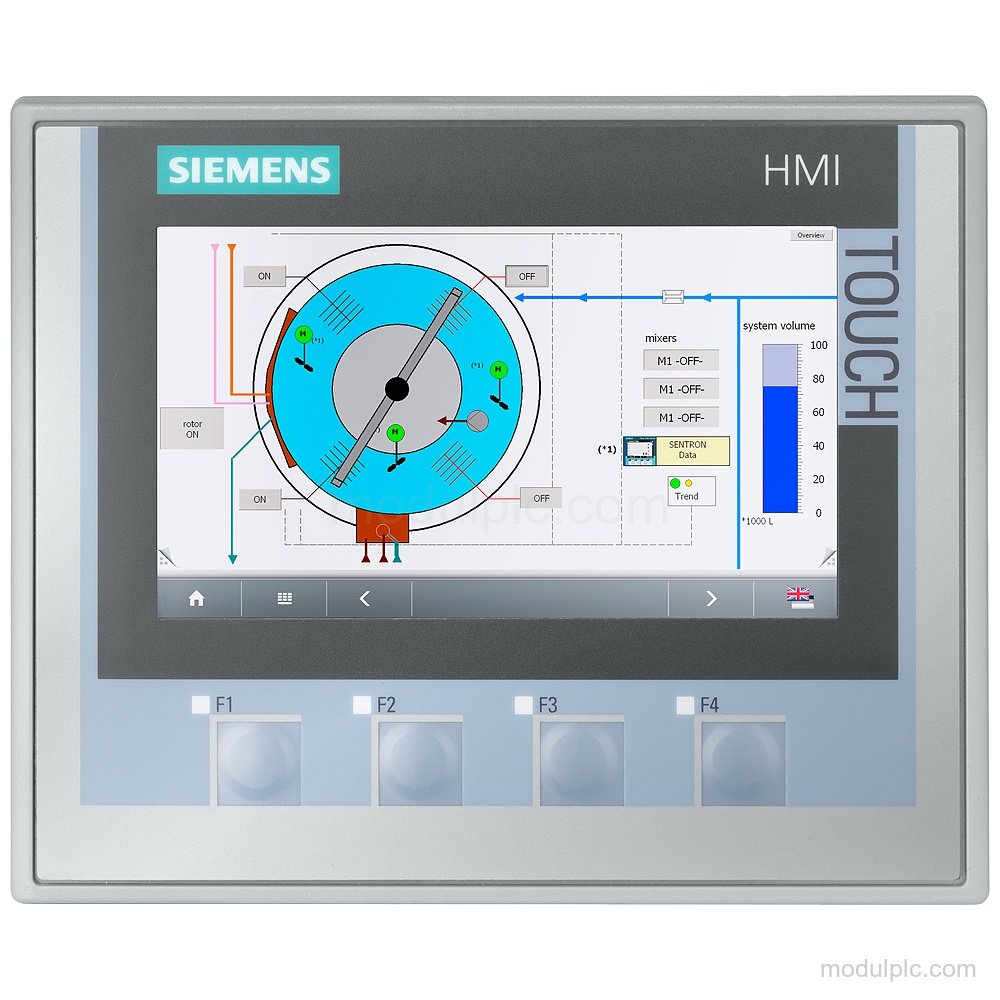

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KTP400 Comfort |
| Based on | 6AV2124-2DC01-0AX0 |
| Display | 4.3 in TFT, 480 pixel x 272 pixel |
| Touch operation | Analog-resistive |
| Function keys | 4; 4 with LEDs |
| Industrial Ethernet interfaces | 1 |
| USB interface | 1; USB 2.0 |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Mounting | Vertical; portrait and landscape formats possible |
| Protection | IP65 at the front; IP20 at the rear |
| Conformal coating | Class 2 for high reliability |
Applications
- Message and alarm handling: The HMI provides a message indicator, an alarm system with buffer and acknowledgment, 32 alarm classes, bit and analog messages, and an alarm buffer with 256 entries.
- Process value display and input: The HMI supports process value display and process value default input, with limit values, I/O fields, and image selection by PLC.
- Recipe management: The HMI provides recipe management with 100 recipes, 200 data records per recipe, and 200 entries per data record.
Key Features
- Display and touch operation: The 4.3 in TFT display has 480 pixel horizontal resolution, 272 pixel vertical resolution, and analog-resistive touch operation.
- Function keys and onscreen keyboards: The panel has 4 function keys, 4 function keys with LEDs, and numeric and alphanumeric onscreen keyboards.
- Industrial communication interfaces: Interfaces include 1 Industrial Ethernet, 1 RS 422 / 485 combined interface, 1 USB 2.0 interface, 1 USB Mini B interface, and 2 SD card slots.
- Protocols: Supported protocols include PROFINET, PROFINET IO, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS.
- Supply and installation: Supply is 24 V DC with a permissible range of 19.2 V to 28.8 V. Mounting is vertical; portrait and landscape formats are possible, and wall/direct mounting is not available.
- Protection and conformal coating: Protection is IP65 at the front and IP20 at the rear. The conformal coating is Class 2 for high reliability, with Type 1 protection against fouling.
Frequently Asked Questions
1. What type of display does Siemens 6AG1124-2DC01-4AX0 have?
It has a 4.3 in TFT analog-resistive touch display with 480 pixel x 272 pixel resolution.
2. How many function keys and interfaces does the HMI have?
It has 4 function keys, 1 Industrial Ethernet interface, 1 RS 422 / 485 combined interface, 1 USB 2.0 interface, and 2 SD card slots.
3. What supply voltage does this SIPLUS HMI use?
Supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. What should be verified before requesting a quote for this configuration?
Verify the 6AG1124-2DC01-4AX0 order number, vertical mounting requirements, available mounting cutout of 124 mm x 100 mm, and the required communication protocols.
