Product Overview
Technical Summary
| Parameter | Value |
|---|---|

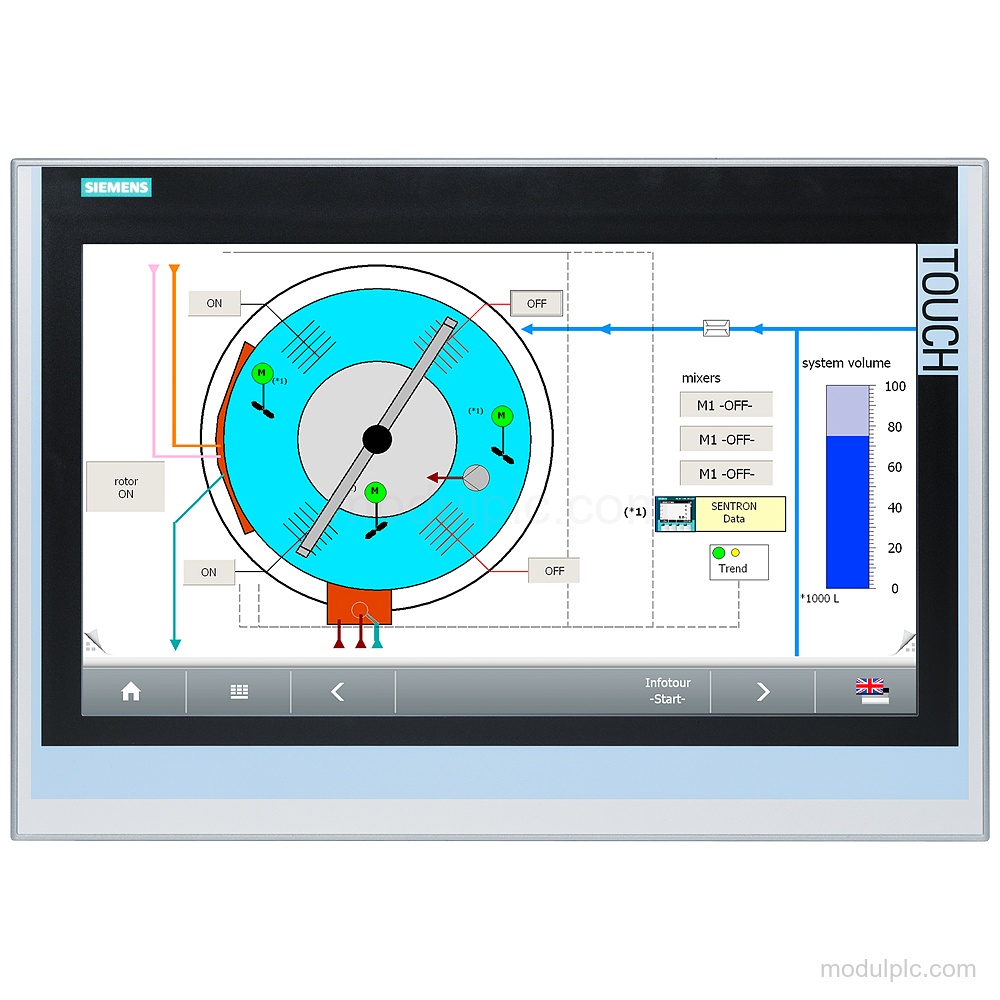

| Product type | TP1900 Comfort |
| Display | 18.5 in TFT, 1 366 x 768 pixel, 16 777 216 colors |
| Touch operation | Analog-resistive |
| Industrial Ethernet | 2 ports (switch) + independent port |
| RS 422 / 485 | 1 combined interface |
| Protocols | PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Configuration memory | 24 Mbyte |
| Front protection | IP65; NEMA Enclosure Type 4 and Type 4x |
| Mounting | Vertical; portrait and landscape formats possible |
| Housing front | Aluminum |
| Mounting cutout | 465 mm x 319 mm |
Applications
- Process value display and input: The HMI supports process value display and process value default input.
- Alarm handling: The HMI supports message indication and alarm systems including buffering and acknowledgment.
- Recipe management: The HMI supports recipe management with 500 recipes, 1 000 data records per recipe, and 2 000 entries per data record.
- Industrial communication: The HMI supports data transfer and process coupling through PROFINET, PROFIBUS DP, Ethernet, MPI, and USB.
Key Features
- Widescreen touch display: The TP1900 Comfort has an 18.5 in TFT display with 1 366 x 768 pixel resolution, 16 777 216 colors, and analog-resistive touch operation.
- Industrial network interfaces: Interfaces include 2 industrial Ethernet ports on an integrated switch plus 1 independent port, and 1 combined RS 422 / 485 interface.
- Protocol support: Supported protocols include PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- DC supply and mounting: The device has a 24 V DC rated supply value with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape formats possible.
- Protection and conformal coating: Protection is IP65 at the front and IP20 at the rear. The front has NEMA Enclosure Type 4 and Type 4x protection; the printed circuit board assemblies have conformal coating.
- Configuration and process functions: The HMI supports message indication, alarm systems with buffering and acknowledgment, process value display and input, recipe management, and WinCC Comfort (TIA Portal) V14 SP1 HSP and higher.
Frequently Asked Questions
1. What network interfaces does Siemens 6AG1124-0UC02-4AX1 provide?
It has 2 industrial Ethernet ports on an integrated switch plus 1 independent port, and 1 combined RS 422 / 485 interface.
2. Which protocols are supported by the TP1900 Comfort?
Supported protocols include PROFINET, PROFINET IO, IRT, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage does this SIPLUS HMI require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the Siemens 6AG1124-0UC02-4AX1 mounted and protected?
Mounting is vertical, with portrait and landscape formats possible. The front is IP65 with NEMA Enclosure Type 4 and Type 4x protection; the rear is IP20.
