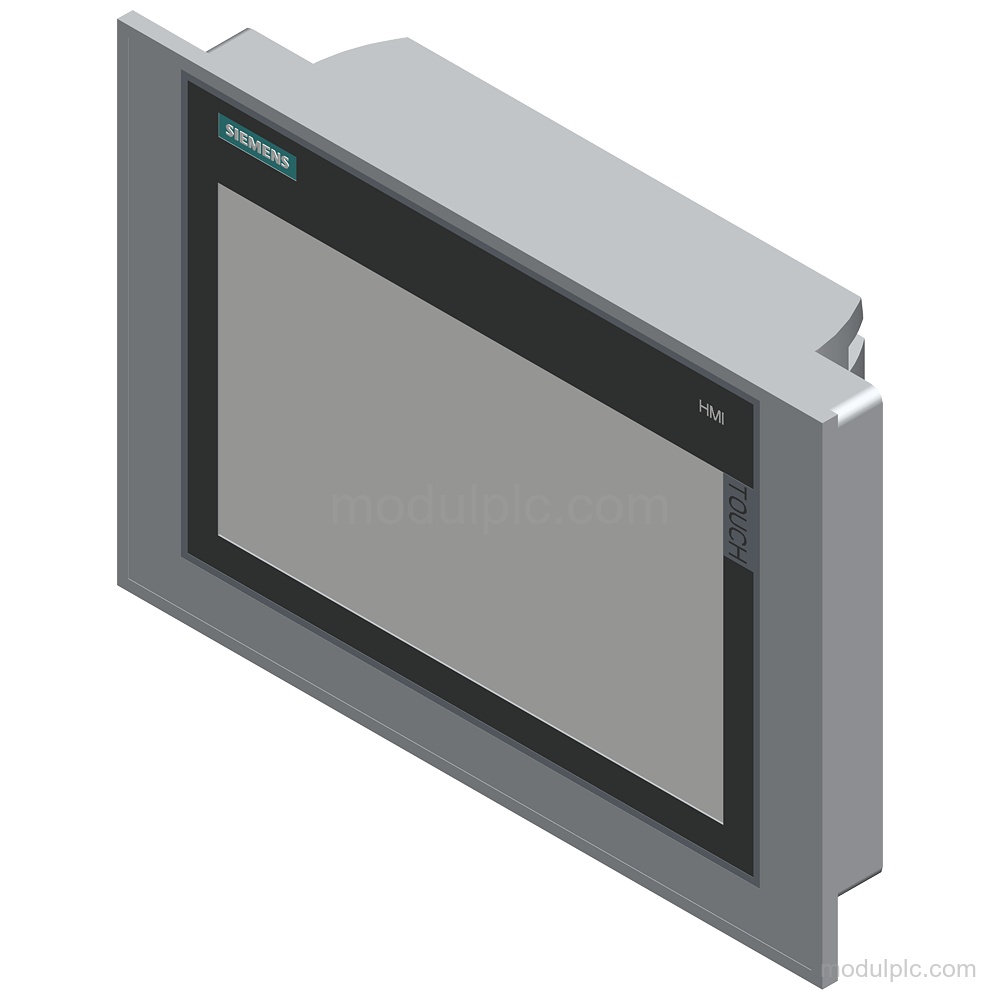

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | TP900 Comfort |
| Based on | 6AV2124-0JC01-0AX0 |
| Display | 9 in TFT, 800 pixel × 480 pixel, 16 777 216 colors |
| Touch operation | Analog-resistive |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Industrial Ethernet | 1 interface; 2 ports (switch) |
| USB | 2 USB 2.0 interfaces; 1 USB Mini B, 5-pole |
| Protection | IP65 at the front; IP20 at the rear |
| Mounting | Vertical; portrait and landscape formats possible |
Applications
- Process value display and input: The source lists process value display as an output and process value default as possible as an input.
- Alarm and message handling: The source lists a message indicator and an alarm system including buffer and acknowledgment.
- Recipe management: The source lists recipe management with 300 recipes, 500 data records per recipe and 1 000 entries per data record.
- Industrial communication: The source lists communication through PROFINET, PROFIBUS, EtherNet/IP, MPI, OPC UA and Modbus interfaces or protocols.
Key Features
- Display and touch operation: 9 in TFT display with 800 pixel × 480 pixel resolution, 16 777 216 colors and analog-resistive touch operation.

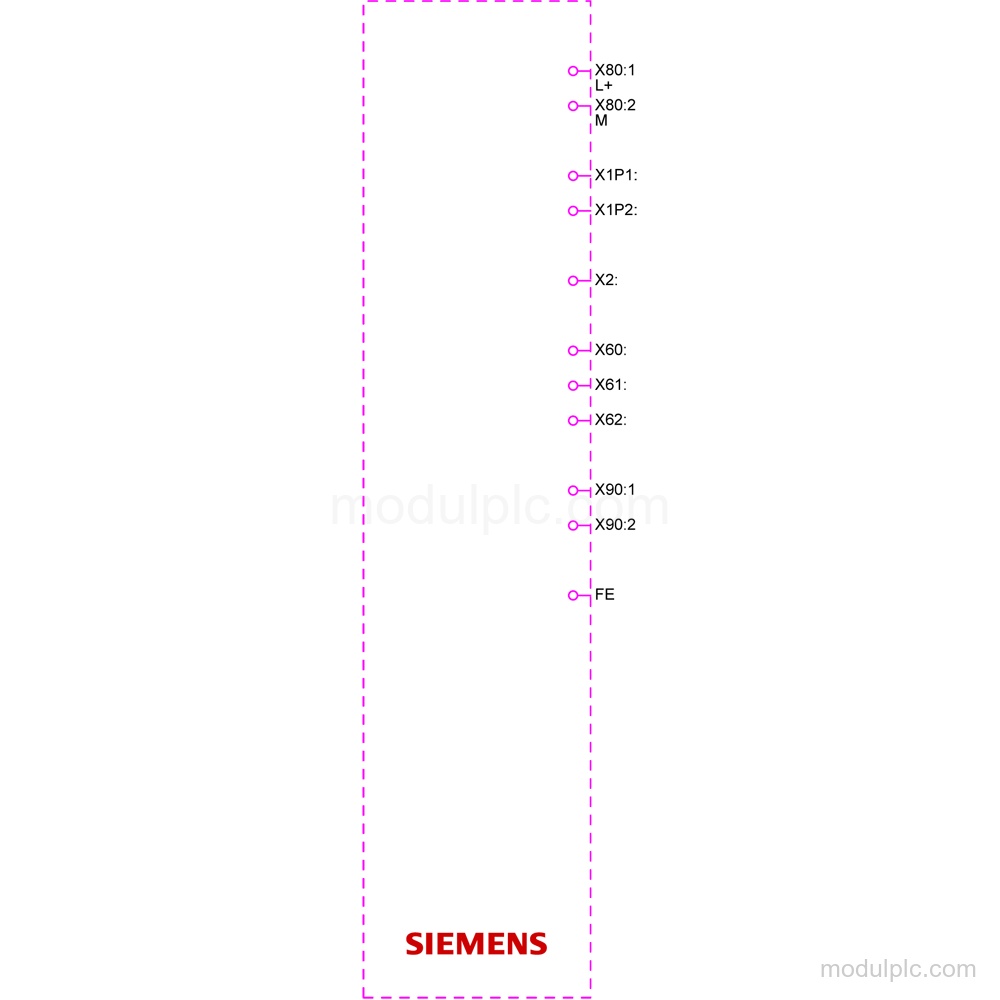

- Interfaces and protocols: 1 industrial Ethernet interface with 2 switch ports, 1 combined RS 422 / 485 interface and 2 USB 2.0 interfaces. PROFINET, PROFIBUS, EtherNet/IP, MPI, TCP/IP, DHCP, SNMP, DCP and LLDP are supported.
- Supply and power: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, 0.75 A rated current consumption and 18 W typical active power input.
- HMI functions: Message indicator, alarm system with buffer and acknowledgment, process value display and input, recipe management, 32 online/runtime languages and 32 languages per project.

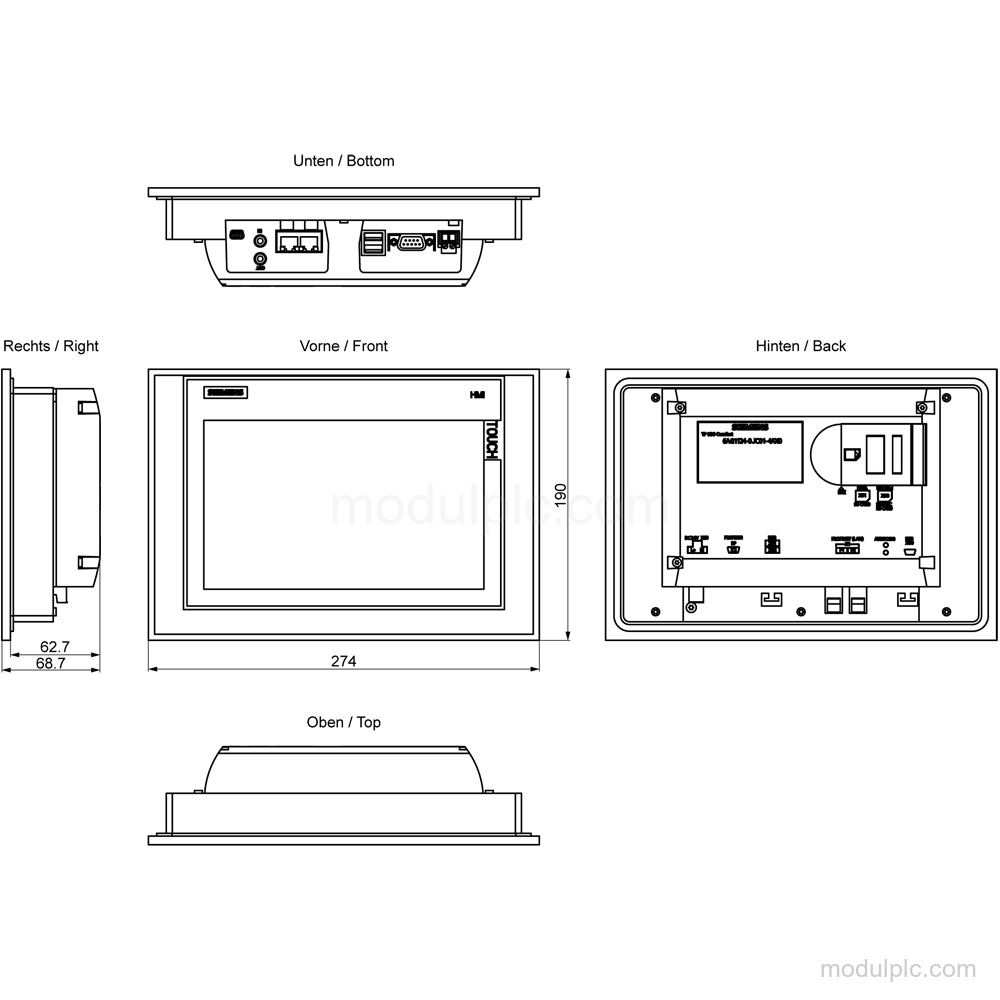

- Mounting and protection: Vertical mounting is supported, with portrait and landscape formats possible. Protection is IP65 at the front and IP20 at the rear.
- Conformal coating and lifecycle: Conformal coating is provided for high reliability, with Class 2 according to EN 61086 and Type 1 protection according to EN 60664-3. Product lifecycle: Announcement of product phase-out.
Frequently Asked Questions
1. What display and touch interface does Siemens 6AG1124-0JC01-4AX0 have?
It has a 9 in TFT display with 800 pixel × 480 pixel resolution, 16 777 216 colors and analog-resistive touch operation.
2. Which supply voltage and interfaces does this model use?
It uses 24 V DC, with a permissible range of 19.2 V to 28.8 V. Interfaces include 1 industrial Ethernet interface with 2 switch ports, 1 combined RS 422 / 485 interface and 2 USB 2.0 interfaces.
3. What mounting and protection details should be verified before inquiry?
The mounting position is vertical, and portrait and landscape formats are possible. Protection is IP65 at the front and IP20 at the rear; the maximum permissible angle of inclination without external is 35°.
