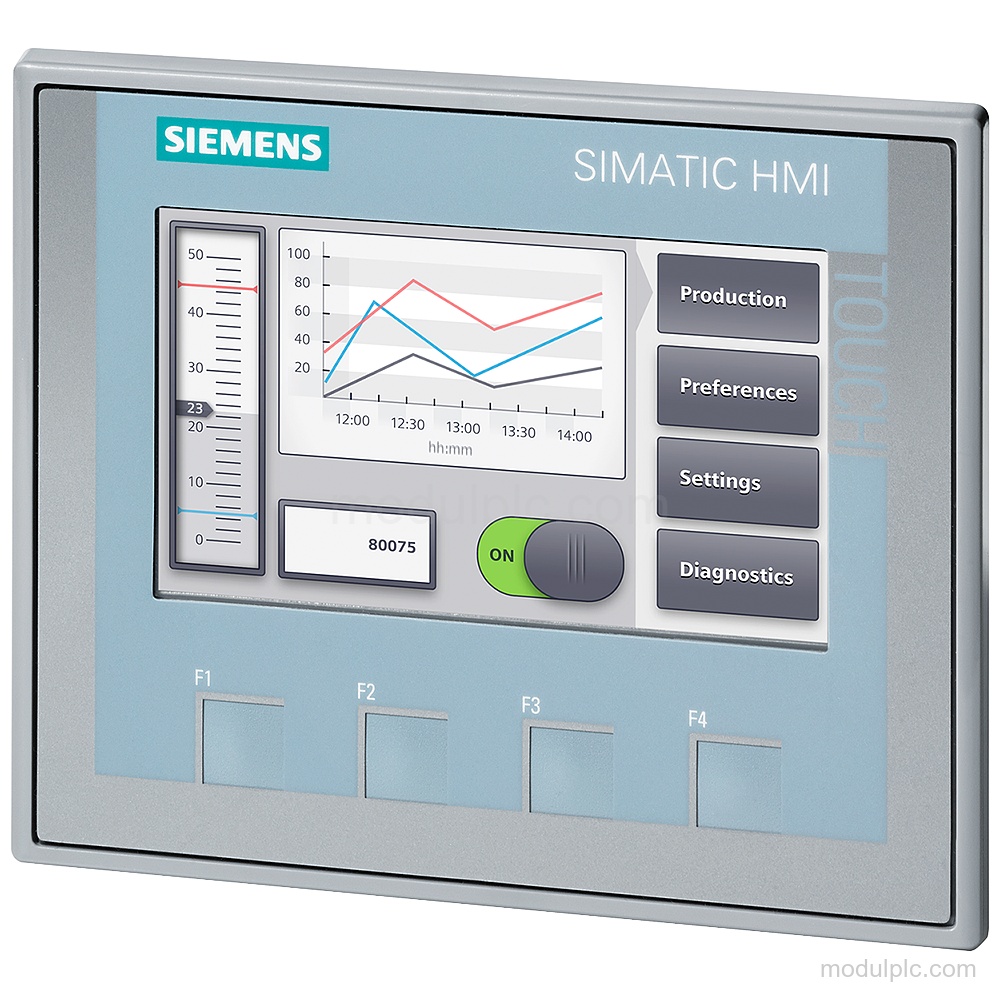

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KTP400 Basic color PN |
| Display | TFT widescreen display, LED backlighting; 480 × 272 pixel; 65 536 colors |
| Touch operation | Analog-resistive touch screen |
| Function keys | 4 |
| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; DCP; LLDP; MODBUS TCP/IP |
| USB interface | 1; up to 16 GB |
| Supply | 24 V DC; 19.2 V to 28.8 V |
| Active power input | 3 W, typical |
| Front/rear protection | IP65 / IP20 |
| Mounting cutout | 124 mm × 100 mm |
Applications
- Process value display and input: The panel supports process value display as output and process value default as input.
- Alarm and message handling: The panel supports an alarm system with buffer and acknowledgment, message indicators, alarm classes and message buffering.
- Process coupling: The panel supports process coupling with S7-1200, S7-1500, S7-200, S7-300/400, LOGO!, WinAC, SINUMERIK, SIMOTION, Allen Bradley, Mitsubishi and Modicon systems as listed.
Key Features
- TFT widescreen display: The display has LED backlighting, 480 × 272 pixel resolution and 65 536 colors.
- Touch and function keys: The panel has analog-resistive touch operation, 4 function keys, an onscreen numeric keyboard and an onscreen alphanumeric keyboard.
- Network and USB interfaces: It has 1 industrial Ethernet interface, 1 USB interface supporting up to 16 GB, PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP and MODBUS TCP/IP.
- 24 V DC supply: The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V and typical active power input of 3 W.
- Mounting and protection: The panel mounts vertically or in portrait or landscape format; the maximum permissible inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
- Conformal coating: The printed circuit board assemblies have conformal coating, Class A according to IPC-CC-830A, and Class 2 for high reliability according to EN 61086.
Frequently Asked Questions
1. What display and input functions does 6AG1123-2DB03-2AX0 have?
It has a TFT widescreen display with 480 × 272 pixel resolution and 65 536 colors, analog-resistive touch operation, 4 function keys, and onscreen numeric and alphanumeric keyboards.
2. Which interfaces and protocols are available?
It has 1 industrial Ethernet interface and 1 USB interface supporting up to 16 GB. Supported protocols include PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP and MODBUS TCP/IP.
3. What supply and mounting details should be verified before inquiry?
Supply is 24 V DC with a permissible range of 19.2 V to 28.8 V. The mounting cutout is 124 mm × 100 mm, mounting depth is 34.9 mm, and the maximum permissible inclination without external ventilation is 35°.
