Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | RJ45 plug-in connector |
| Product brand | SIPLUS |
| Transfer rate | 10, 100 Mbit/s |
| Electrical connections | 4 |
| Electrical connection type | Integrated cut-and-clamp contacts for 4-wire TP FC installation cable |
| Cable connection system | FC connection system for IE FC cable 2×2 |
| Cable outlet | 90° |
| Enclosure | Rugged metal enclosure |
| Operating temperature | 70 … -40 °C in horizontal mounting position |
| Storage and transport temperature | 70 … -40 °C |
| Relative humidity | 100 %; RH incl. condensation / frost, horizontal installation |
Applications
- Industrial Ethernet connection: Provides an RJ45 plug-in connection for Industrial Ethernet FC TP cables.
Key Features
- Industrial Ethernet transfer rate: Supports 10, 100 Mbit/s.
- Electrical connections: Provides 4 electrical connections for Industrial Ethernet FC TP cables.
- FC cable connection: Has integrated cut-and-clamp contacts for 4-wire TP FC installation cable and an FC connection system for IE FC cable 2×2.

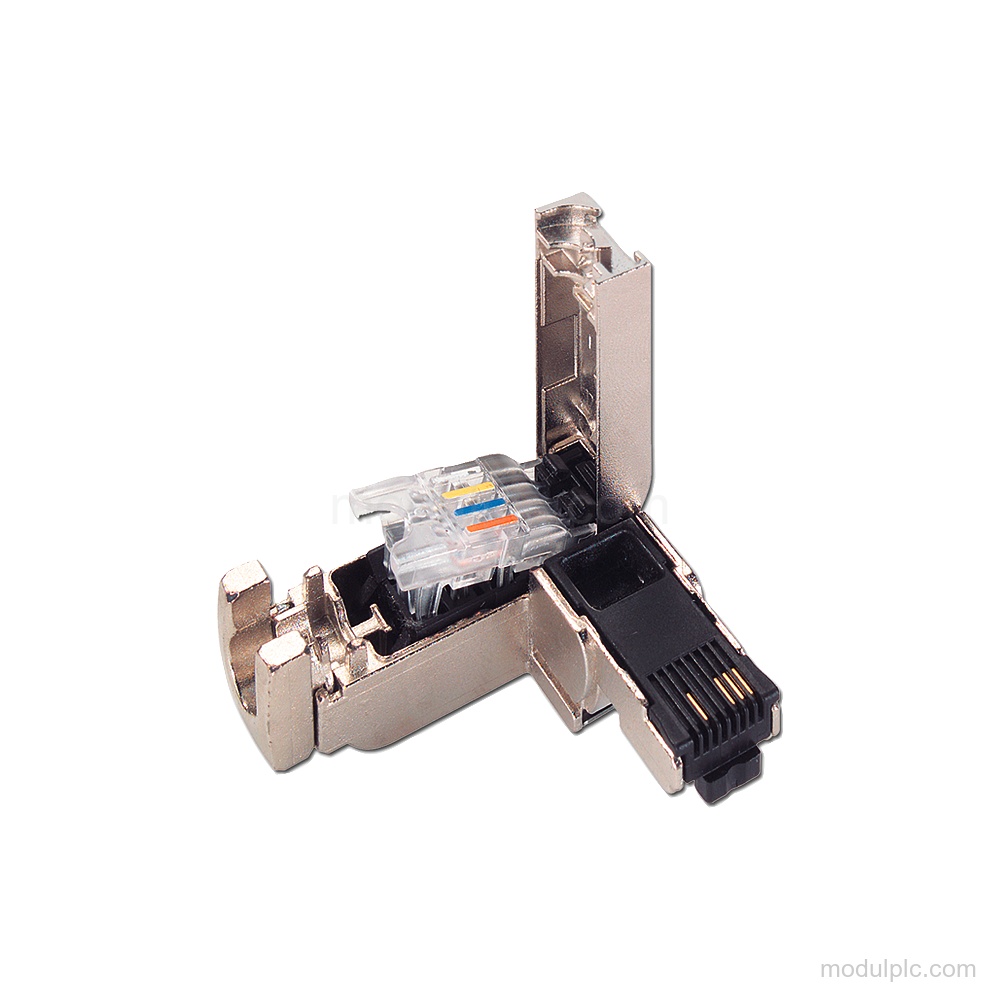

- Mechanical design: RJ45 plug-in connector with a 90° cable outlet and rugged metal enclosure.
- Conformal coating: Has a protective coating of Class PC2 according to EN 50155:2019 for electronic devices in railway applications.
- Operating temperature: Supports 70 … -40 °C in a horizontal mounting position during operation.
Frequently Asked Questions
1. What is the function of Siemens 6AG1901-1BB20-7AA0?
It is an RJ45 plug-in connector for Industrial Ethernet.
2. What transfer rate does the connector support?
It supports 10, 100 Mbit/s.
3. How many electrical connections are provided?
It provides 4 electrical connections for Industrial Ethernet FC TP cables.
4. What cable connection does it use?
It has integrated cut-and-clamp contacts for 4-wire TP FC installation cable and an FC connection system for IE FC cable 2×2.
5. What should be verified before inquiry?
Verify the 90° cable outlet, horizontal mounting position, operating temperature of 70 … -40 °C, and the required FC cable connection.
