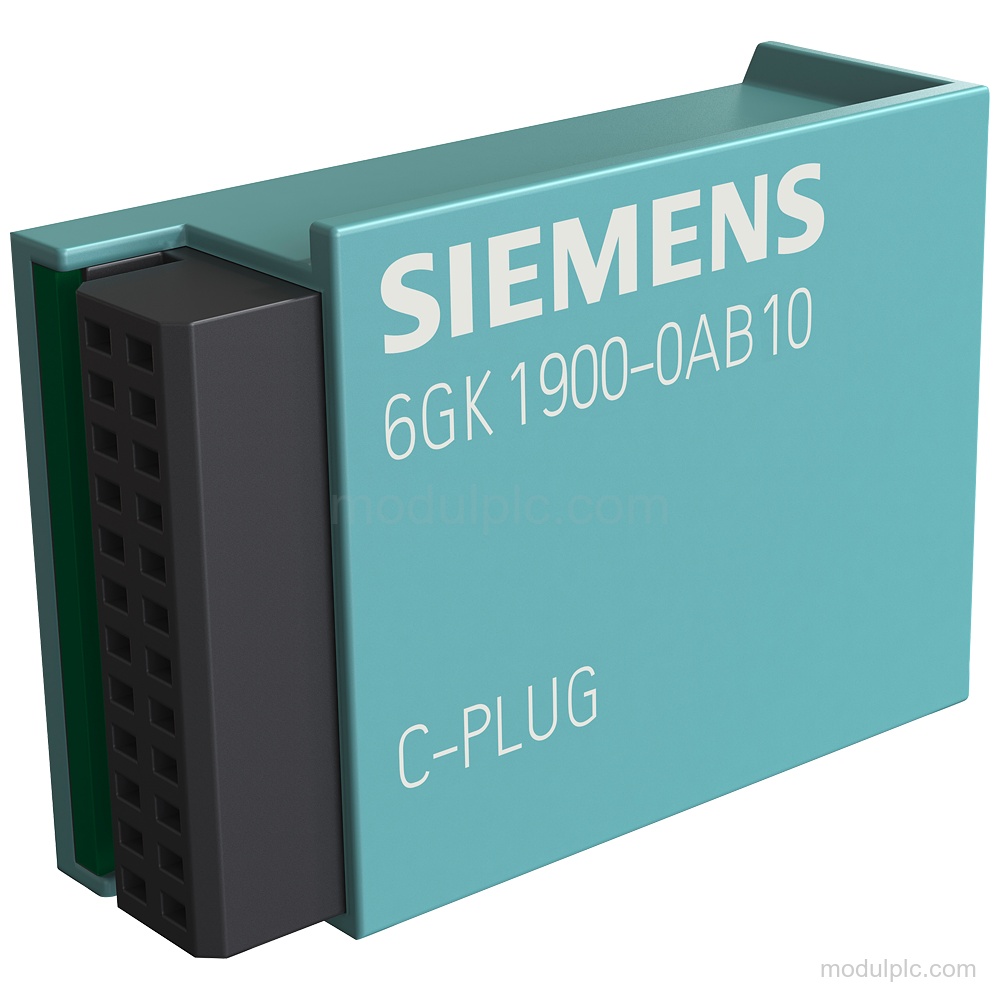

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | C-Plug |
| Based on | 6GK1900-0AB10 |
| Total memory capacity | 256 Mbyte |
| Operating temperature | -40 °C to 75 °C |
| IP degree of protection | IP20 |
| Installation altitude above sea level, max. | 5 000 m |
Applications
- Device replacement: Supports simple device replacement in case of fault through removable configuration, engineering and application data storage.
- Data recording: Records configuration, engineering and application data.
Key Features
- Removable data storage: Removable medium for recording configuration, engineering and application data and for simple device replacement in case of fault.
- Memory capacity: Total memory capacity: 256 Mbyte.
- Conformal coating: Conformal coating with Class 2 for high reliability according to EN 61086.
- Operating temperature: Ambient temperature during operation: -40 °C to 75 °C.
- Protection: IP degree of protection: IP20.
- Compact dimensions: Dimensions: 24.3 mm width, 17 mm height and 8.1 mm depth; weight, approx. 0.5 g.
Frequently Asked Questions
1. What is the function of 6AG1900-0AB10-7AA0?
It is a removable data storage medium for recording configuration, engineering and application data and for simple device replacement in case of fault.
2. How much memory does the C-Plug have?
The total memory capacity is 256 Mbyte.
3. What are the operating temperature and protection rating?
The ambient temperature during operation is -40 °C to 75 °C, and the IP degree of protection is IP20.
4. What are the dimensions and weight?
The dimensions are 24.3 mm width, 17 mm height and 8.1 mm depth; weight is approximately 0.5 g.
5. What should be verified before requesting a quote?
Verify the exact model, the required C-Plug slot and the intended configuration, engineering or application data use.
