Product Overview
Technical Summary
| Parameter | Value |
|---|---|

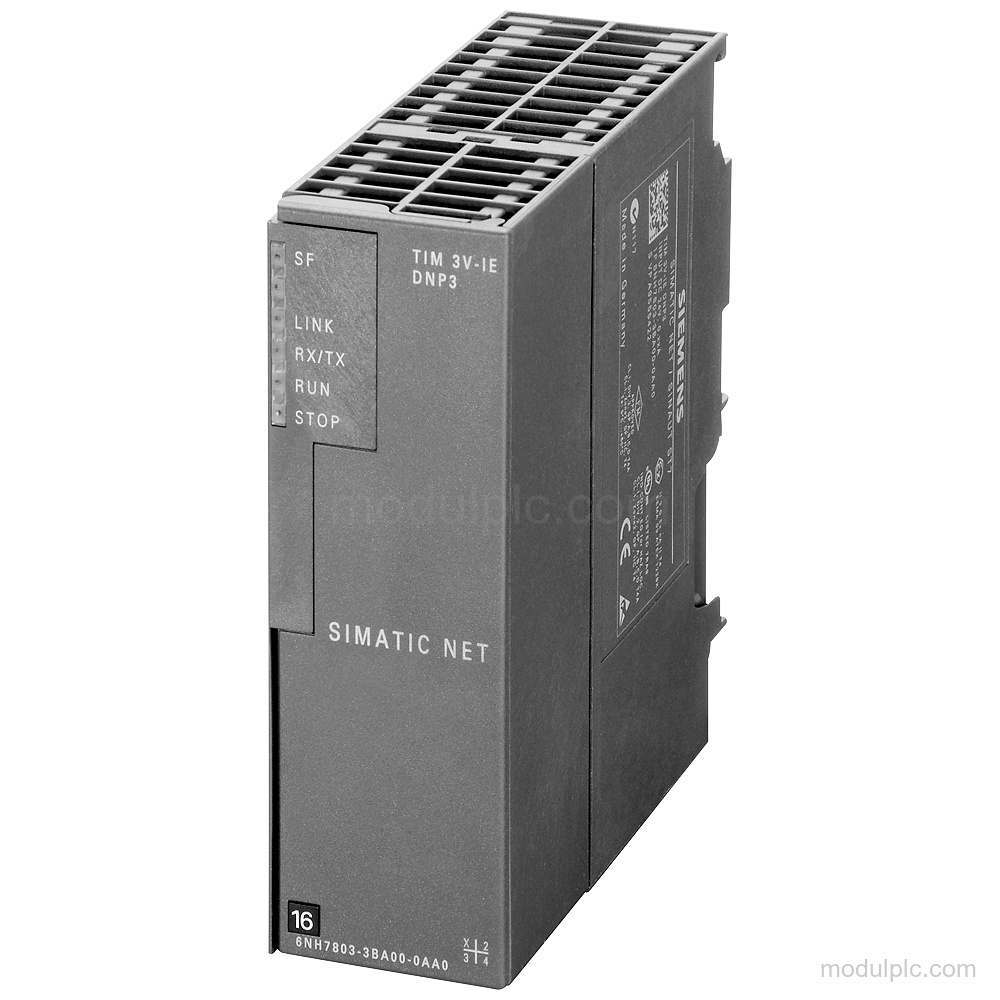

| Module type | TIM 3V-IE DNP3 communications module |
| System context | SIMATIC S7-300 |
| Communication interface | 1 interface according to Industrial Ethernet; RS232 interface |
| Supported protocol | DNP3 |
| Power supply | DC; 1 connection via 2-pole plugable terminal block |
| Maximum consumed current | 0.2 A from external supply voltage at 24 V DC |
| Power loss | 5.8 W |
| Module format | Compact module S7-300 single width |
| Protection class | IP20 |
| Operating ambient temperature | -25 … +70 °C |
Applications
- DNP3 communication: Supports DNP3 communication for node station, substation, and TIM control center use.
- Connection-loss data buffering: Buffers 64,000 data points with one master if the connection is aborted.
- S7 communication: Supports up to 3 connections for S7 communication, only via LAN, including up to 2 PG connections.
Key Features
- DNP3 communications module: TIM 3V-IE DNP3 supports the DNP3 protocol and provides data buffering for 64,000 data points with one master when the connection is aborted.
- Interfaces and connections: The module has 1 interface according to Industrial Ethernet and 1 power-supply connection with a 2-pole plugable terminal block.
- S7-300 compact format: Compact module S7-300 single width; dimensions are 40 mm wide, 125 mm high, and 120 mm deep.
- DC supply and consumption: Supply voltage type: DC. Maximum consumed current is 0.2 A from an external supply voltage at 24 V DC; power loss is 5.8 W.
- Environmental protection: Operating ambient temperature is -25 … +70 °C. Protection class is IP20, with conformal coating, class A.
- Product status: Product cancellation. The module is a spare part and has SIPLUS conformal coating.
Frequently Asked Questions
1. What function does 6AG1803-3BA00-7AA0 provide?
It is a SIPLUS NET TIM 3V-IE DNP3 communications module for SIMATIC S7-300 with an RS232 interface and DNP3 support.
2. How many interfaces and power connections does the module have?
It has 1 interface according to Industrial Ethernet and 1 power-supply connection using a 2-pole plugable terminal block.
3. What supply and current consumption should be verified?
The supply voltage type is DC, and maximum consumed current is 0.2 A from an external supply voltage at 24 V DC.
4. What are the module dimensions and mounting format?
It is a Compact module S7-300 single width measuring 40 mm wide, 125 mm high, and 120 mm deep.
5. Does the configuration include a C-PLUG?
It is without C-PLUG.
