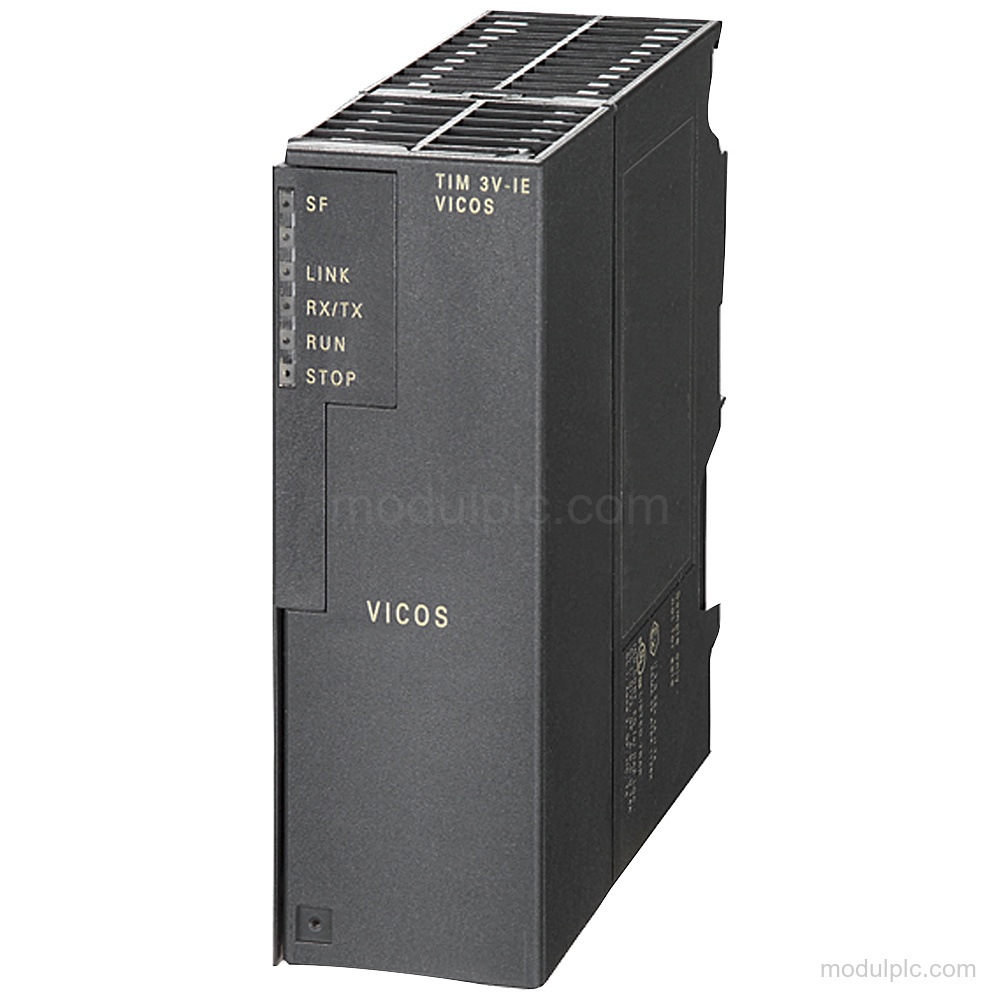

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SINAUT ST7, TIM 3V-IE |
| RS-232 interfaces | 1 |
| Industrial Ethernet interfaces | 1 |
| Industrial Ethernet transfer rate | 10 … 100 Mbit/s |
| RS-232 transfer rate | 50 … 38400 bit/s |
| RS-232 connector | 9 pin Sub-D-connector (RS232) |
| Industrial Ethernet connector | RJ45 port |
| Supply voltage | 24 V DC |
| Supply voltage range | 20.4 … 28.8 V |
Applications
- SINAUT communication via serial network: Provides SINAUT communication through one RS-232 interface via a classic wide area network.
- SINAUT communication via IP network: Provides SINAUT communication through one RJ45 interface via an IP-based WAN or LAN.
Key Features
- SINAUT communication module: SINAUT ST7, TIM 3V-IE module for SINAUT ST1 and SINAUT ST7 protocols.
- RS-232 interface: One RS-232 interface with a 9 pin Sub-D-connector for external data transmission; maximum cable length is 6 m.
- Industrial Ethernet interface: One Industrial Ethernet interface with an RJ45 port and a transfer rate of 10 … 100 Mbit/s.
- Power supply: DC supply with a rated value of 24 V and a supply range of 20.4 … 28.8 V; power loss is 5.8 W.
- Compact S7-300 format: Compact module S7-300 single width, measuring 40 mm wide, 125 mm high, and 120 mm deep.
- Conformal coating and IP20: Conformal coating, class A; protection class IP20. C-PLUG is not included.
Frequently Asked Questions
1. What communication interfaces does the 6AG1800-3BA00-7AA0 have?
It has one RS-232 interface with a 9 pin Sub-D-connector and one Industrial Ethernet interface with an RJ45 port.
2. What transfer rates are supported?
Industrial Ethernet supports 10 … 100 Mbit/s, while RS-232 supports 50 … 38400 bit/s.
3. What supply voltage does this module require?
The module uses DC supply with a rated value of 24 V and a supply range of 20.4 … 28.8 V.
4. What are the module dimensions?
The compact S7-300 single-width module is 40 mm wide, 125 mm high, and 120 mm deep.
5. Is a C-PLUG included?
It is without C-PLUG.
