Product Overview
Technical Summary
| Parameter | Value |
|---|---|

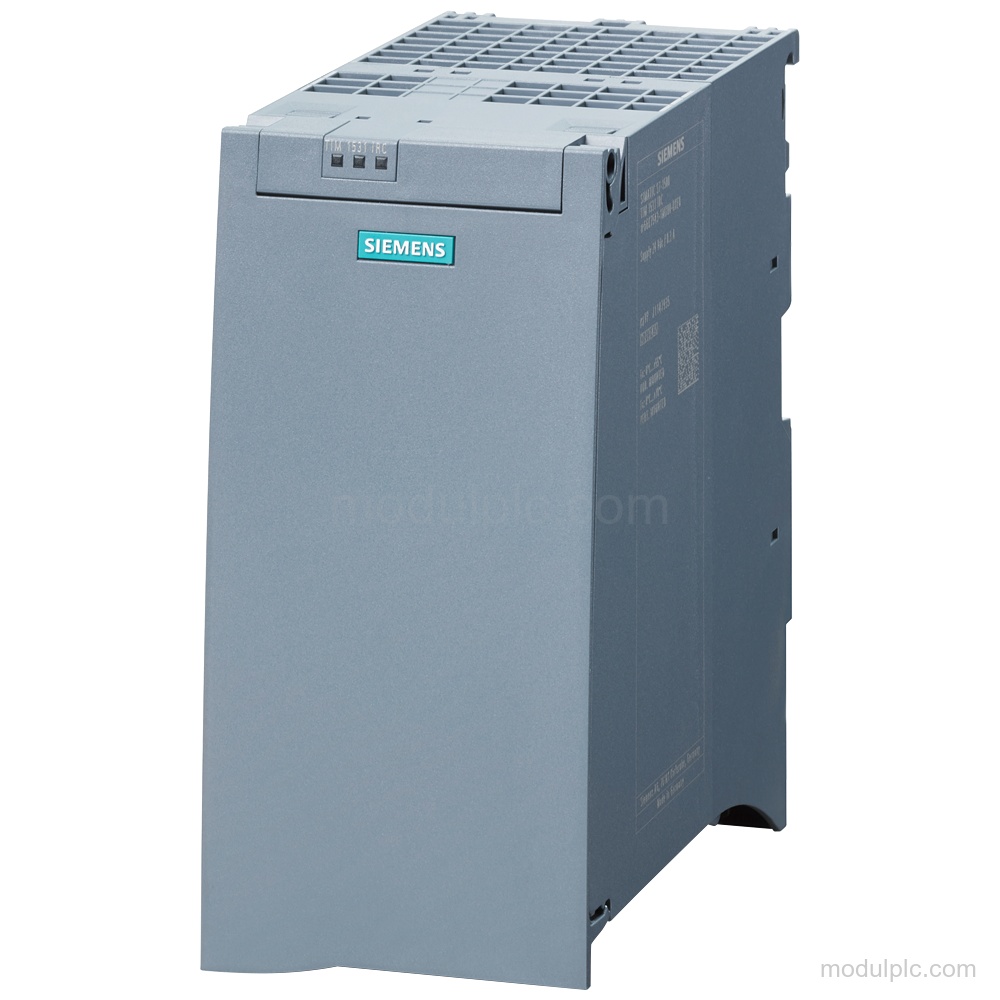

| Module type | SIPLUS TIM 1531 IRC communications module |
| Industrial Ethernet interfaces | 3 |
| Industrial Ethernet connection | RJ45 port |
| Serial interface | 1; 9-pin Sub-D, RS-232 switchable to RS-485 |
| Supply voltage | 24 V DC; 20.4 … 28.8 V |
| S7-1500 rail mounting | Yes |
| Protection class | IP20 |
| Operating temperature, horizontal busbars | -40 … +70 °C |
| Conformal coating | Yes; class A |
Applications
- IP-based communication: Communication via IP-based WAN and LAN networks.
- SINAUT telecontrol communication: Communication using SINAUT ST7, DNP3, and IEC 60870-5-101/104 protocols.
- Remote configuration and diagnostics: Remote firmware update, remote configuration, and web-based diagnostics.
Key Features
- Communications module: SIPLUS TIM 1531 IRC for SIMATIC S7-1500, S7-400, and S7-300 with SINAUT ST7.
- IP network interfaces: 3 RJ45 interfaces for communication via IP-based WAN and LAN networks.
- Serial interface: 1 9-pin Sub-D connection for external data transmission, with RS-232 switchable to RS-485.
- Transfer rates: 1st interface: 10 … 1000 Mbit/s; 2nd and 3rd interfaces: 10 … 100 Mbit/s; RS-232: 300 … 115200 bit/s.
- Supply and mounting: 24 V DC supply; 2-pole pluggable terminal block; S7-1500 rail mounting.
- Extreme-condition design: Conformal coating, -40 … +70 °C for horizontally arranged busbars during operation, and IP20 protection.
Frequently Asked Questions
1. How many Industrial Ethernet interfaces does Siemens 6AG1543-1MX00-7XE0 have?
It has 3 Industrial Ethernet interfaces with RJ45 ports. The 1st interface supports 10 … 1000 Mbit/s, while the 2nd and 3rd support 10 … 100 Mbit/s.
2. Which serial connection is provided?
It has 1 9-pin Sub-D connection for external data transmission. The interface is RS-232 switchable to RS-485.
3. What supply and mounting details should be verified?
Supply is 24 V DC, with a 20.4 … 28.8 V range and a 2-pole pluggable terminal block. S7-1500 rail mounting is supported; 35 mm DIN-rail and S7-300 rail mounting are not.
