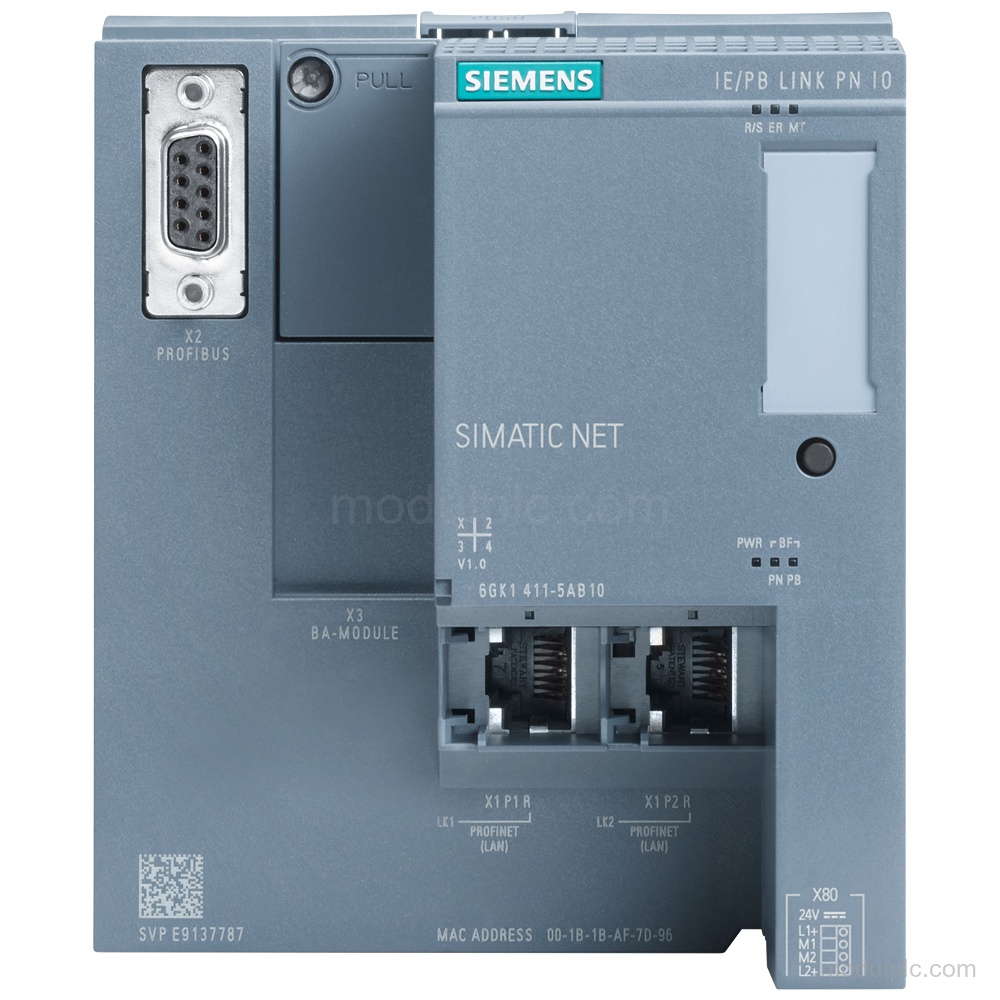

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Gateway function | Gateway between Industrial Ethernet and PROFIBUS; PROFINET IO device functionality |
| Ethernet transmission rate | 10 … 100 Mbit/s |
| PROFIBUS transmission rate | 0.0096 … 12 Mbit/s |
| Industrial Ethernet connections | 2; RJ45 port onboard or BusAdapter |
| PROFIBUS connection | 1; 9-pin Sub-D socket (RS 485) |
| Supply | DC, 24 V; relative positive tolerance 20 %, relative negative tolerance 15 % |
| Supported protocols | PROFINET IO, MRP, NTP, SNMP v1, DCP, LLDP |
| Mounting and protection | 35 mm DIN-rail mounting; IP20 |
Applications
- Industrial Ethernet–PROFIBUS gateway: Connects Industrial Ethernet and PROFIBUS as a gateway and provides PROFINET IO functionality.
- Data and time routing: Supports S7 routing, PROFIBUS data set routing, ring redundancy, and pass-on of time synchronization.
Key Features
- Gateway and routing functions: Gateway between Industrial Ethernet and PROFIBUS with PROFINET IO device functionality, S7 communication, data set routing, and pass-on time synchronization.
- Network transmission: The 1st interface supports 10 … 100 Mbit/s; the 2nd interface supports 0.0096 … 12 Mbit/s.
- Interfaces and connections: Two Industrial Ethernet electrical connections use an onboard RJ45 port or BusAdapter; one PROFIBUS connection uses a 9-pin Sub-D socket (RS 485). Power supply uses a 4-pole terminal block.
- Supported protocols and services: Supports PROFINET IO, MRP, NTP, SIMATIC time synchronization (SIMATIC Time), SNMP v1, DCP, LLDP, DPV0, and DPV1.
- Supply and installation: DC supply is 24 V with relative positive tolerance 20 % and relative negative tolerance 15 %. The module has an ET 200SP design and supports 35 mm DIN-rail mounting.
- Protection and environmental design: IP20 protection, conformal coating class A, and operation from -40 … +40 °C for vertical installation or -40 … +60 °C for horizontally arranged busbars.
Frequently Asked Questions
1. Which protocols and communication functions does 6AG1411-5AB10-2AA0 support?
It supports PROFINET IO, MRP, NTP, SIMATIC time synchronization (SIMATIC Time), SNMP v1, DCP, LLDP, DPV0, DPV1, S7 routing, and PROFIBUS data set routing.
2. What interfaces and connectors does the module have?
It has 2 Industrial Ethernet electrical connections with an onboard RJ45 port or BusAdapter, 1 PROFIBUS connection with a 9-pin Sub-D socket (RS 485), and a 4-pole terminal block for power supply.
3. What are the transmission rates?
The 1st interface supports 10 … 100 Mbit/s, and the 2nd interface supports 0.0096 … 12 Mbit/s.
4. What supply and mounting details should be verified before inquiry?
The supply is DC, 24 V, with relative positive tolerance 20 % and relative negative tolerance 15 %. The module supports 35 mm DIN-rail mounting and has IP20 protection.
