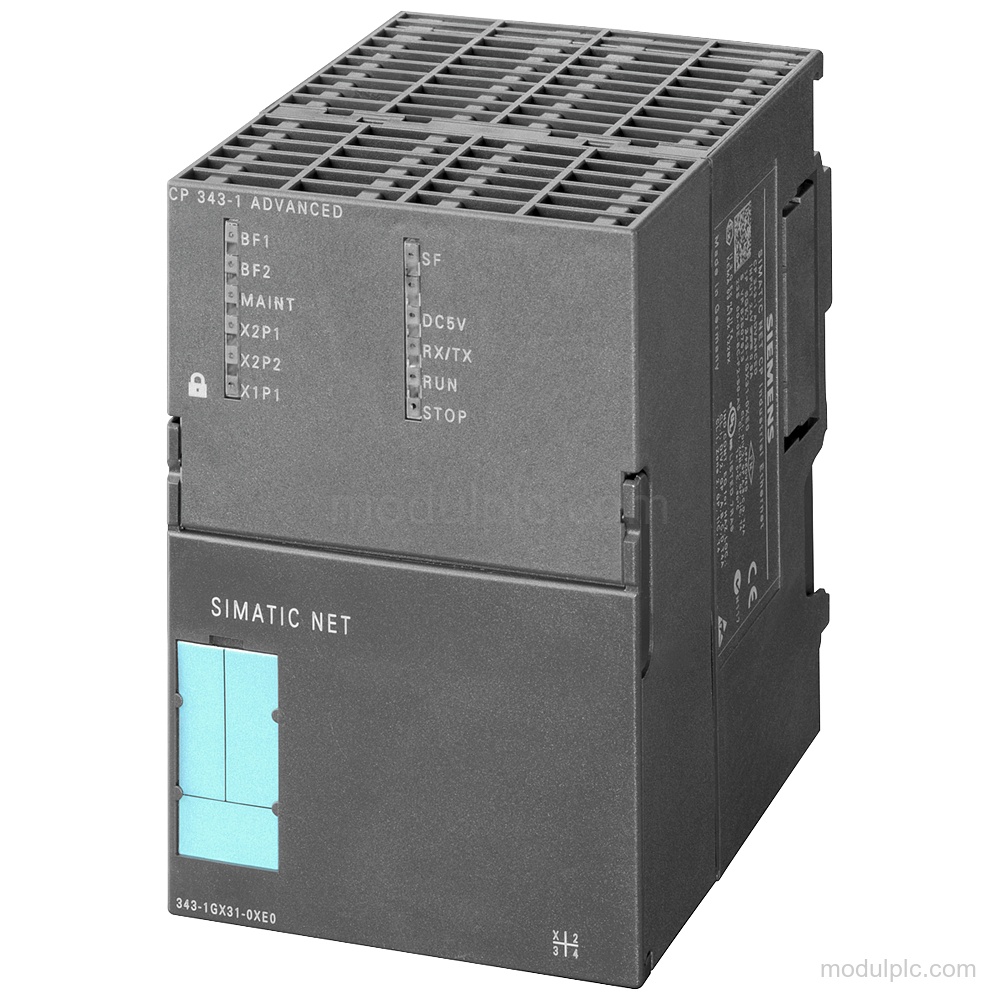

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | CP 343-1 ADVANCED |
| Industrial Ethernet interfaces | 3 |
| 1st interface transfer rate | 10 … 1000 Mbit/s |
| 2nd interface transfer rate | 10 … 100 Mbit/s |
| PROFINET IO controller | Yes; 128 operable PN IO devices and 128 operable PN IO IRT devices |
| PROFINET IO device | Yes; 32 submodules per PROFINET IO device |
| External rated supply | 24 V DC; relative positive tolerance 20 %, relative negative tolerance 15 % |
| Power connection | 2-pole pluggable terminal block |
| Mounting | S7-300 rail mounting |
| Protection class | IP20 |
Applications
- SIMATIC S7-300 CPU to Industrial Ethernet connection: Connects a SIMATIC S7-300 CPU to Industrial Ethernet.
- PROFINET IO control and device communication: Provides PROFINET IO controller and PROFINET IO device functions.
- PROFINET CBA communication: Supports communication with PROFINET CBA, including remote connection partners and connections.
- Industrial Ethernet redundancy and secure communication: Supports ring redundancy, MRP, firewall functions and VPN connections using IPSec.
Key Features
- Industrial Ethernet communication: The CP 343-1 Advanced connects a SIMATIC S7-300 CPU to Industrial Ethernet and supports PROFINET IO controller and PROFINET IO device functions.
- Three RJ45 interfaces: The module has 3 Industrial Ethernet interfaces: 1st interface at 10 … 1000 Mbit/s with 1 RJ45 port, and 2nd interface at 10 … 100 Mbit/s with 2 RJ45 ports.
- Communication protocols: Supported functions and protocols include TCP/IP, UDP, S7 communication, S5-compatible communication, PROFINET CBA, SNMP v1, SNMP v3, DCP, LLDP, MRP and NTP.
- Supply and connections: Supply is DC, with 5 V from the backplane bus and 24 V external rated supply. The power connection uses a 2-pole pluggable terminal block.
- Redundancy and security: The module has ring redundancy, redundancy manager, MRP, stateful inspection firewall, IPSec VPN connections, password protection for Web applications and IP-based ACL.
- Compact S7-300 mounting: The compact module measures 80 mm wide, 125 mm high and 120 mm deep, has IP20 protection and supports S7-300 rail mounting.
Frequently Asked Questions
1. What is the function of 6AG1343-1GX31-4XE0?
It connects a SIMATIC S7-300 CPU to Industrial Ethernet and provides PROFINET IO controller and PROFINET IO device functions.
2. How many Ethernet interfaces does the module have?
It has 3 interfaces: 1 RJ45 port at 10 … 1000 Mbit/s and 2 RJ45 ports at 10 … 100 Mbit/s.
3. What supply connections are provided?
The module uses 5 V from the backplane bus and a 24 V DC external rated supply through a 2-pole pluggable terminal block.
4. How is the module mounted?
It supports S7-300 rail mounting and has IP20 protection.
5. What is not included in the selected configuration?
The selected configuration is without a stated cable, connector accessory or additional component.
