Product Overview
Technical Summary
| Parameter | Value |
|---|---|

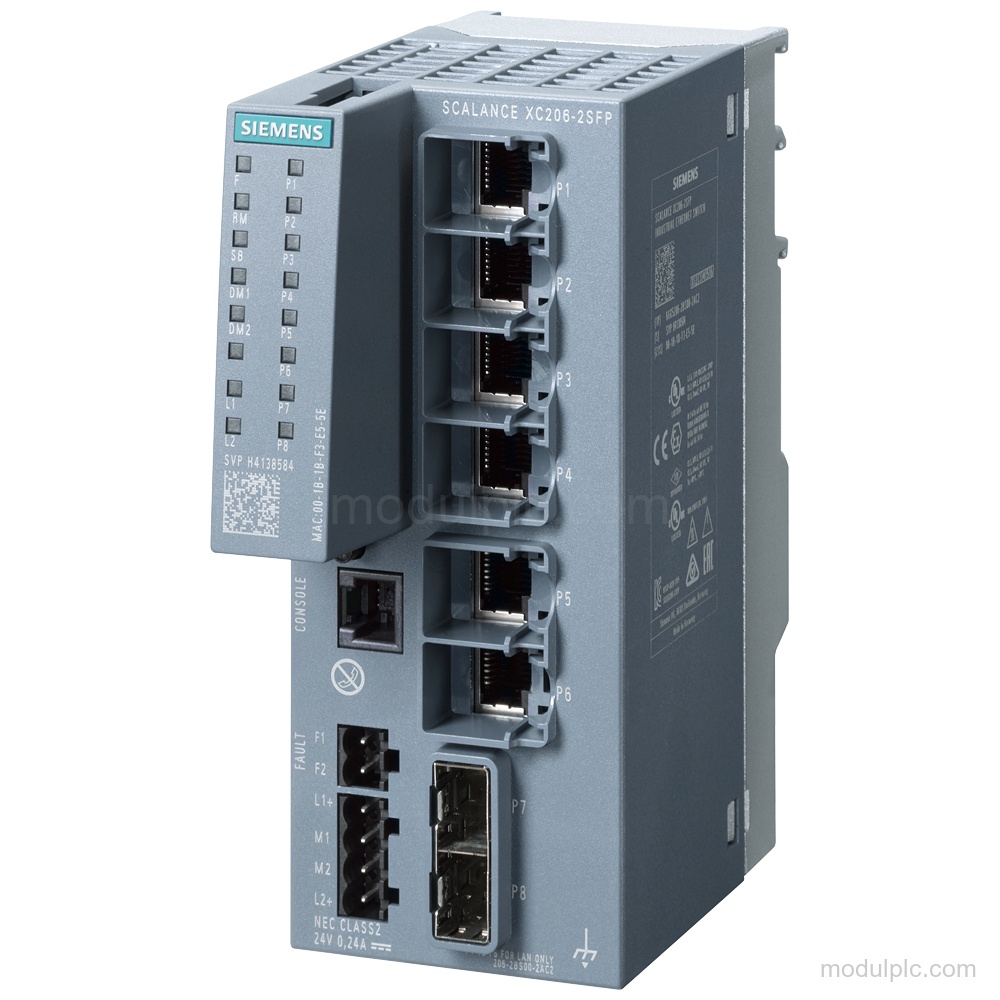

| Product type | SIPLUS SCALANCE XC206-2SFP manageable Layer 2 switch |
| RJ45 ports | 6; 10/100 Mbit/s |
| SFP connections | 2 |
| Transfer rates | 10, 100, 1000 Mbit/s |
| Operator-console connection | 1; RJ11 |
| Power supply | 24 V DC rated; 9.6 … 31.2 V |
| Rated power loss | 6 W |
| PROFINET IO diagnosis | Yes |
| EtherNet/IP | Yes |
| Operating ambient temperature | -40 … +70 °C during operation in horizontal mounting position |
| Mounting | 35 mm DIN rail, wall, S7-300 rail, S7-1500 rail |
Applications
- Network management: Provides managed Layer 2 switching with CLI and web-based management.
- Network diagnostics: Provides PROFINET IO diagnosis, port diagnostics, error statistics, and SysLog.
- Network redundancy: Supports ring redundancy, MRP, HRP, STP, RSTP, MSTP, and PRP operation in the PRP network.
Key Features
- Network connections: 6 10/100 Mbit/s RJ45 ports, 2 SFP connections, 1 RJ11 operator-console connection, 1 signaling-contact connection, and 1 power-supply connection.
- Transfer rates: Transfer rates: 10, 100, 1000 Mbit/s.
- Network management: Switch-managed with CLI, web-based management, MIB support, port mirroring, multiport mirroring, QoS according to DSCP, and Store & Forward switching.
- Protocols and diagnostics: Supports PROFINET IO diagnosis, PROFINET IO device H-Sync forwarding, PROFINET system redundancy, EtherNet/IP, SNMP v1, SNMP v2, SNMP v3, MRP, RSTP, MSTP, and port diagnostics.
- Supply and environment: 24 V DC rated supply voltage, 9.6 … 31.2 V supply-voltage range, 6 W rated power loss, and -40 … +70 °C ambient temperature during operation in horizontal mounting position.
- Mounting and protection: Supports 35 mm DIN-rail, wall, S7-300 rail, and S7-1500 rail mounting; protection class IP20; compact design with dimensions of 60 mm x 147 mm x 125 mm.
Frequently Asked Questions
1. How many RJ45 and SFP connections does the 6AG1206-2BS00-7AC2 have?
It has 6 10/100 Mbit/s RJ45 ports and 2 SFP connections.
2. Which transfer rates does the 6AG1206-2BS00-7AC2 support?
It supports transfer rates of 10, 100, and 1000 Mbit/s.
3. Does the 6AG1206-2BS00-7AC2 support PROFINET IO diagnosis?
Yes, PROFINET IO diagnosis is supported.
4. What supply voltage and power loss apply to the 6AG1206-2BS00-7AC2?
The rated supply voltage is 24 V DC, the supply-voltage range is 9.6 … 31.2 V, and the rated power loss is 6 W.
5. Which mounting methods are supported by the 6AG1206-2BS00-7AC2?
It supports 35 mm DIN-rail mounting, wall mounting, S7-300 rail mounting, and S7-1500 rail mounting.
