Product Overview
Technical Summary
| Parameter | Value |
|---|---|

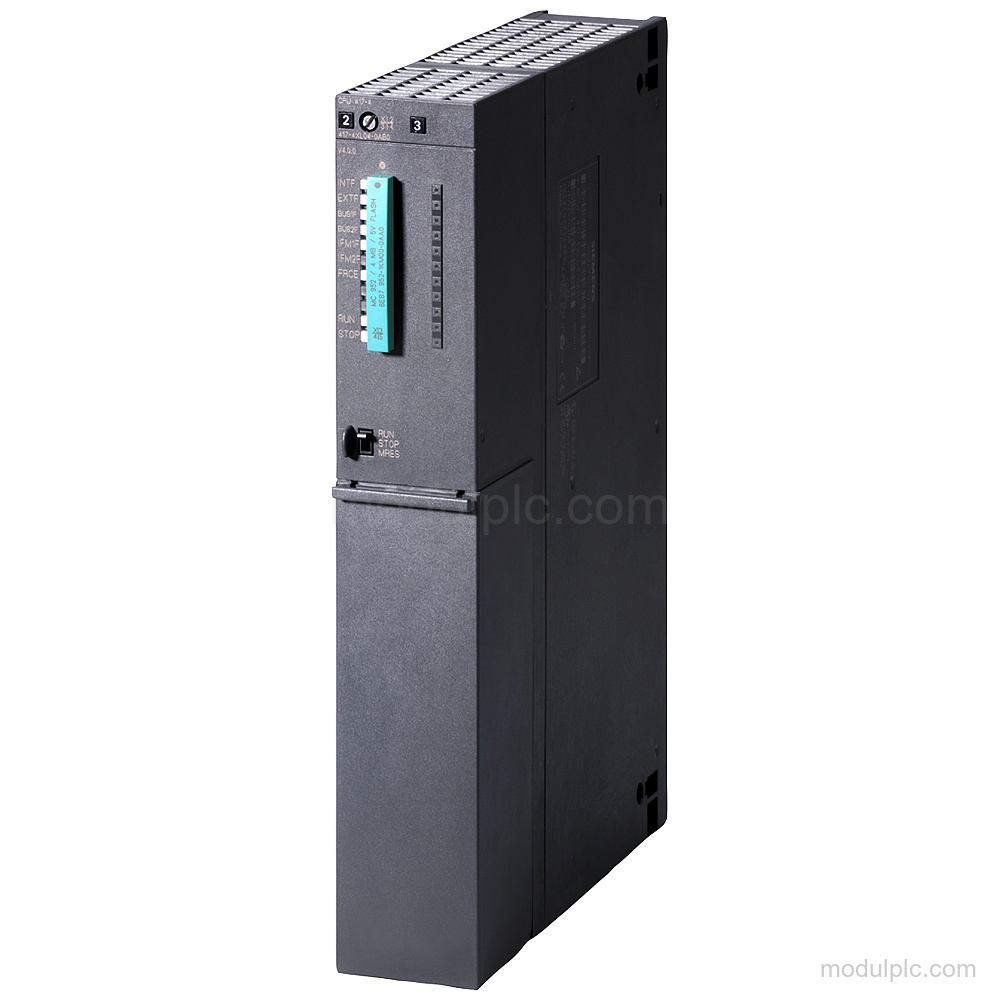

| Product type | SIMATIC S7-400 CPU 417-4 central processing unit |
| Work memory | 30 MB |
| Code memory | 15 MB |
| Data memory | 15 MB |
| 1st interface | MPI, 12 Mbit/s |
| 2nd interface | PROFIBUS DP |
| 3rd/4th interfaces | Plug-in IFM module interface |
| Product lifecycle | Product cancellation |
Key Features
- CPU 417-4 central processing unit: SIMATIC S7-400 central processing unit with 30 MB work memory.
- Work memory allocation: Work memory includes 15 MB code memory and 15 MB data memory.
- MPI interface: The 1st interface supports MPI at 12 Mbit/s.
- PROFIBUS DP interface: The 2nd interface is a PROFIBUS DP interface.
- IFM module interfaces: The 3rd and 4th interfaces are plug-in interfaces for an IFM module.
- Product lifecycle: Product cancellation.
Frequently Asked Questions
1. What is the work memory of the 6ES7417-4XT05-0AB0?
The CPU has 30 MB work memory, including 15 MB code memory and 15 MB data memory.
2. Which interfaces does the 6ES7417-4XT05-0AB0 have?
It has 1st interface MPI at 12 Mbit/s, 2nd interface PROFIBUS DP, and 3rd/4th plug-in interfaces for an IFM module.
3. What should be verified before requesting a quote for this CPU?
Verify the required MPI, PROFIBUS DP, and IFM module interface arrangement, along with the 30 MB work memory specification.
