Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | TM NPU technology module |
| Processing function | Artificial intelligence and neural-network processing |
| Ethernet interfaces | 1 |
| USB interfaces | 1 |
| Ethernet protocol | GigE Vision V2.1 |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| USB specification | USB 3.1 |
| Mounting | Rail mounting; horizontal or vertical position |
| Firmware version | V2.0 |
| Firmware update | Possible |
| Product lifecycle | Product cancellation |
Applications
- Neural-network processing: Provides artificial intelligence and neural-network processing in the TM NPU technology module.
Key Features
- Artificial intelligence processing: Supports artificial intelligence and neural-network processing.
- Ethernet interface: 1 isolated Ethernet interface with RJ45 connection, 1000 Mbps support, GigE Vision V2.1, and image resolutions of 1 280 x 1 024, 1 280 x 720, and 640 x 480.
- USB interface: 1 isolated USB 3.1 interface with a USB type A socket, 900 mA maximum interface output current, and commissioning and test use only.
- Supply voltage: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse-polarity and short-circuit protection are provided.
- Diagnostics and isolation: Diagnostics function with RUN, ERROR, MAINT, LINK, and PWR-LED status indicators. Ethernet isolation is tested with 1 500 V AC to functional ground.

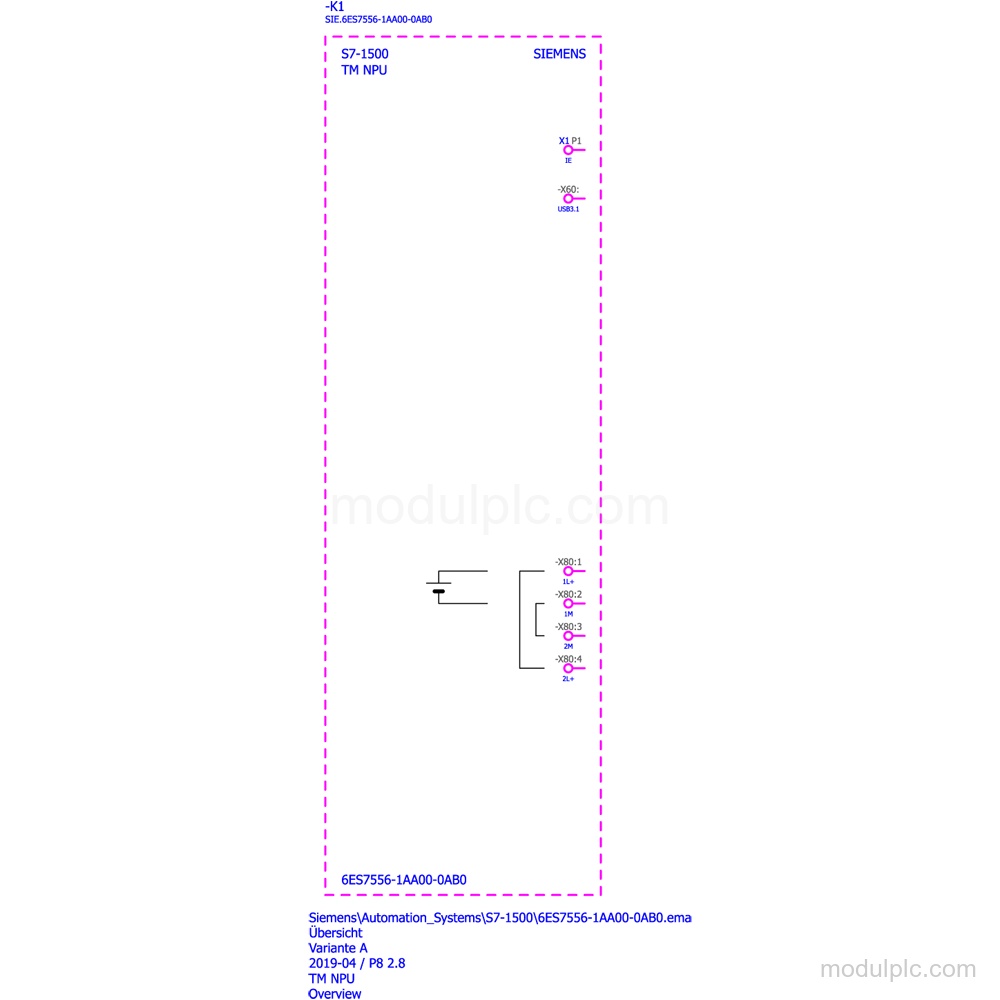

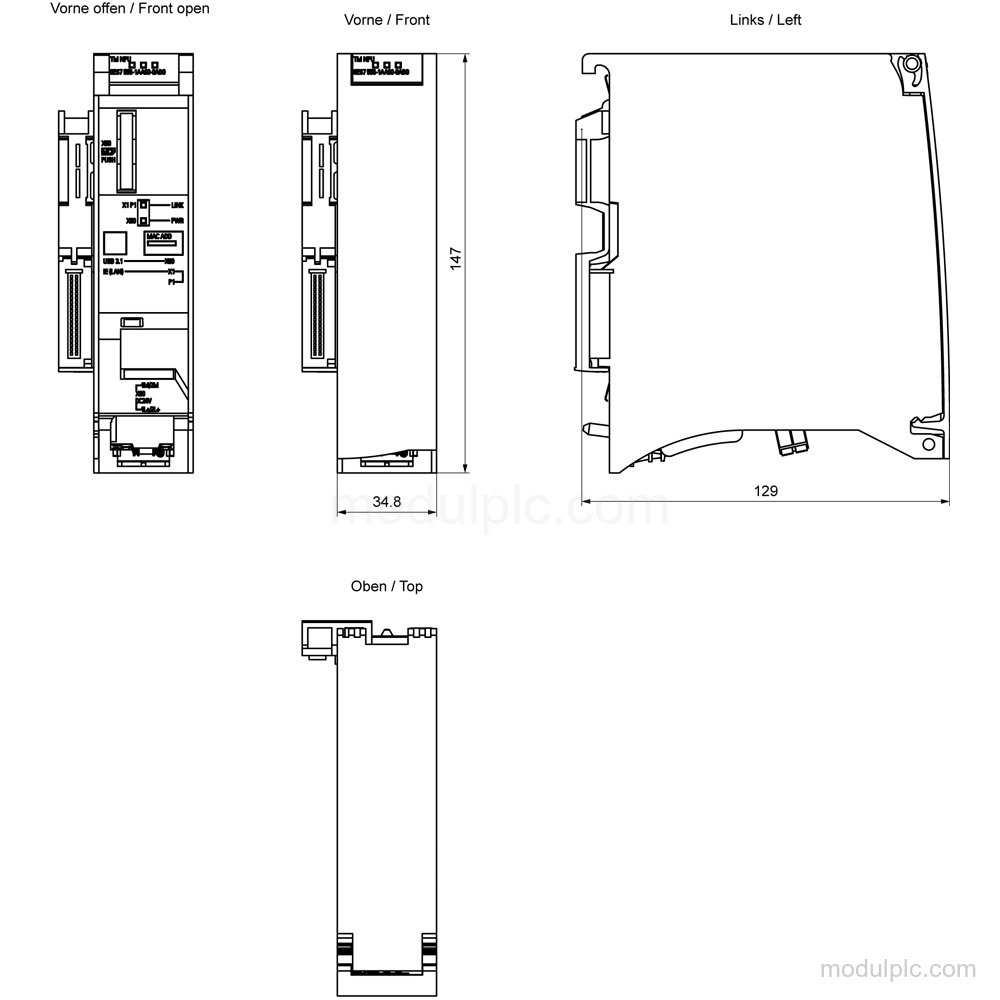

- Mounting and dimensions: Rail mounting and control cabinet installation are supported. Mounting is horizontal or vertical; dimensions are 35 mm wide, 147 mm high, and 129 mm deep.
Frequently Asked Questions
1. What is the function of Siemens 6ES7556-1AA00-0AB0?
It is a TM NPU technology module for artificial intelligence and neural-network processing.
2. How many Ethernet and USB interfaces does the module have?
It has 1 Ethernet interface and 1 USB interface, plus an SD card slot.
3. Which Ethernet protocol and image resolutions are supported?
GigE Vision V2.1 is supported. Ethernet image resolutions are 1 280 x 1 024, 1 280 x 720, and 640 x 480.
4. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. How is the module mounted?
It supports rail mounting and control cabinet installation, with horizontal or vertical mounting positions.
