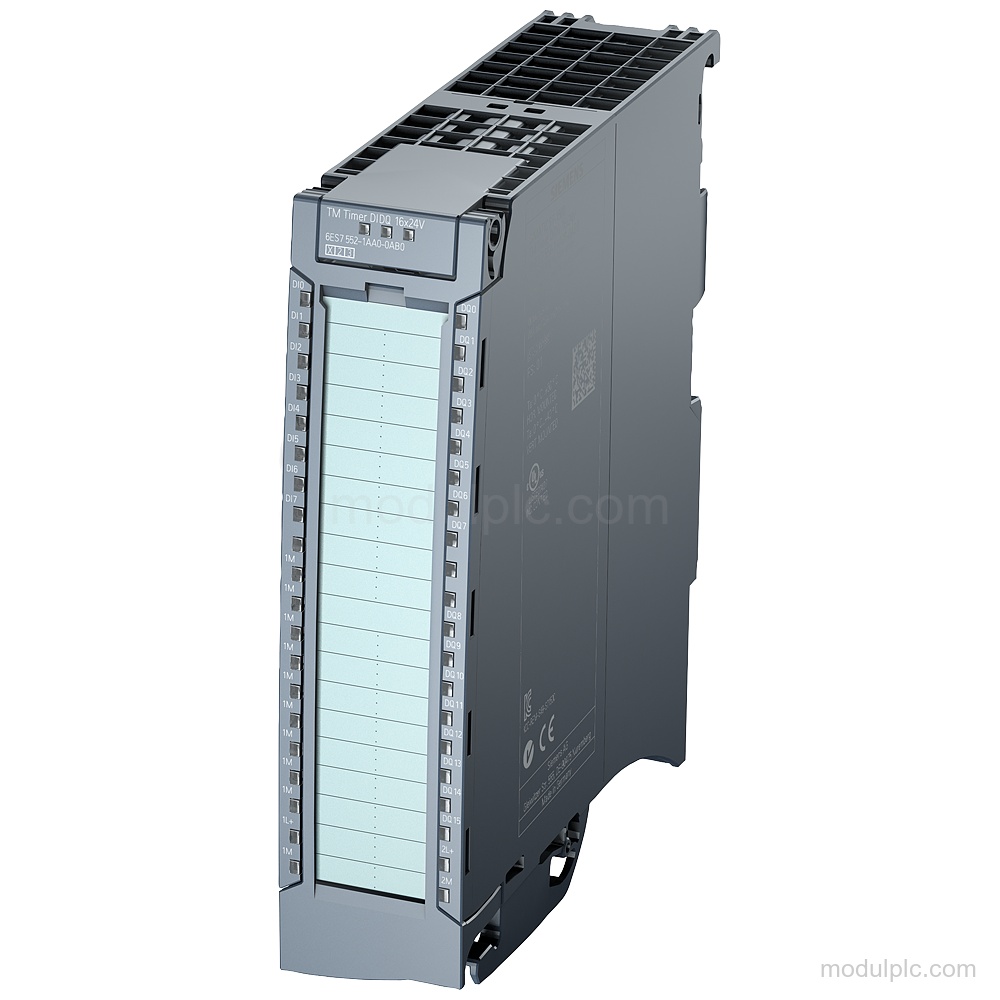

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | TM Timer DIDQ 16x24V |
| Digital inputs | 8; max. depending on parameterization |
| Digital outputs | 16; max. depending on parameterization |
| Input signal range | -5 … +5 V for signal "0"; +11 to +30V for signal "1" |
| Output current | 0.5 A rated value; 0.6 A permissible range, max.; observe derating |
| Encoder input frequency | 50 kHz, max. |
| Counting frequency | 200 kHz, max.; with quadruple evaluation |
| Load voltage | 1L+ and 2L+: 24 V DC; 19.2 V to 28.8 V permissible range |
| Bus cycle time | 250 μs, min., in isochronous mode |
| Diagnostics | Supply-voltage and short-circuit monitoring; diagnostic alarm; status LEDs |
| Mounting | S7-1500 mounting rail |
Applications
- Time-stamped signal acquisition: Uses parameterizable digital inputs and outputs with time stamping for signal acquisition and output control.
- Counter and encoder acquisition: Uses counters and incremental acquisition for incremental encoders, including A/B tracks with 90° phase offset and pulse encoders.
- PWM output control: Provides parameterizable PWM output for digital output control.
Key Features

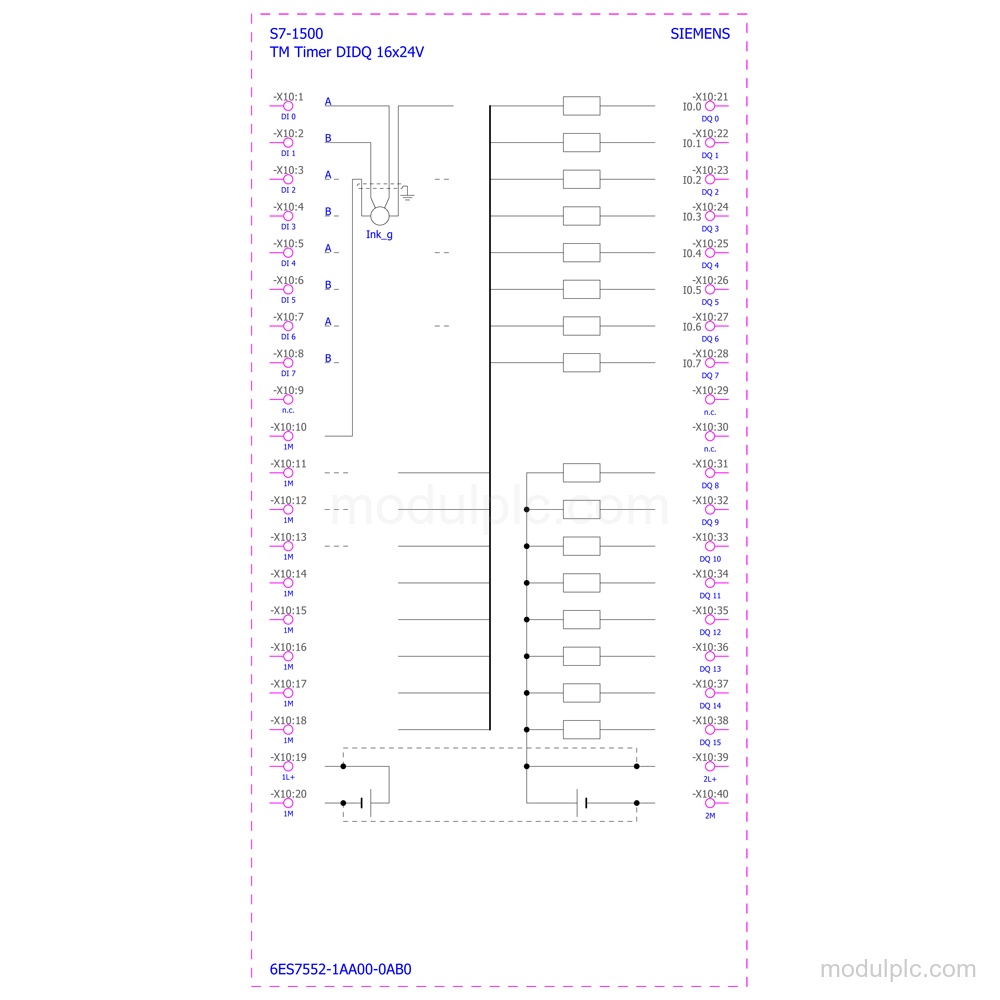

- Digital inputs and outputs: Has 8 parameterizable digital inputs and 16 parameterizable transistor outputs, with digital outputs in groups of 8.
- Signal functions: Supports time-stamped inputs and outputs, up to 4 counters, PWM output, oversampling, incremental acquisition, and counting for incremental encoders.
- 24 V DC supply: Load voltage 1L+ and 2L+ is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection against destruction.
- Encoder support: Supports asymmetrical incremental encoders, 24 V initiators, and 2-wire sensors; incremental encoder input frequency is up to 50 kHz and counting frequency is up to 200 kHz with quadruple evaluation.
- Diagnostics and isolation: Provides supply-voltage and short-circuit monitoring, diagnostic alarms, substitute values, status LEDs, and potential separation between channels and the backplane bus.

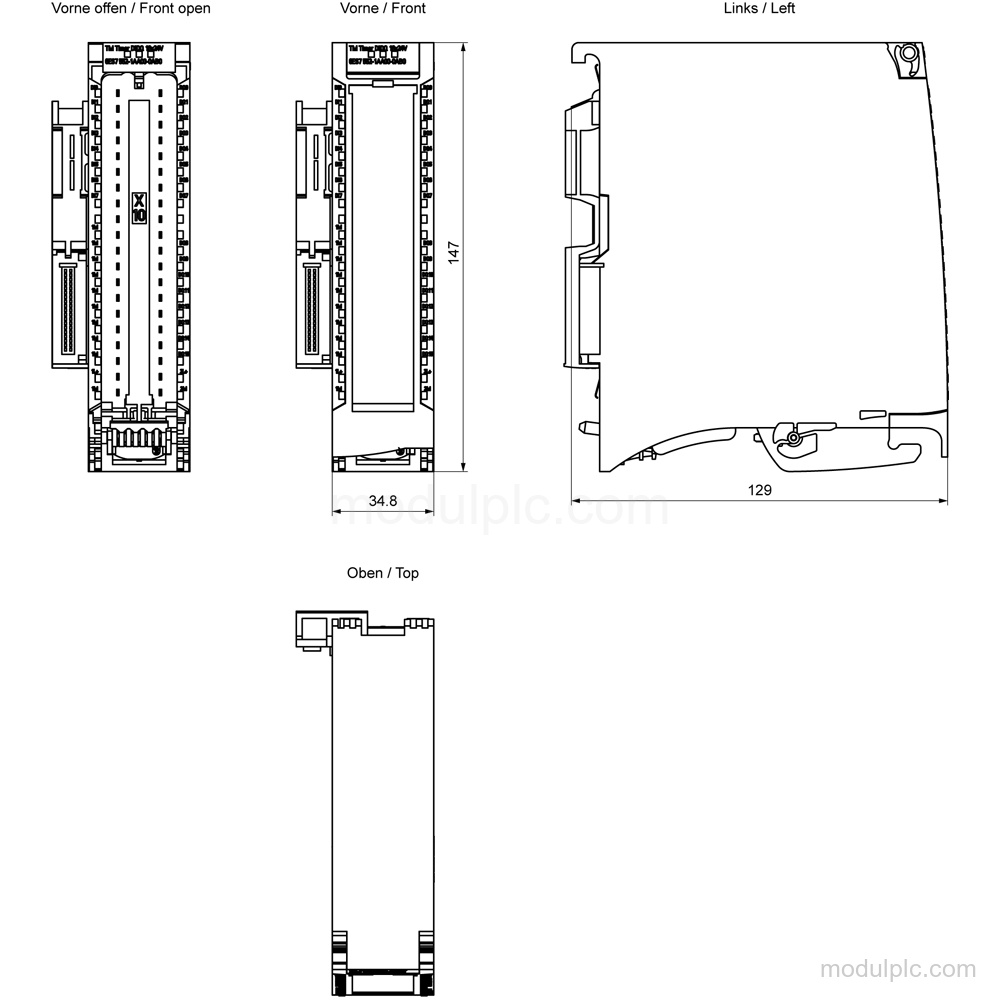

- Mounting and dimensions: Supports S7-1500 mounting-rail installation and measures 35 mm wide, 147 mm high, and 129 mm deep.
Frequently Asked Questions
1. How many digital inputs and outputs does the 6ES7552-1AA00-0AB0 have?
It has 8 parameterizable digital inputs and 16 parameterizable transistor outputs. The outputs are arranged in groups of 8.
2. Which signal functions does this TM Timer DIDQ module support?
It supports time-stamped digital inputs and outputs, counters, PWM output, oversampling, incremental acquisition, and counting for incremental encoders.
3. What supply voltage and mounting are required?
Load voltage 1L+ and 2L+ is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Installation is on an S7-1500 mounting rail.
