Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1517F-3 PN/DP |
| Program work memory | 3 Mbyte |
| Data work memory | 8 Mbyte |
| PROFINET interfaces | 2 |
| PROFIBUS interfaces | 1 |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V DC |
| Bit-operation processing time, typ. | 2 ns |
| Required memory card | Yes; SIMATIC Memory Card |
Key Features
- Fail-safe CPU type: CPU 1517F-3 PN/DP with 2 ns typical bit-operation processing time.
- Work memory: Integrated work memory: 3 Mbyte for the program and 8 Mbyte for data.

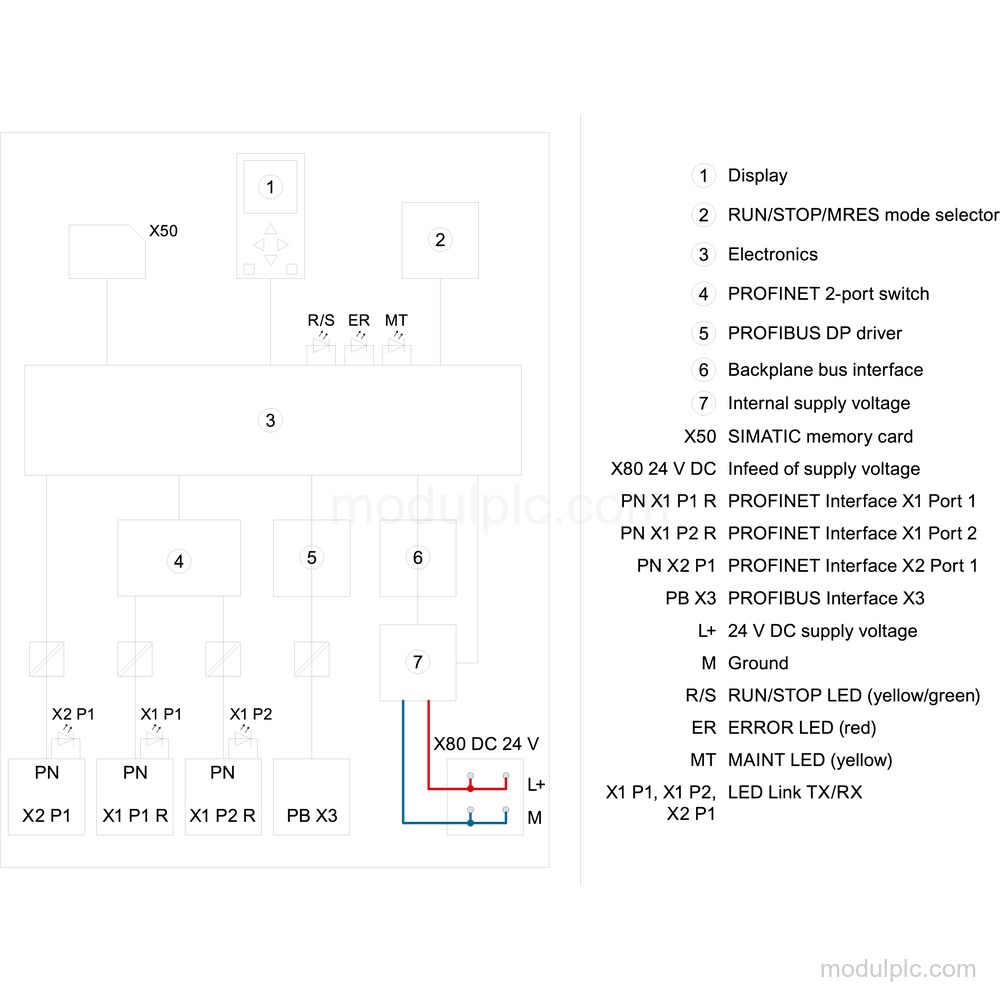

- Communication interfaces: Two PROFINET interfaces and one PROFIBUS interface; the first PROFINET interface has a 2-port integrated switch.
- Supply and consumption: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Current consumption: 1.55 A rated, 1.9 A maximum.
- SIMATIC Memory Card: One SIMATIC Memory Card is required; plug-in load memory is up to 32 Gbyte.

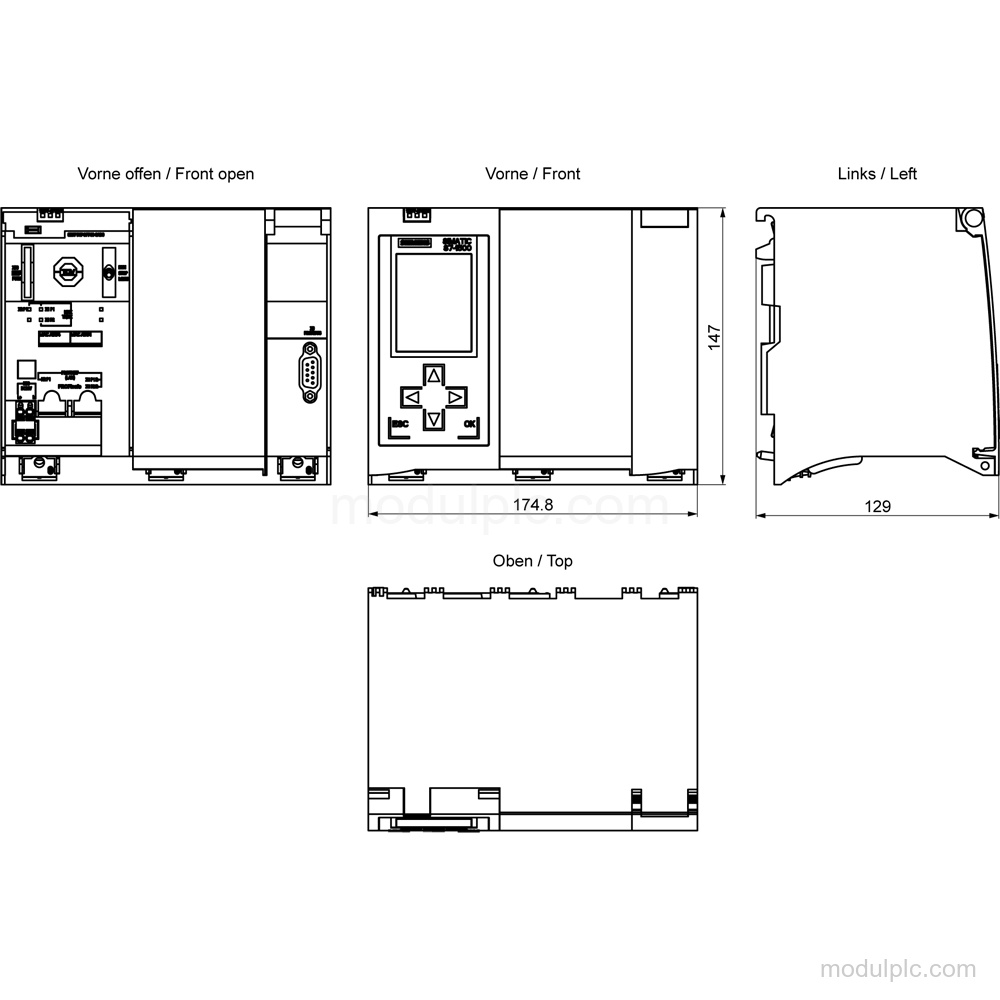

- Installation dimensions and weight: Dimensions: 175 mm wide, 147 mm high, and 129 mm deep. Weight: approximately 1 929 g.
Frequently Asked Questions
1. What type of CPU is Siemens 6ES7517-3FP00-0AB0?
It is a SIMATIC S7-1500F CPU 1517F-3 PN/DP.
2. How much work memory does this CPU have?
It has 3 Mbyte of integrated program work memory and 8 Mbyte of integrated data work memory.
3. Which communication interfaces are available?
It has two PROFINET interfaces and one PROFIBUS interface. The first PROFINET interface provides a 2-port integrated switch.
4. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. Is a memory card required for this configuration?
It is without an included memory card; a SIMATIC Memory Card is required.
