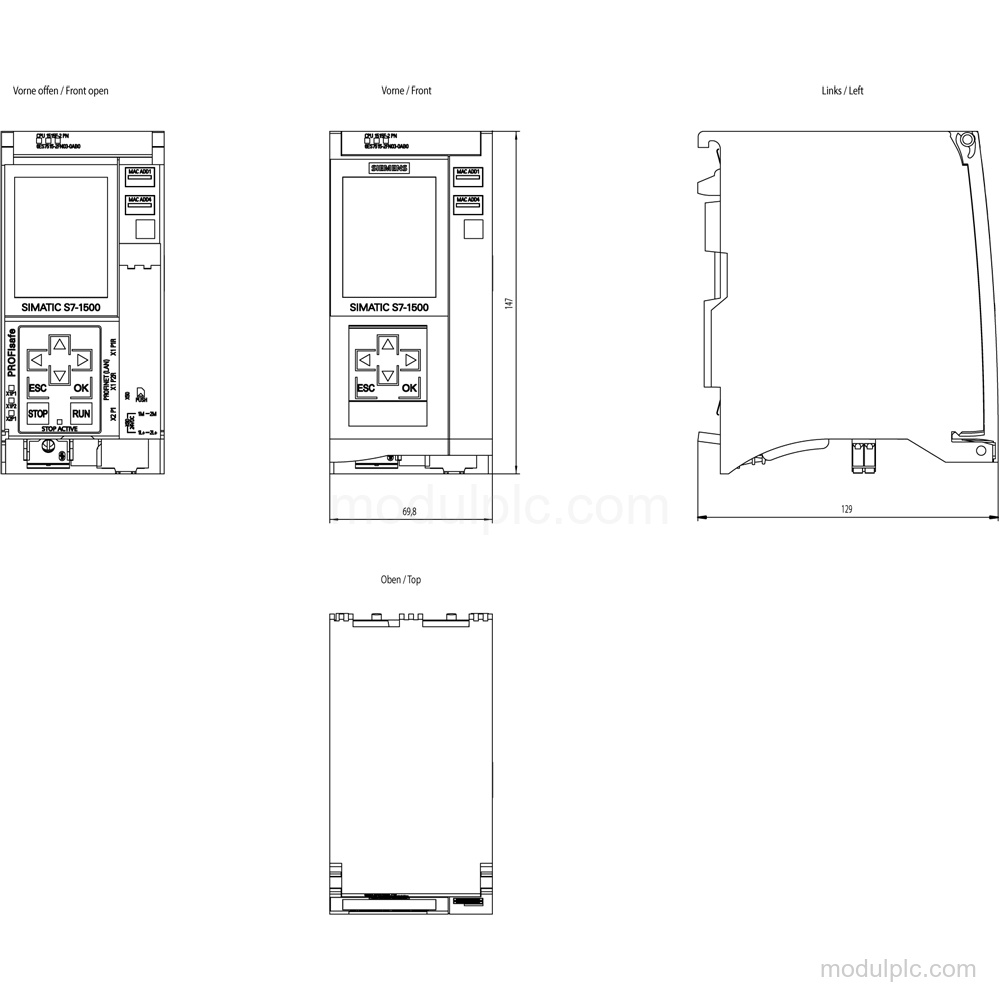

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1515F-2 PN |
| Program work memory | 1.5 Mbyte |
| Data work memory | 4.5 Mbyte |
| PROFINET interfaces | 2 |

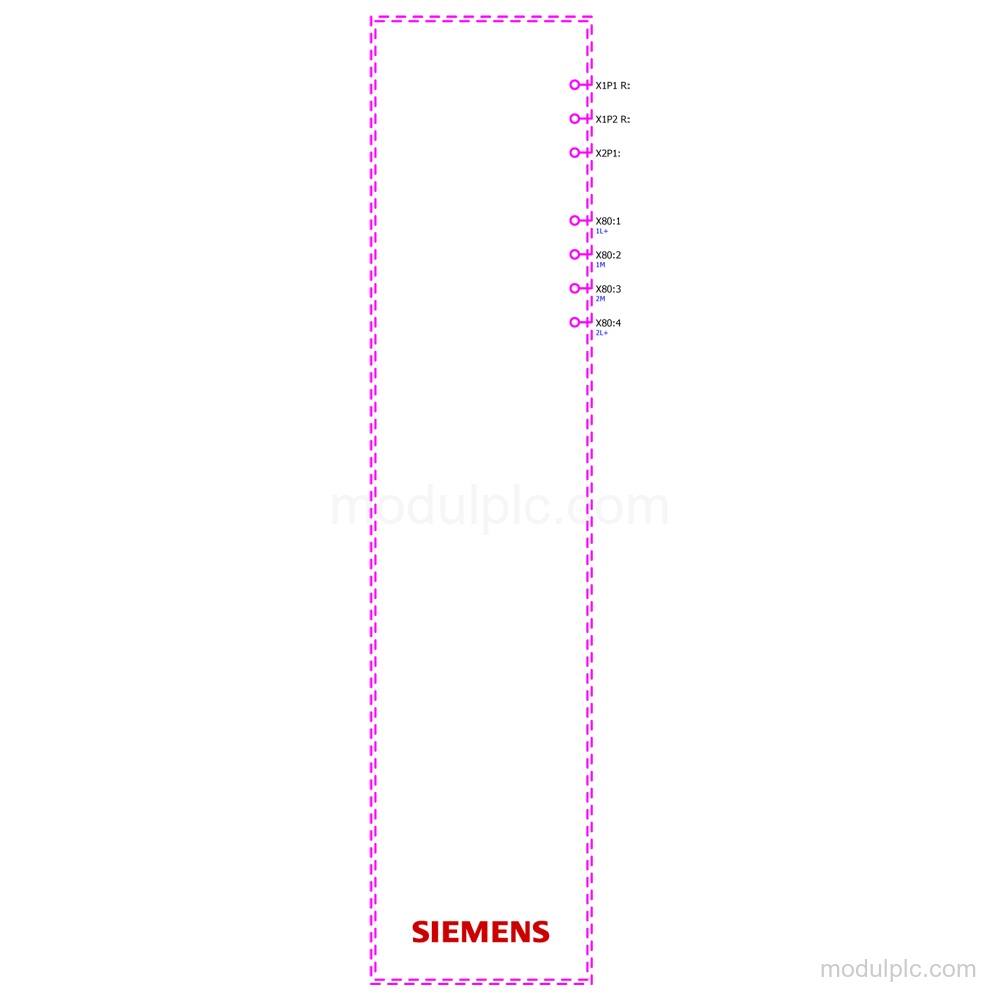

| X1 interface | PROFINET IRT; 2-port integrated switch |
| X2 interface | PROFINET RT; 1 port |
| Bit operation time, typ. | 6 ns |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| SIMATIC Memory Card required | Yes |
| Integrated IO Controllers | 2 |
| Protection and protocol | PROFIsafe V2.4 / V2.6 |
Applications
- PROFINET communication: Supports PROFINET IO Controller and PROFINET IO device communication, including PROFINET IRT on X1 and PROFINET RT on X2.
- Open IE data communication: Supports TCP/IP, ISO-on-TCP (RFC1006), UDP, DHCP, DNS, SNMP, DCP, and LLDP communication.
- Motion Control: Supports Motion Control technology objects with up to 2 400 available Motion Control resources.
- PID control: Supports PID_Compact, PID_3Step for valves, and PID-Temp controllers with integrated optimization.
Key Features

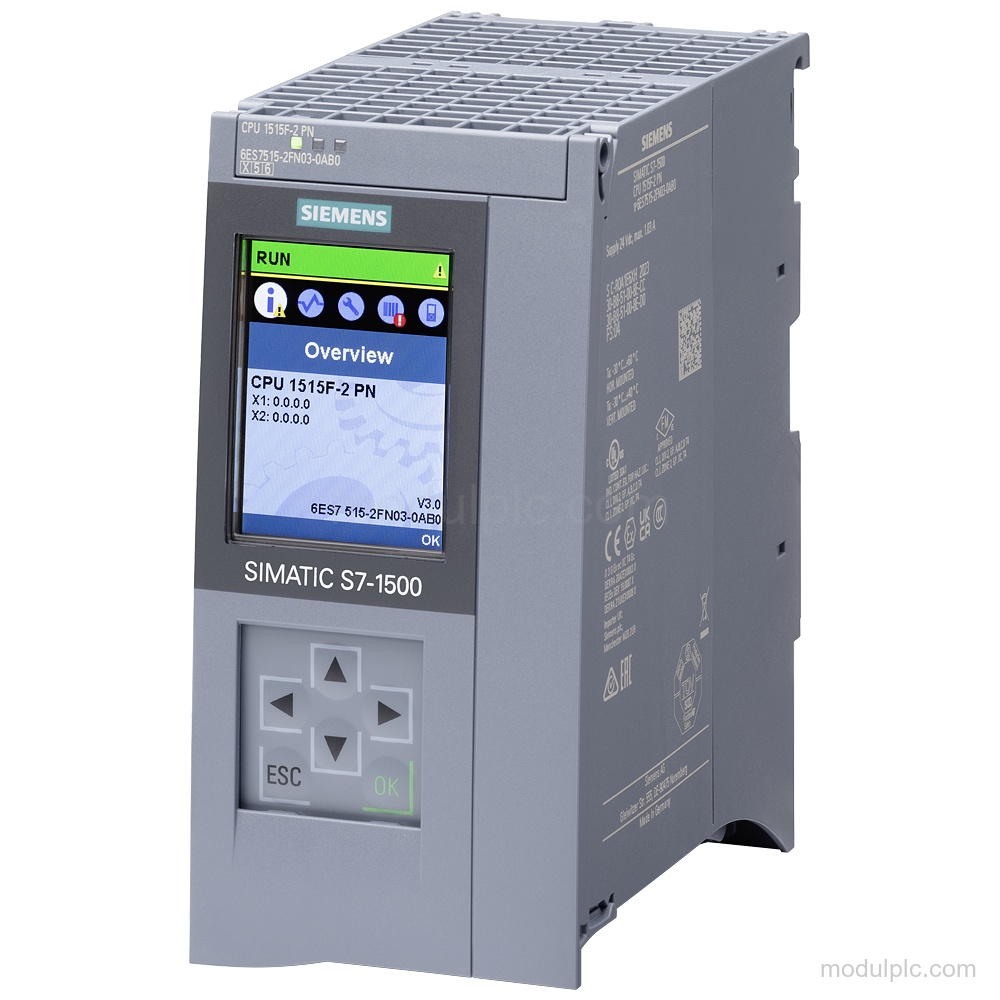

- Fail-safe CPU: CPU 1515F-2 PN for SIMATIC S7-1500F with 1.5 MB integrated work memory for the program and 4.5 MB for data.
- PROFINET interfaces: 2 PROFINET interfaces: X1 with PROFINET IRT and a 2-port integrated switch, plus X2 with PROFINET RT and 1 port.
- Processing performance: Typical CPU processing time is 6 ns for bit operations, 7 ns for word operations, 9 ns for fixed point arithmetic, and 37 ns for floating point arithmetic.
- Supply and memory card: Rated supply voltage is 24 V DC with a permissible range of 19.2 V to 28.8 V DC. 1 SIMATIC Memory Card is required; plug-in load memory is up to 32 Gbyte.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO device, SIMATIC communication, Open IE communication, OPC UA, MODBUS TCP, and PROFIsafe V2.4 / V2.6.
- Diagnostics and display: Provides RUN/STOP, ERROR, MAINT, STOP ACTIVE, and LINK TX/RX indicators, plus a 6.1 cm screen diagonal and 8 keys.
Frequently Asked Questions
1. What is the function of Siemens 6ES7515-2FN03-0AB0?
It is a SIMATIC S7-1500F CPU 1515F-2 PN central processing unit with 1.5 MB program work memory and 4.5 MB data work memory.
2. How many PROFINET interfaces does the CPU have?
It has 2 PROFINET interfaces. X1 supports PROFINET IRT with a 2-port integrated switch, while X2 supports PROFINET RT with 1 port.
3. What supply voltage does 6ES7515-2FN03-0AB0 use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Is a SIMATIC Memory Card included in the configuration?
A SIMATIC Memory Card is required. The source does not state that a card is included.
5. Which memory and processing values should be verified before quotation?
Verify the 1.5 Mbyte program memory, 4.5 Mbyte data memory, up to 32 Gbyte plug-in load memory, and 6 ns typical bit operation time.
