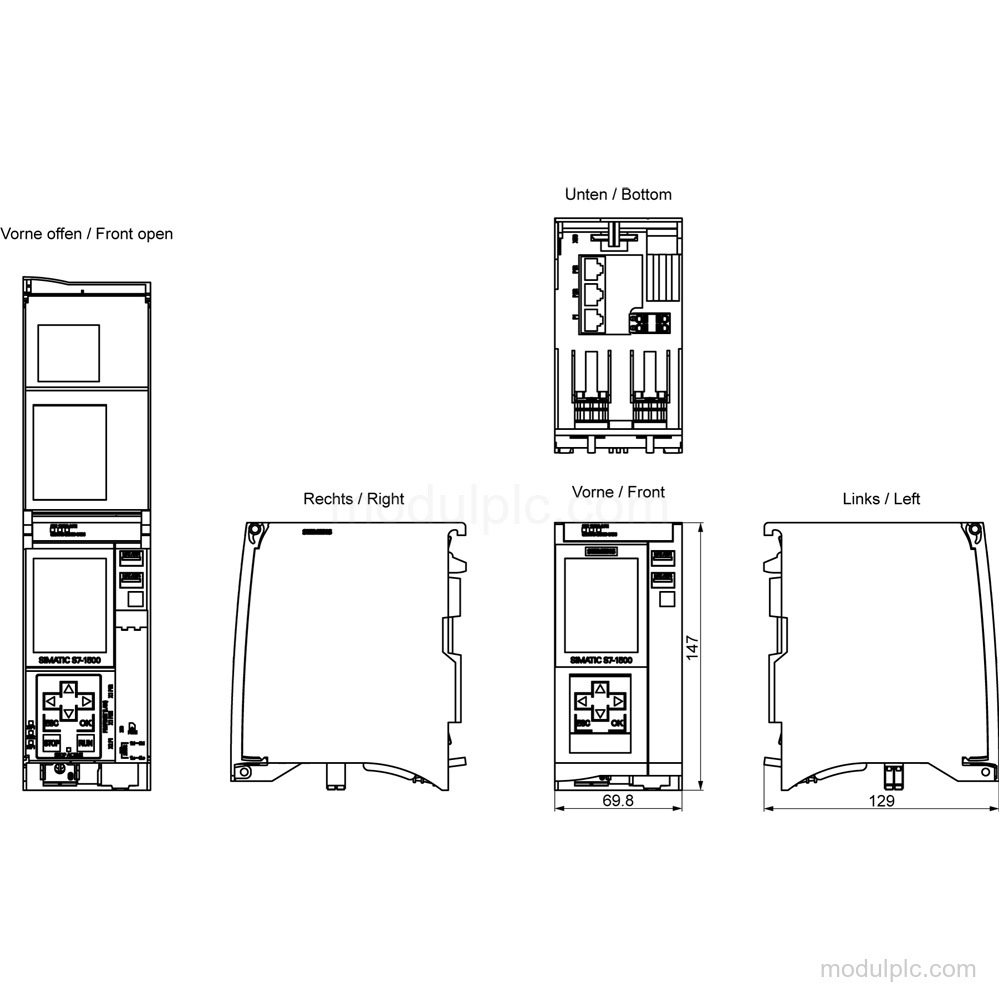

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1515-2 PN |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible |
| PROFINET interfaces | 2 |
| RJ 45 ports | X1: 2 with integrated switch; X2: 1 |
| Bit operation time | 6 ns, typical |
| Program memory | 1 Mbyte integrated |
| Load memory | Up to 32 Gbyte via SIMATIC Memory Card |
| Diagnostic buffer | 3 200 entries, max. |
Applications
- PROFINET IO control and device communication: The CPU supports PROFINET IO Controller and PROFINET IO Device functions on its interfaces.
- Open industrial Ethernet communication: The CPU supports TCP/IP, ISO-on-TCP (RFC1006), UDP, DHCP, DNS, SNMP, DCP, and LLDP through Open IE communication.
Key Features

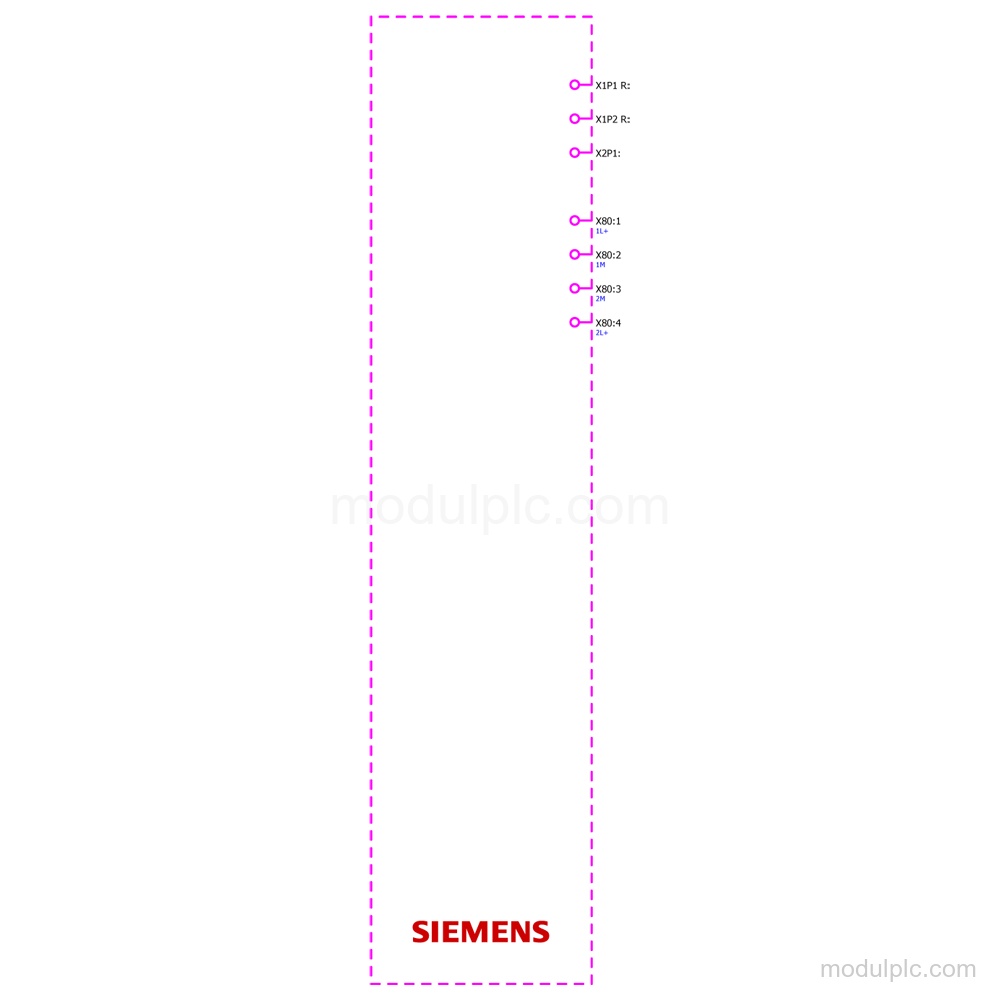

- PROFINET interfaces: 2 interfaces: X1 with 2 RJ 45 ports and an integrated switch, plus X2 with 1 RJ 45 port.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO Device, SIMATIC communication, Open IE communication, Web server, and MODBUS TCP.
- CPU performance: Typical processing time is 6 ns for bit operations, 7 ns for word operations, 9 ns for fixed point arithmetic, and 37 ns for floating point arithmetic.
- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Memory and diagnostics: A SIMATIC Memory Card is required; plug-in load memory is up to 32 Gbyte, with a diagnostic buffer supporting up to 3 200 entries.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7515-2AN03-0AB0?
It is a SIMATIC S7-1500 CPU 1515-2 PN central processing unit with PROFINET IO Controller and PROFINET IO Device functions.
2. How many PROFINET interfaces and RJ 45 ports does it have?
It has 2 PROFINET interfaces: X1 provides 2 RJ 45 ports with an integrated switch, and X2 provides 1 RJ 45 port.
3. What supply voltage does this CPU require?
The rated supply voltage is 24 V DC. The permissible range is 19.2 V to 28.8 V.
4. Is a SIMATIC Memory Card included in the CPU configuration?
A SIMATIC Memory Card is required. The plug-in load memory supports up to 32 Gbyte.
