Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PS 60 W 120/230 V AC/DC |
| Backplane bus infeed power | 60 W |
| Rated supply voltage, AC | 120 V / 230 V |
| Rated supply voltage, DC | 120 V / 230 V |
| Permissible supply voltage, AC | 85 V to 264 V |
| Permissible supply voltage, DC | 88 V to 300 V |
| Line frequency | 47 Hz to 63 Hz |
| Status indicator | Yes |
Applications
- S7-1500 backplane bus power supply: Supplies operating voltage to the S7-1500 backplane bus.
Key Features
- System power supply: PS 60 W 120/230 V AC/DC supplies the S7-1500 backplane bus with operating voltage.
- Rated supply voltage: Rated input voltage is 120 V / 230 V AC and 120 V / 230 V DC.
- Backplane bus power: Infeed power to the backplane bus is 60 W.
- Supply protection: Short-circuit protection is provided for the supply and output current.
- Status and isolation: The unit has a status indicator, primary/secondary potential separation, and isolation tested with 2 500 V DC/2 s (routine test).

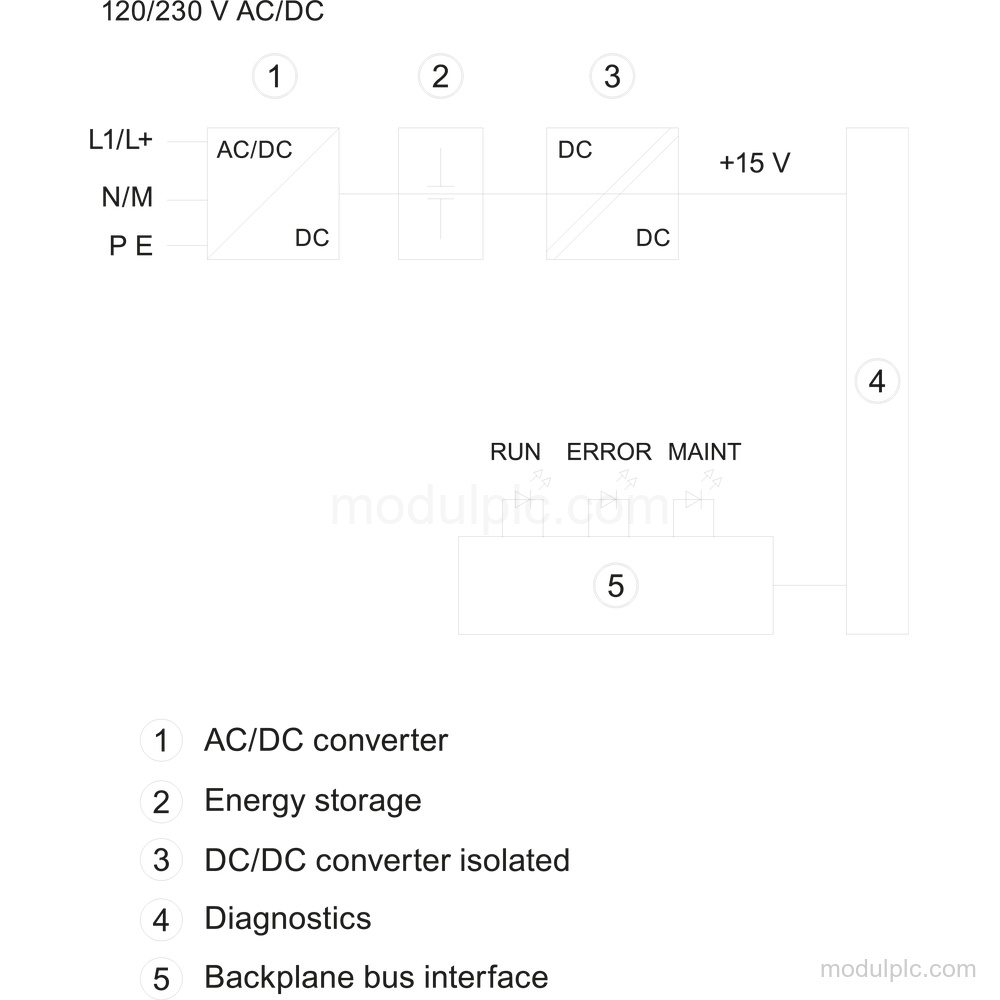

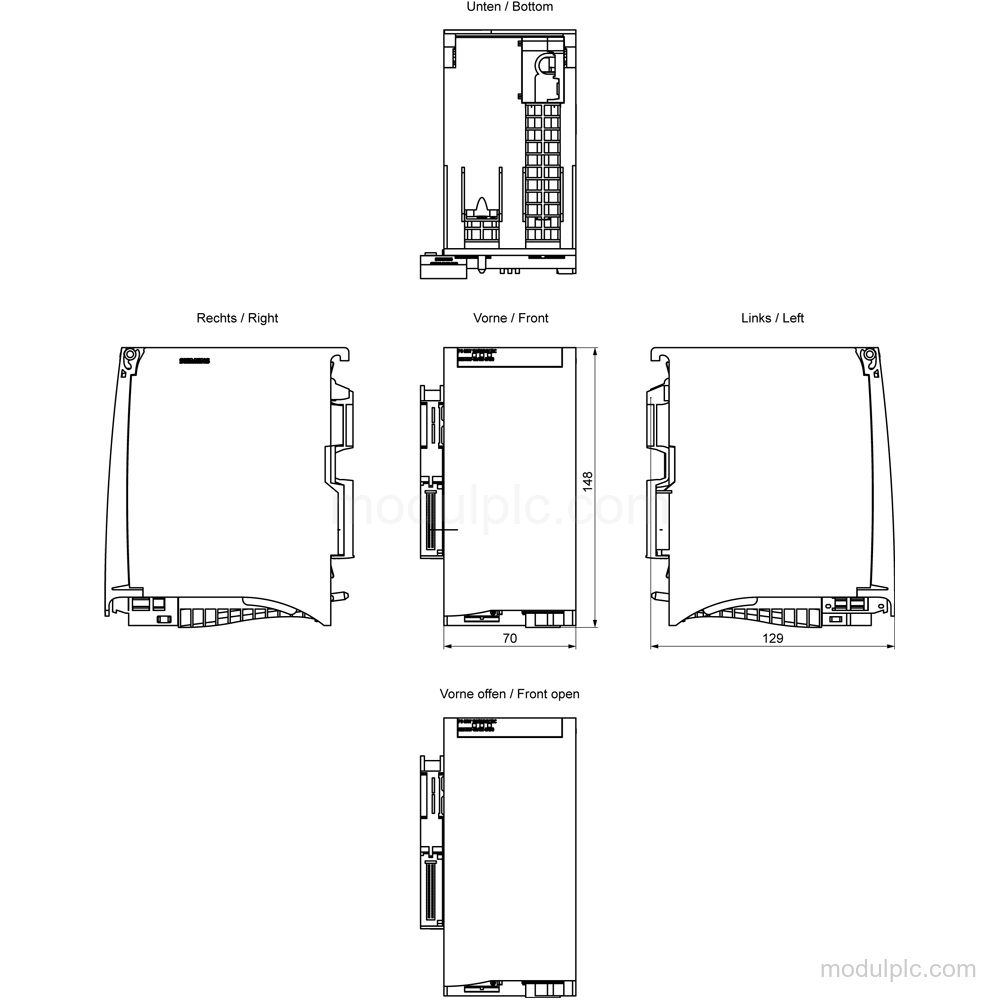

- Installation data: Dimensions are 70 mm wide, 147 mm high, and 129 mm deep; weight is approximately 600 g.
Frequently Asked Questions
1. What function does the 6ES7507-0RA00-0AB0 perform?
It is a PS 60 W system power supply that supplies operating voltage to the S7-1500 backplane bus.
2. What supply voltage does this system power supply use?
The rated supply voltage is 120 V / 230 V AC or 120 V / 230 V DC. The permissible range is 85 V to 264 V AC and 88 V to 300 V DC.
3. What installation dimensions should be verified before inquiry?
Verify the dimensions of 70 mm width, 147 mm height, and 129 mm depth, plus the approximate weight of 600 g.
