Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PS 60 W 24/48/60 V DC |
| Supply voltage, rated DC | 24 V / 48 V / 60 V |
| Permissible supply voltage, lower limit | 19.2 V; Static 19.2 V, dynamic 18.5 V |
| Permissible supply voltage, upper limit | 72 V; Static 72 V, dynamic 75.5 V |
| Backplane bus infeed power | 60 W |
| Input current at 24 V DC, rated | 3 A |
| Input current at 48 V DC, rated | 1.5 A |
| Input current at 60 V DC, rated | 1.2 A |
| Mains/voltage failure stored energy time | 20 ms |
| Status indicator | Yes |
| Product lifecycle | Active Product |
Applications
- S7-1500 backplane bus power supply: Supplies the backplane bus of the S7-1500 with operating voltage.
Key Features
- System power supply: PS 60 W 24/48/60 V DC supplies the S7-1500 backplane bus with operating voltage.
- Rated supply voltage: Rated DC supply values are 24 V, 48 V, and 60 V.
- Backplane bus power: Infeed power to the backplane bus is 60 W.
- Protection functions: The supply has reverse polarity protection and short-circuit protection.
- Status indication: Status indication is available.

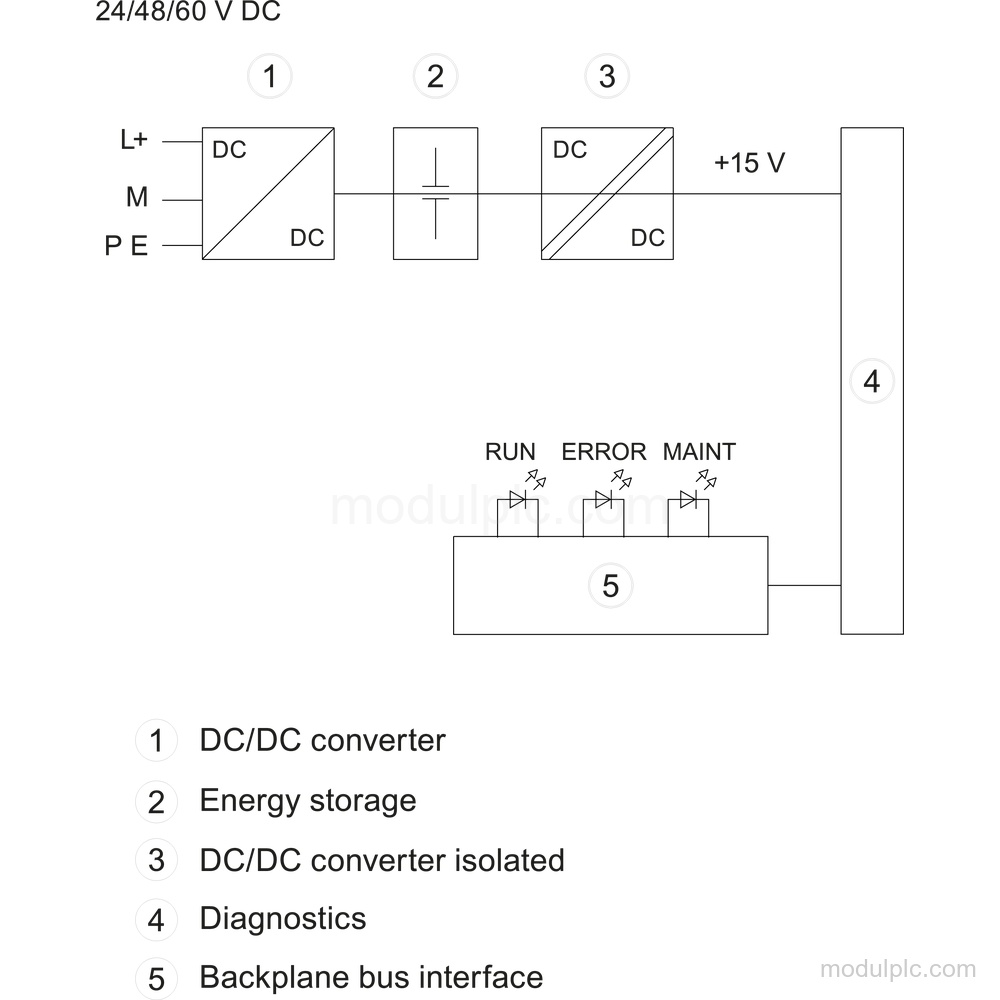

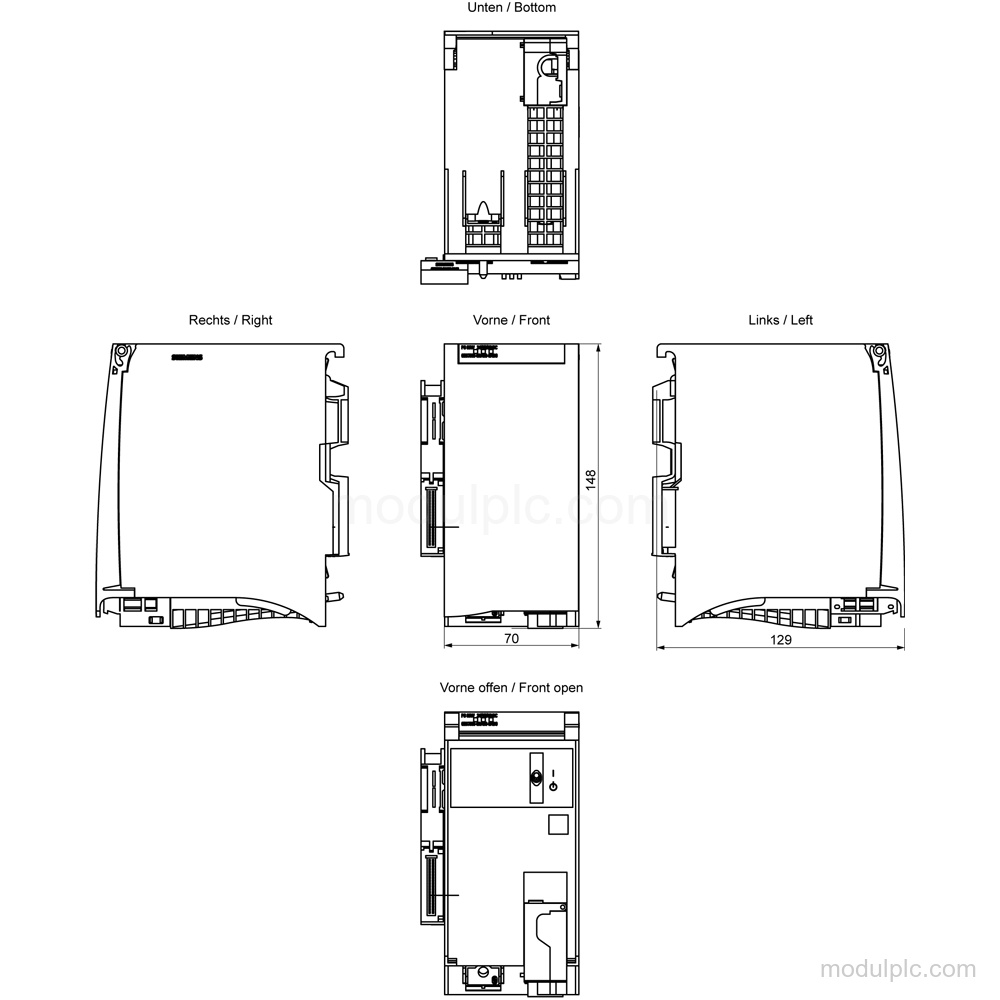

- Installation dimensions: The unit measures 70 mm wide, 147 mm high, and 129 mm deep.
Frequently Asked Questions
1. What is the function of Siemens 6ES7505-0RA00-0AB0?
It is a PS 60 W 24/48/60 V DC system power supply that supplies the S7-1500 backplane bus with operating voltage.
2. What DC supply values does this system power supply use?
The rated DC supply values are 24 V, 48 V, and 60 V.
3. What protection functions and status information are available?
It has reverse polarity protection, short-circuit protection, and a status indicator.
