Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1214FC DC/DC/Relay |
| Supply | 20.4 V DC to 28.8 V DC |
| Digital inputs | 14; Integrated; 24 V DC |
| Relay outputs | 10; maximum resistive load 2 A |
| PROFINET interfaces | 1 |
| RJ 45 ports | 2; integrated switch |
| Program memory | 300 kbyte |
| Data memory | 750 kbyte |
| Firmware version | V4.1 |
| Diagnostic buffer | 500 entries, maximum |
| IP degree of protection | IP20 |
Applications
- Digital signal acquisition: Acquires signals through 14 integrated 24 V DC digital inputs.
- Relay output control: Controls loads through 10 relay outputs with a maximum resistive load of 2 A.
- PROFINET communication: Communicates through PROFINET as an IO Controller and IO Device.
- Motion control: Supports Motion Control technology objects and up to 8 position-controlled positioning axes.
Key Features
- Failsafe CPU: CPU 1214FC DC/DC/Relay for SIMATIC S7-1200 G2, with firmware version V4.1.

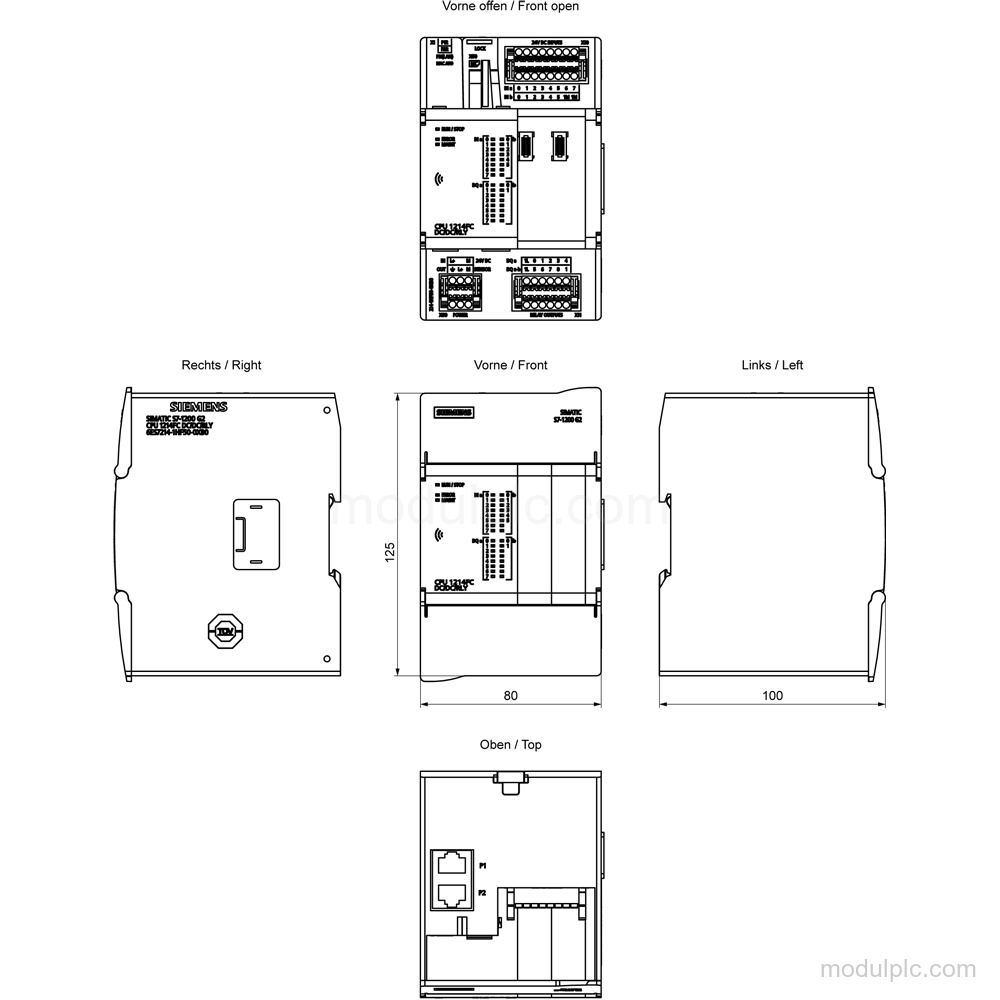

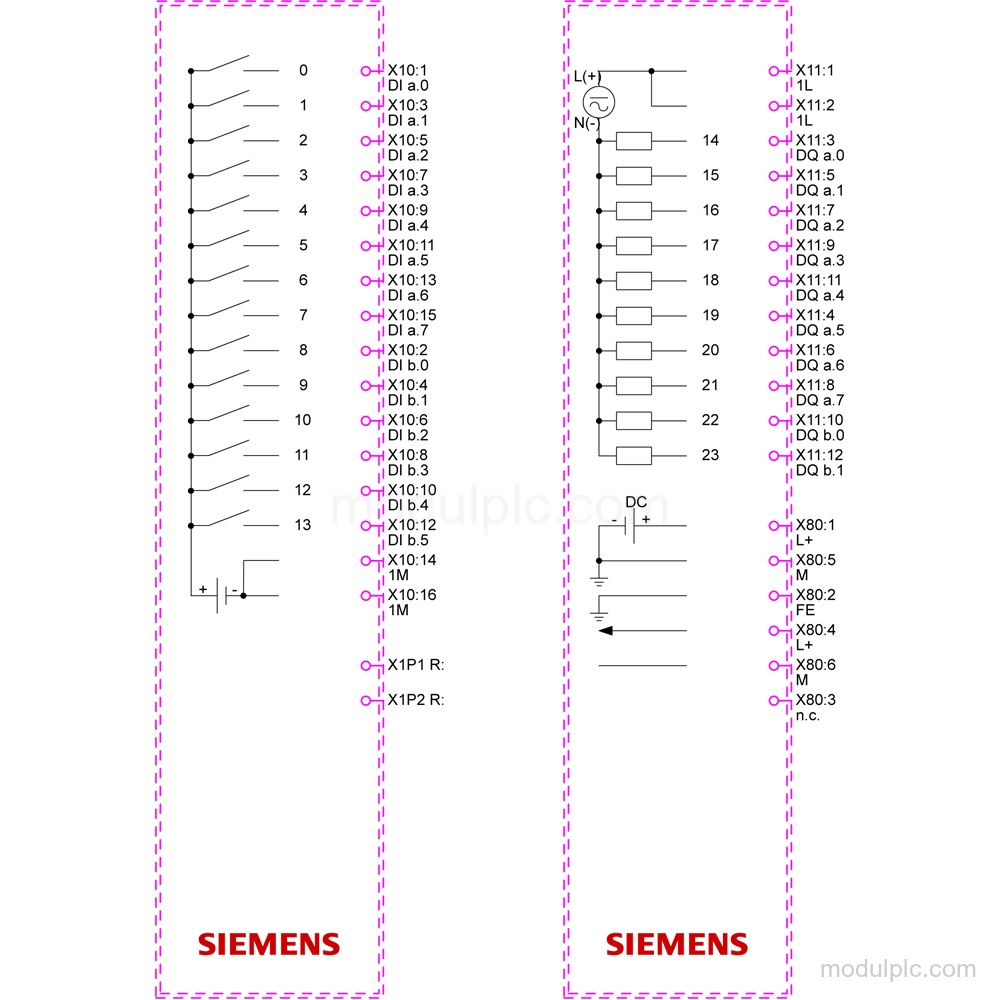

- Digital I/O: 14 integrated digital inputs at 24 V DC and 10 relay outputs.
- Relay output capacity: Relay outputs support a maximum resistive load of 2 A.
- PROFINET communication: One PROFINET interface with 2 RJ 45 ports, an integrated switch and a maximum transmission rate of 100 Mbit/s.
- Supply and memory: Supply range: 20.4 V DC to 28.8 V DC. Program memory: 300 kbyte; data memory: 750 kbyte.
- Diagnostics and protection: I&M0 to I&M3, SysLog, diagnostic buffer with up to 500 entries and reverse polarity protection.
Frequently Asked Questions
1. How many digital inputs and relay outputs does 6ES7214-1HF50-0XB0 have?
It has 14 integrated 24 V DC digital inputs and 10 relay outputs.
2. What supply range does this CPU use?
Its supply range is 20.4 V DC to 28.8 V DC.
3. Which PROFINET connections are provided?
It has 1 PROFINET interface with 2 RJ 45 ports and an integrated switch.
4. What is the relay output capacity?
The maximum resistive load is 2 A.
5. What should be verified before requesting a quote?
Verify the required I/O, PROFINET configuration, supply range, relay load and IP20 protection.
