Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1214C DC/DC/DC |
| Supply | 24 V DC; permissible range 20.4 V to 28.8 V DC |
| Digital inputs | 14; integrated |
| Digital outputs | 10; 20 kHz or 100 kHz |
| High-speed outputs | 4; 100 kHz (Qa.0 – Qa.3) |
| PROFINET interfaces | 1 |
| PROFINET ports | 2; integrated switch |
| PROFINET transmission rate | 100 Mbit/s, max. |
| Integrated work memory | 1 000 kbyte; 250 kbyte program and 750 kbyte data |
| IP degree of protection | IP20 |
Applications
- Digital signal acquisition: The integrated digital inputs acquire 24 V DC signals; 8 inputs are usable for HSC functions.
- Digital output control: The integrated digital outputs provide 24 V DC output signals, with 4 high-speed outputs at 100 kHz.
- PROFINET communication: The CPU supports PROFINET IO Controller and PROFINET IO Device communication.
- Position-controlled positioning: The integrated functions include controlled positioning and up to 8 position-controlled positioning axes.
Key Features

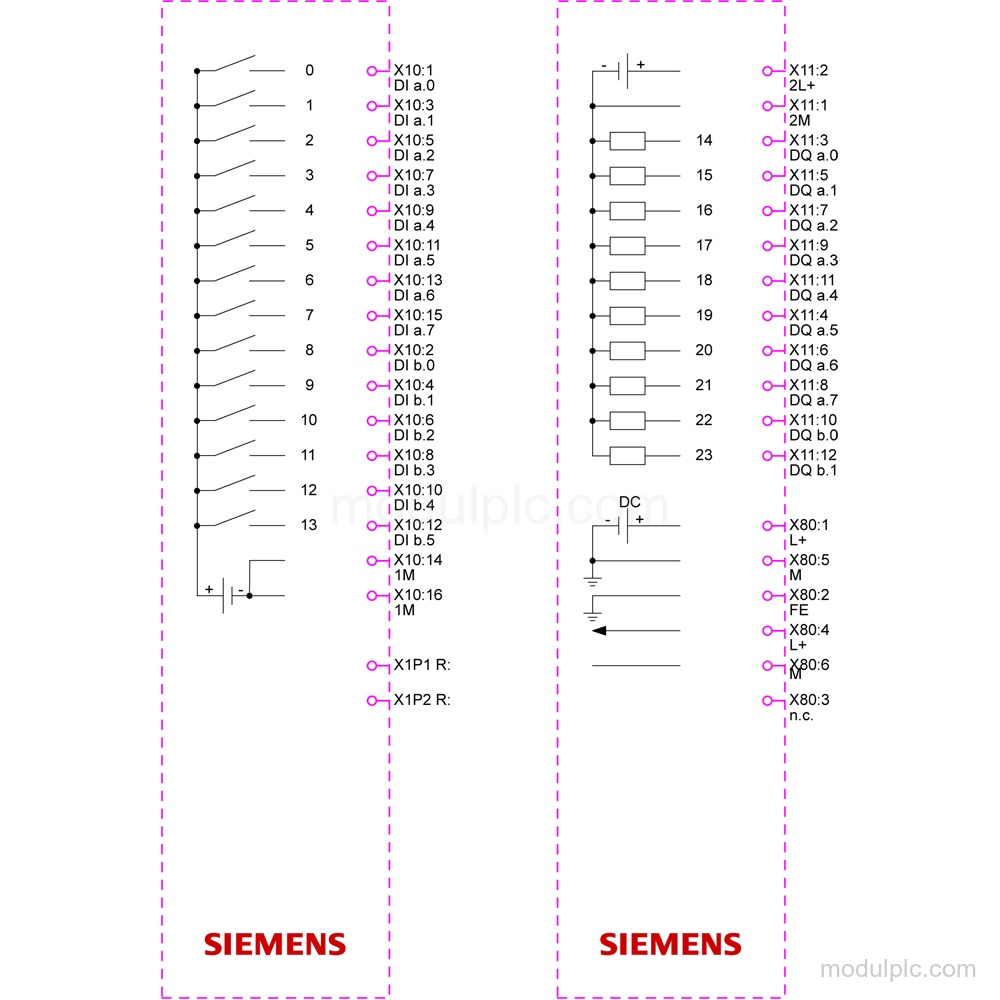

- Digital I/O: 14 integrated digital inputs and 10 digital outputs; 4 outputs are high-speed outputs at 100 kHz.
- Supply: Rated supply: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
- PROFINET interface: 1 PROFINET interface with 2 ports, integrated switch, and transmission rate up to 100 Mbit/s.
- Memory: Integrated work memory: 1 000 kbyte, including 250 kbyte for the program and 750 kbyte for data.
- Communication: Supports PROFINET IO Controller, PROFINET IO Device, OPC UA Server, MODBUS RTU/TCP, and TCP/IP.

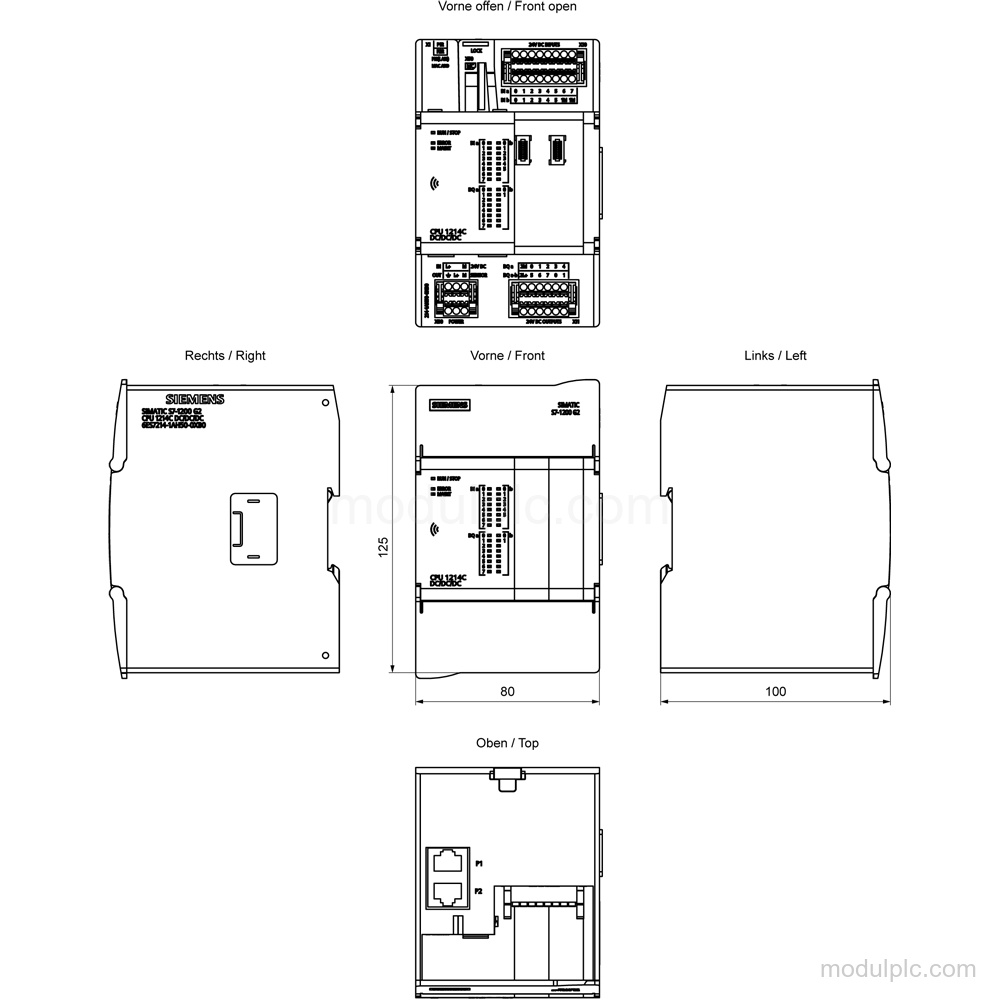

- Protection and dimensions: IP20 degree of protection; packaging dimensions: 136.00 x 90.00 x 110.00 mm.
Frequently Asked Questions
1. How many digital inputs and outputs does 6ES7214-1AH50-0XB0 have?
It has 14 integrated digital inputs and 10 digital outputs. 4 outputs are high-speed outputs at 100 kHz.
2. What supply voltage does this CPU require?
The rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
3. Which interfaces and protocols are supported?
It has 1 PROFINET interface with 2 ports and supports PROFINET IO, OPC UA Server, MODBUS RTU/TCP, and TCP/IP.
