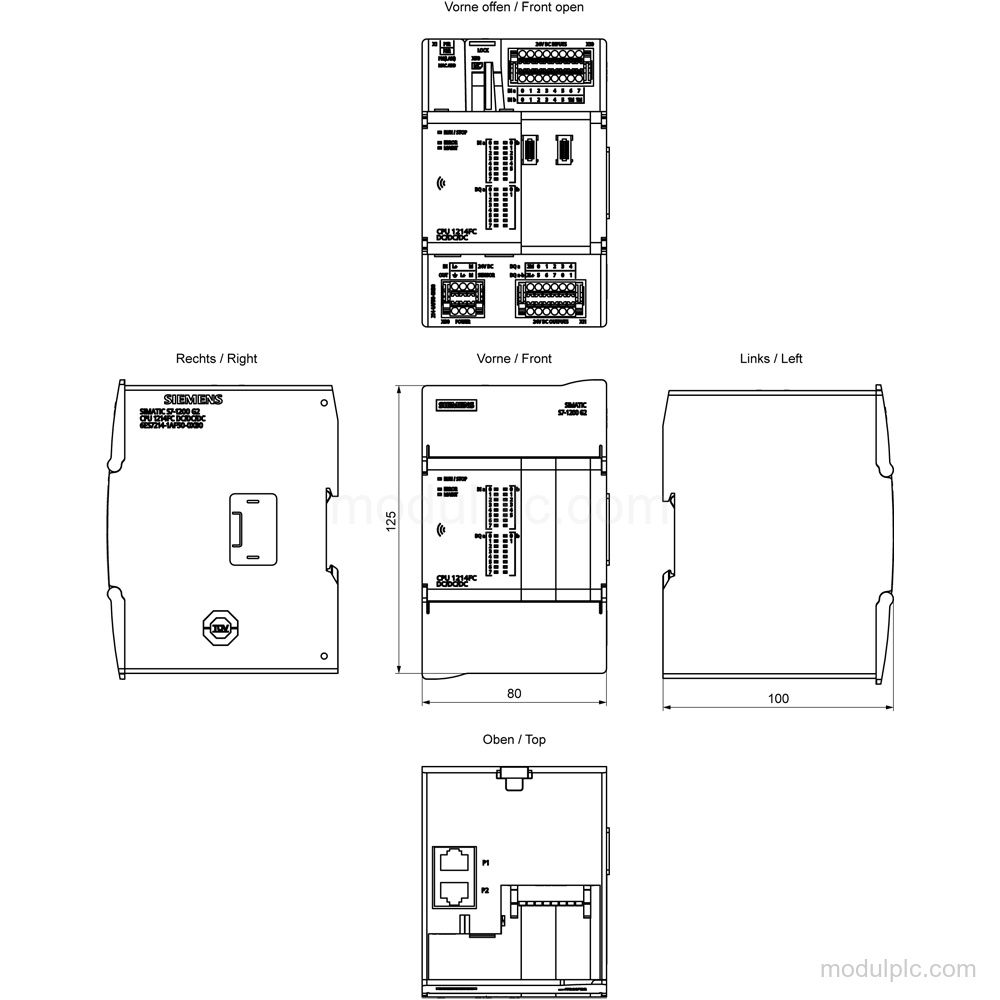

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1214FC DC/DC/DC |
| Digital inputs | 14; Integrated; 24 V DC |
| Digital outputs | 10; 24 V DC |
| PROFINET interfaces | 1; RJ 45 (Ethernet), X1 |
| Supply voltage | 24 V DC; 20.4 V DC to 28.8 V DC |
| Work memory | 1 050 kbyte; 300 kbyte program, 750 kbyte data |
Applications
- Failsafe digital signal processing: The source supports failsafe compact CPU operation with integrated digital inputs and outputs.
- PROFINET I/O communication: The source supports PROFINET IO Controller and PROFINET IO Device functions.
- Controlled positioning: The source supports controlled positioning, PID control, counters, frequency measurement, and up to 8 position-controlled positioning axes.

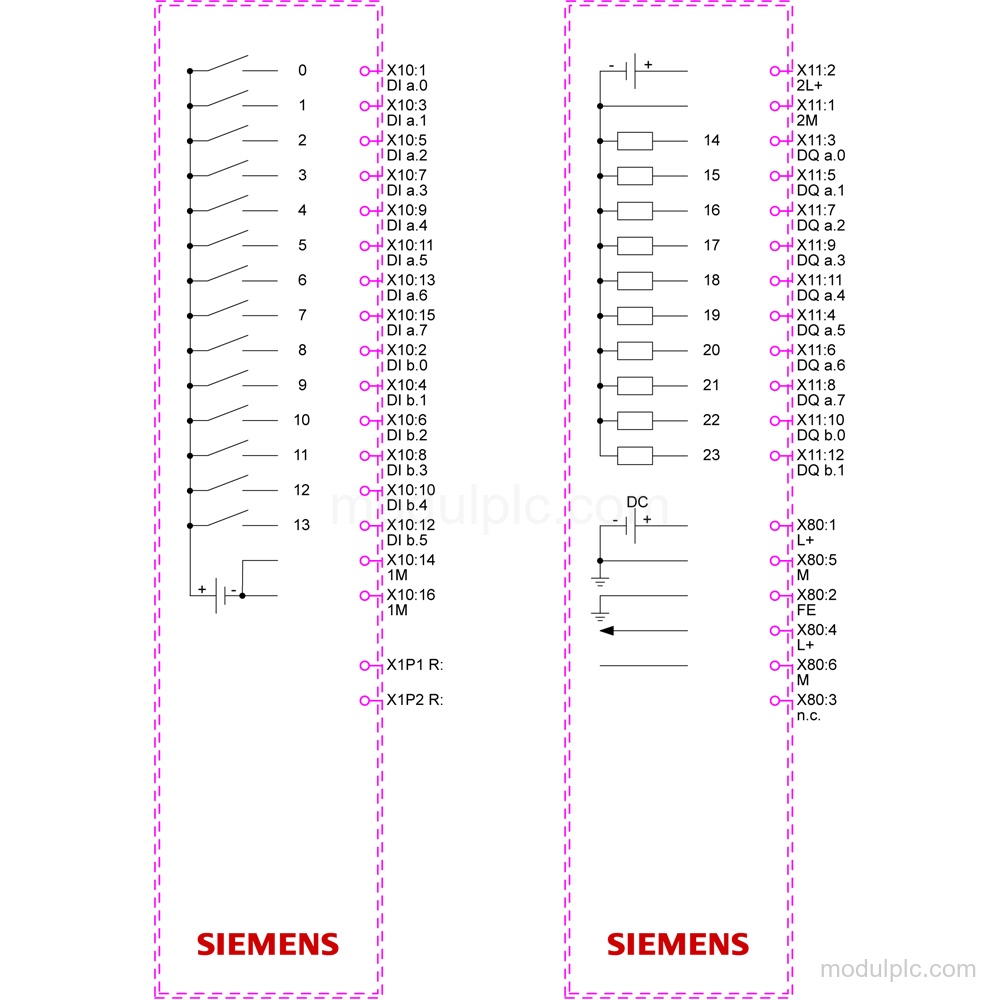

Key Features
- Failsafe compact CPU: CPU 1214FC DC/DC/DC with failsafe functionality.
- Integrated digital I/O: 14 integrated digital inputs at 24 V DC and 10 digital outputs at 24 V DC.
- PROFINET communication: One PROFINET interface with two ports and an integrated switch; transmission rate up to 100 Mbit/s.
- DC supply range: Rated supply is 24 V DC, with a permissible range from 20.4 V DC to 28.8 V DC.
- Program and data memory: Integrated work memory is 1 050 kbyte, including 300 kbyte for the program and 750 kbyte for data.
- Diagnostic functions: The CPU has I&M0 to I&M3 data, SysLog, a diagnostic buffer with up to 500 entries, and RUN/STOP, ERROR, and MAINT LEDs.
Frequently Asked Questions
1. How many digital inputs and outputs does 6ES7214-1AF50-0XB0 have?
It has 14 integrated digital inputs and 10 digital outputs, all at 24 V DC.
2. What PROFINET interface does this CPU provide?
It has 1 PROFINET interface with RJ 45 (Ethernet), X1, two ports, and a transmission rate up to 100 Mbit/s.
3. What supply voltage does the CPU use?
The rated supply is 24 V DC, with a permissible range from 20.4 V DC to 28.8 V DC.
4. What memory is integrated?
Integrated work memory is 1 050 kbyte: 300 kbyte for the program and 750 kbyte for data.
