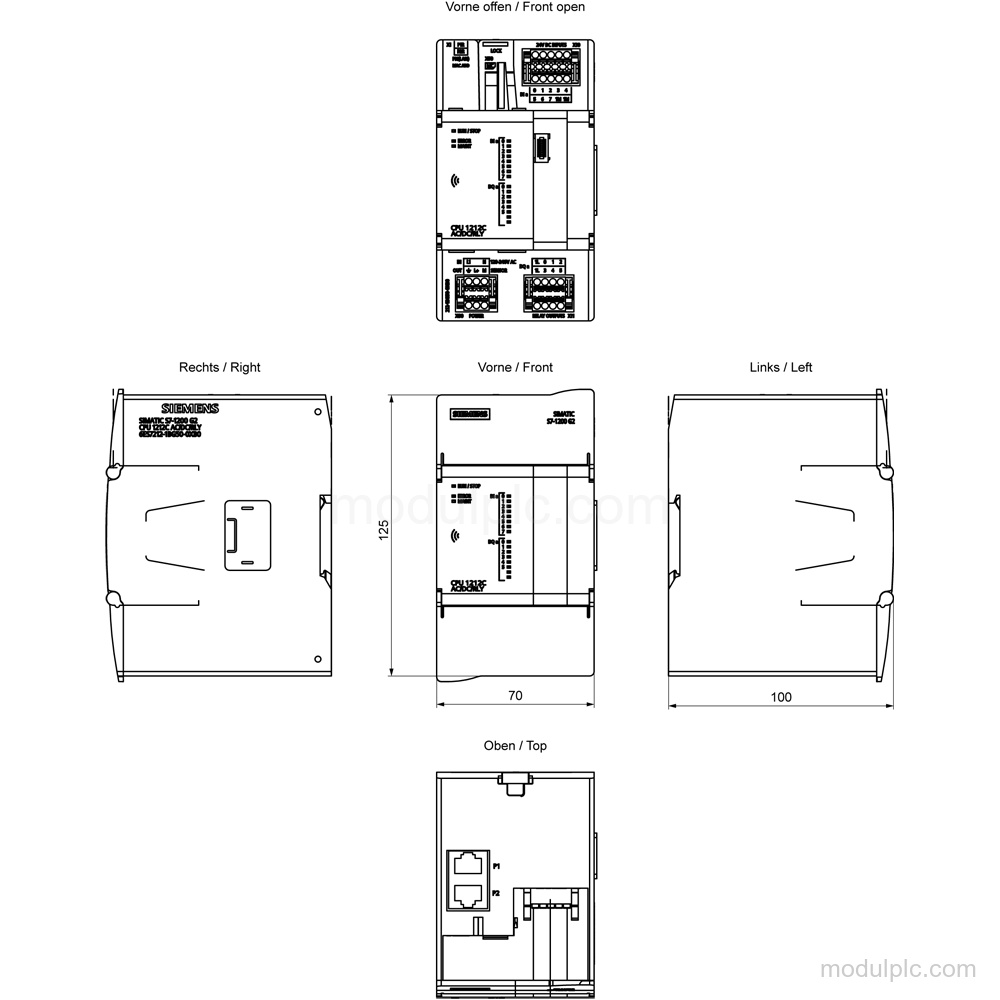

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1212C AC/DC/relay |
| Digital inputs | 8; Integrated; 24 V DC |
| Relay outputs | 6; up to 2 A with resistive load |
| Power supply | AC 85 V to 264 V; 47 Hz to 63 Hz |
| PROFINET interfaces | 1; 2 RJ 45 ports; up to 100 Mbit/s |
| Program memory | 150 kbyte |
| Data memory | 500 kbyte |
| Firmware version | V4.1 |
| Work memory | 650 kbyte integrated |
| Protection | IP20 |
Applications

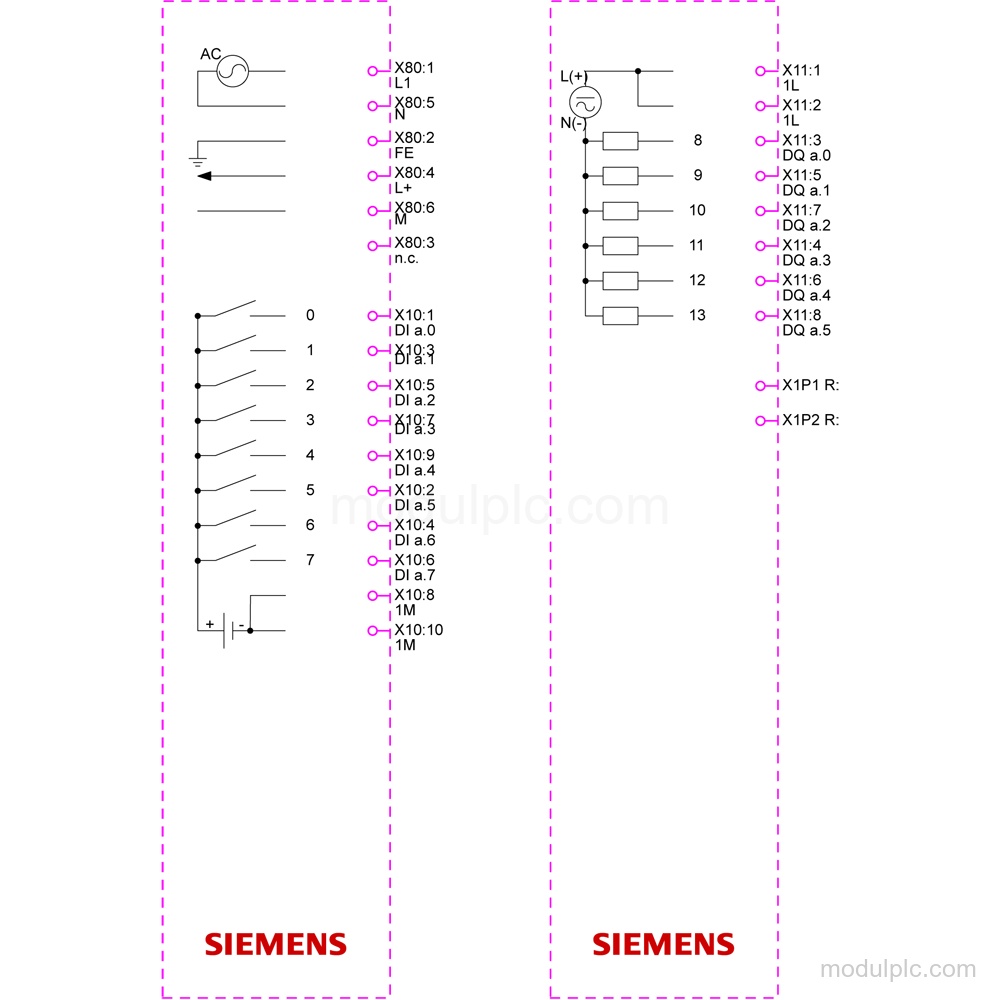

- Digital signal acquisition: Acquires digital signals through 8 integrated 24 V DC inputs.
- Relay output control: Controls loads through 6 relay outputs with switching capacity up to 2 A for resistive loads.
- Motion control: Supports Motion Control technology objects, controlled positioning, PID controller, and up to 8 position-controlled positioning axes.
Key Features
- Digital I/O: 8 integrated digital inputs for 24 V DC signals and 6 relay outputs.
- Relay output capacity: Relay outputs support up to 2 A with a resistive load.
- Power supply: AC supply permissible range: 85 V to 264 V at 47 Hz to 63 Hz.
- PROFINET interface: 1 PROFINET interface with 2 RJ 45 ports, integrated switch, and transmission rate up to 100 Mbit/s.
- Memory: Integrated work memory: 150 kbyte for program and 500 kbyte for data; load memory: 8 Mbyte.
- Diagnostics and firmware: Firmware version V4.1, SysLog, diagnostic buffer with up to 500 entries, and FW update possible.
Frequently Asked Questions
1. How many digital inputs and relay outputs does the 6ES7212-1BG50-0XB0 have?
It has 8 integrated digital inputs and 6 relay outputs.
2. What supply voltage and line frequency does this CPU support?
The permissible AC supply range is 85 V to 264 V at 47 Hz to 63 Hz.
3. Which PROFINET connection is provided?
It has 1 PROFINET interface with 2 RJ 45 ports, an integrated switch, and a maximum transmission rate of 100 Mbit/s.
4. What memory is available for the program and data?
Integrated work memory provides 150 kbyte for the program and 500 kbyte for data.
