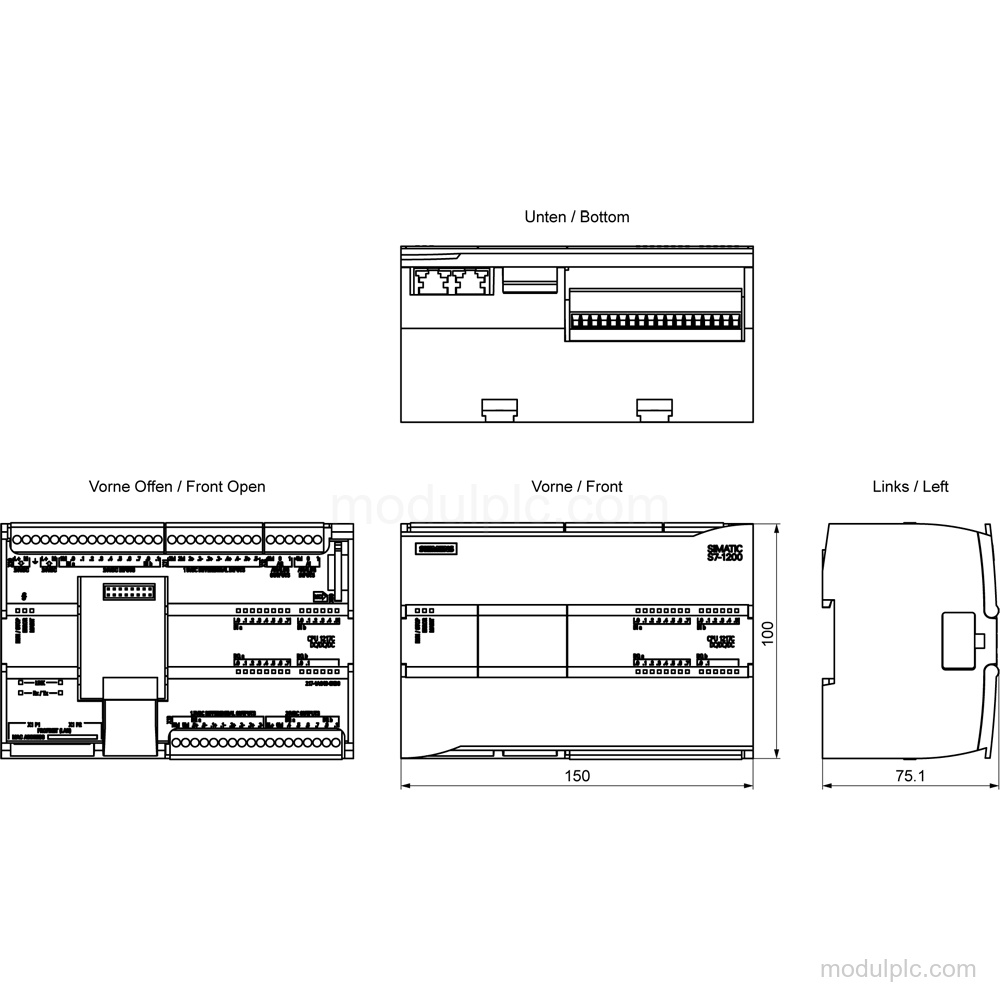

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1217C DC/DC/DC |
| Digital inputs | 14; Integrated |
| Digital outputs | 10 |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET ports | 2 RJ 45 Ethernet ports |
| Supply | 24 V DC; permissible range 20.4 to 28.8 V DC |
| Work memory | 250 kbyte |
| Load memory | 4 Mbyte |
| High-speed digital outputs | 4; 100 kHz Pulse Train Output |
| Analog output resolution | 10 bit with overrange |
| Protection | IP20 |
Applications
- PROFINET I/O communication: Supports PROFINET IO Controller and PROFINET IO Device communication.
- Digital signal processing: Provides integrated digital input acquisition and digital output control.
- Analog signal processing: Acquires 0 to +10 V signals and outputs 0 to 20 mA signals.
Key Features

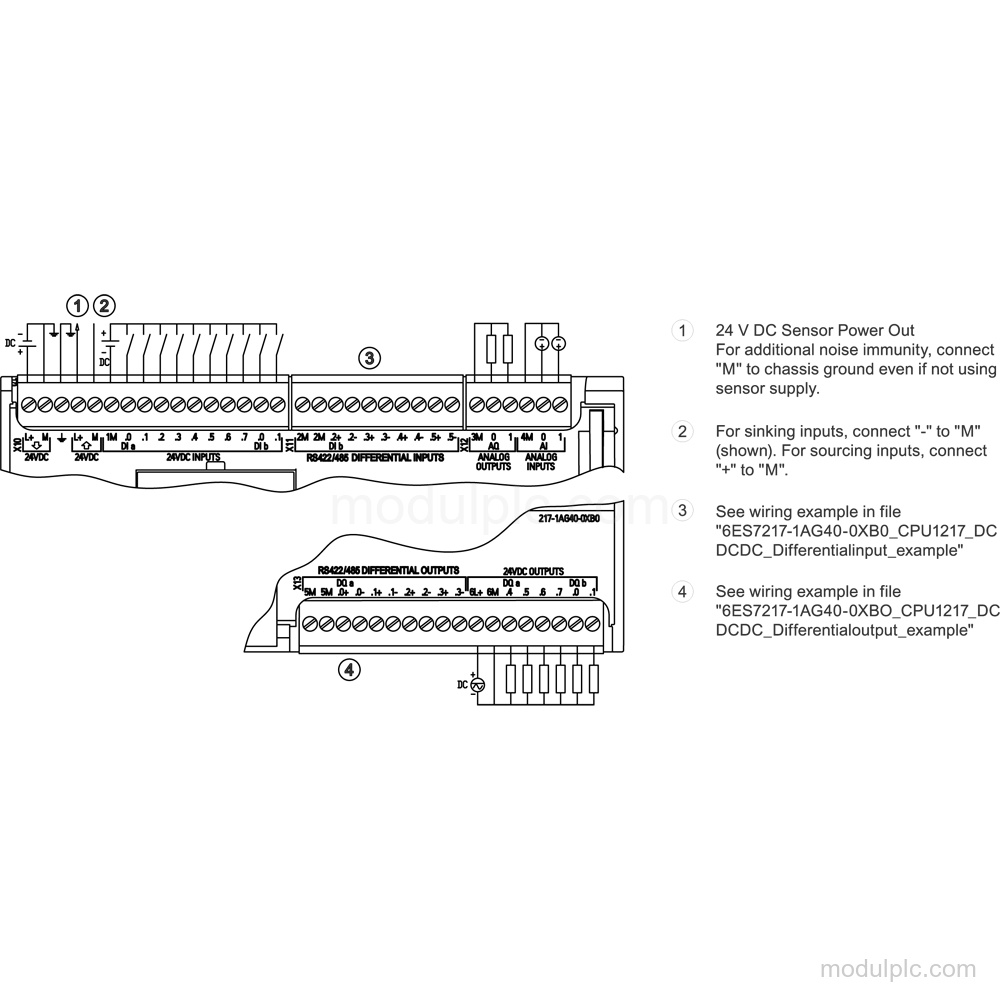

- Integrated I/O: 14 digital inputs, 10 digital outputs, 2 analog inputs for 0 to +10 V, and 2 analog outputs for 0 to 20 mA.
- PROFINET interfaces: 2 RJ 45 Ethernet ports with an integrated switch; PROFINET IO Controller and PROFINET IO Device are supported.
- Supply and memory: 24 V DC supply with a permissible range of 20.4 to 28.8 V DC, 250 kbyte integrated work memory, and 4 Mbyte integrated load memory.
- High-speed functions: 6 digital inputs are usable for HSC functions, 4 digital outputs support 100 kHz Pulse Train Output, and the maximum counting frequency is 1 MHz.
- Analog conversion: Analog outputs provide 10 bit resolution with overrange; conversion time is 625 μs per channel.
- Diagnostics and protection: The CPU has a diagnostic buffer, RUN/STOP, ERROR, and MAINT LEDs, reverse polarity protection, and IP20 protection.
Frequently Asked Questions
1. How many integrated digital and analog channels does the 6ES7217-1AG40-0XB0 have?
It has 14 digital inputs, 10 digital outputs, 2 analog inputs, and 2 analog outputs.
2. Which analog signal ranges does this CPU support?
The analog inputs support 0 to +10 V, and the analog outputs support 0 to 20 mA.
3. How many PROFINET ports are included?
It has 2 RJ 45 Ethernet ports with an integrated switch and supports PROFINET IO Controller and PROFINET IO Device.
4. What supply voltage does the CPU require?
The rated supply is 24 V DC, with a permissible range of 20.4 to 28.8 V DC.
5. What installation protection does it have?
The CPU has IP20 protection.
