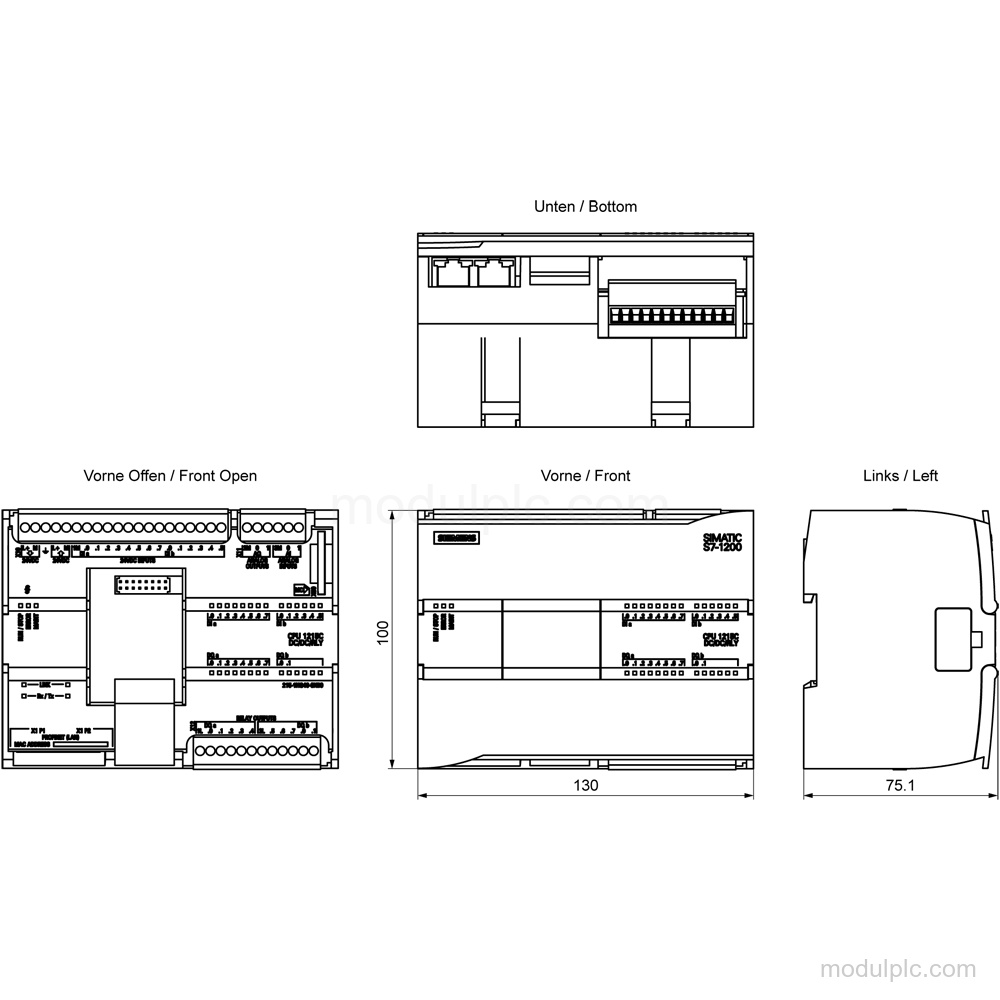

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1215C DC/DC/relay |
| Digital inputs | 14; Integrated |
| Digital outputs | 10; Relays |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET ports | 2; RJ 45 Ethernet, integrated switch |
| Supply | 24 V DC; permissible range 20.4 V to 28.8 V |
| Program/data memory | 200 KB |
| Load memory | 4 Mbyte; integrated |
| Protection | IP20 |
Applications
- PROFINET IO control: Supports PROFINET IO Controller and PROFINET IO Device communication, with up to 16 connectable IO Devices.
- Signal acquisition and output control: Provides integrated digital and analog inputs for signal acquisition and relay and analog outputs for signal control.
Key Features

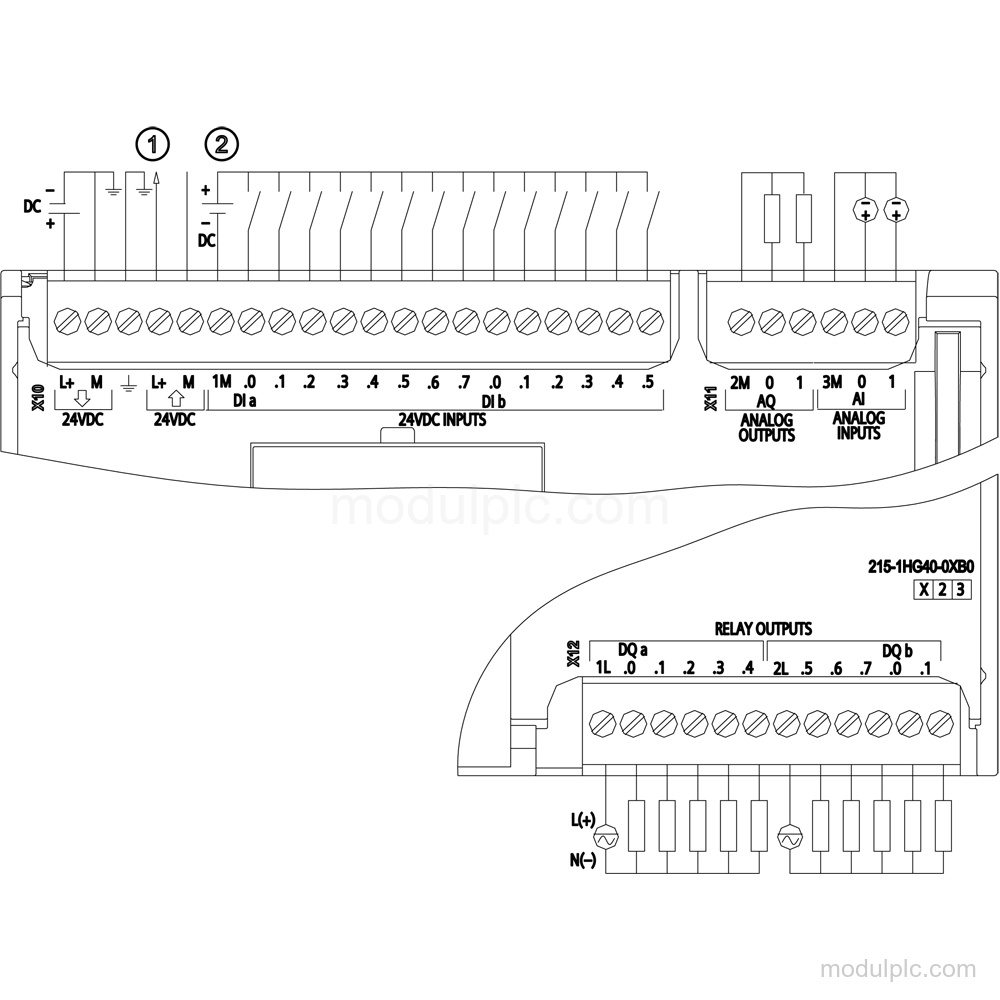

- Digital I/O: 14 integrated digital inputs at 24 V DC and 10 relay outputs with switching capacity up to 2 A for resistive loads.
- Analog I/O: 2 analog voltage inputs support 0 to +10 V, and 2 analog current outputs support 0 to 20 mA.
- PROFINET interfaces: 2 RJ 45 Ethernet ports with an integrated switch support PROFINET IO Controller and PROFINET IO Device functions.
- Processing and memory: Program/data memory is 200 KB, with 4 Mbyte integrated load memory and typical bit-operation processing time of 0.08 μs per instruction.
- Power supply: DC supply range is 20.4 V to 28.8 V; rated supply is 24 V DC, with reverse polarity protection.
- Diagnostics: Diagnostic buffer, configurable traces, and RUN/STOP, ERROR, and MAINT LEDs are available.
Frequently Asked Questions
1. How many I/O channels does the 6ES7215-1HG40-0XB0 have?
It has 14 integrated digital inputs, 10 relay outputs, 2 analog inputs, and 2 analog outputs.
2. Which analog signal ranges are supported?
The analog inputs support 0 to +10 V, and the analog outputs support 0 to 20 mA.
3. What interfaces and supply does this CPU use?
It has 2 RJ 45 Ethernet ports with an integrated switch and uses a 24 V DC supply with a permissible range of 20.4 V to 28.8 V.
