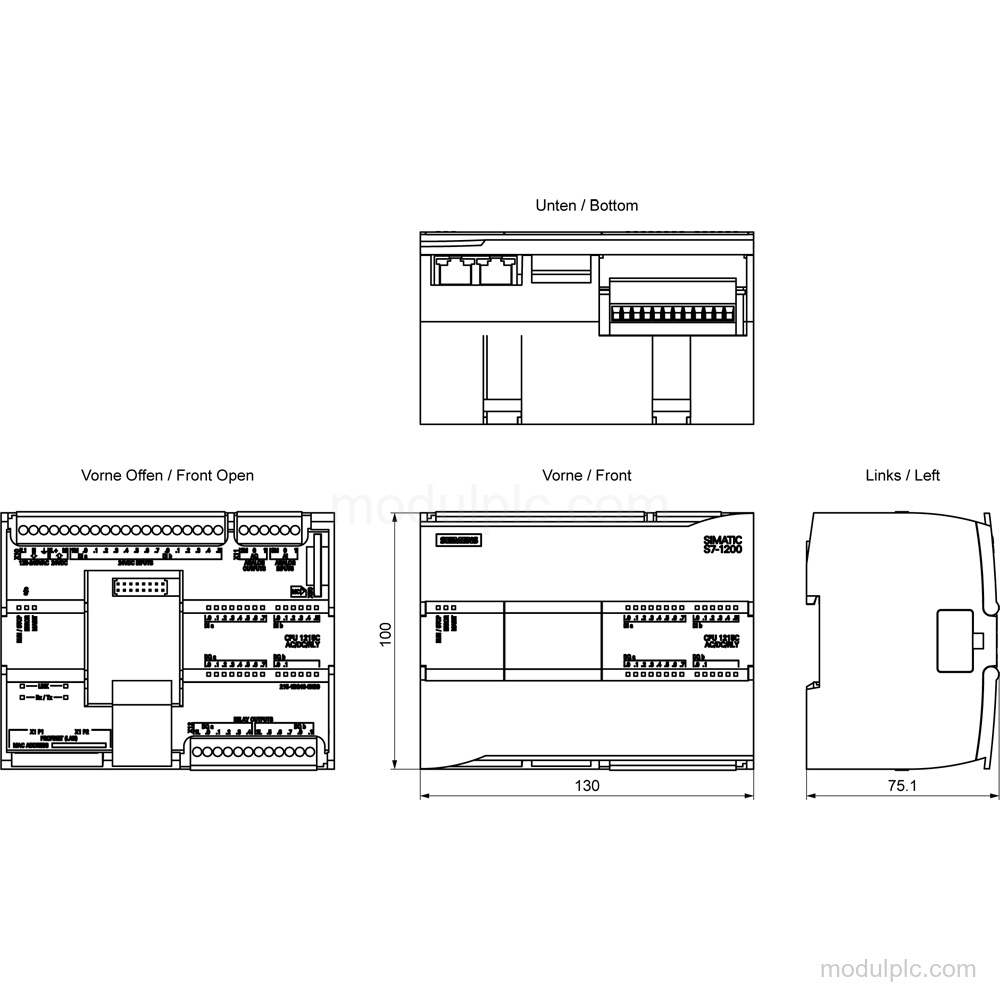

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1215C AC/DC/relay |
| Digital inputs | 14; 24 V DC |
| Digital outputs | 10; relays; 2 A with resistive load, max. |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET ports | 2 RJ 45 ports; integrated switch |
| PROFINET transmission rate | 100 Mbit/s, max. |
| Power supply | 85 V to 265 V AC; 47 Hz to 63 Hz |
| Work memory | 200 kbyte |
| Firmware version | V4.7 |
Applications
- Signal acquisition and output control: The CPU acquires digital and analog signals and controls relay and analog outputs.
- Controlled positioning: The CPU supports controlled positioning and up to 8 position-controlled positioning axes.
- PID control: The CPU provides PID controller support for control tasks.
- PROFINET communication: The CPU communicates as a PROFINET IO Controller and PROFINET IO device.
Key Features

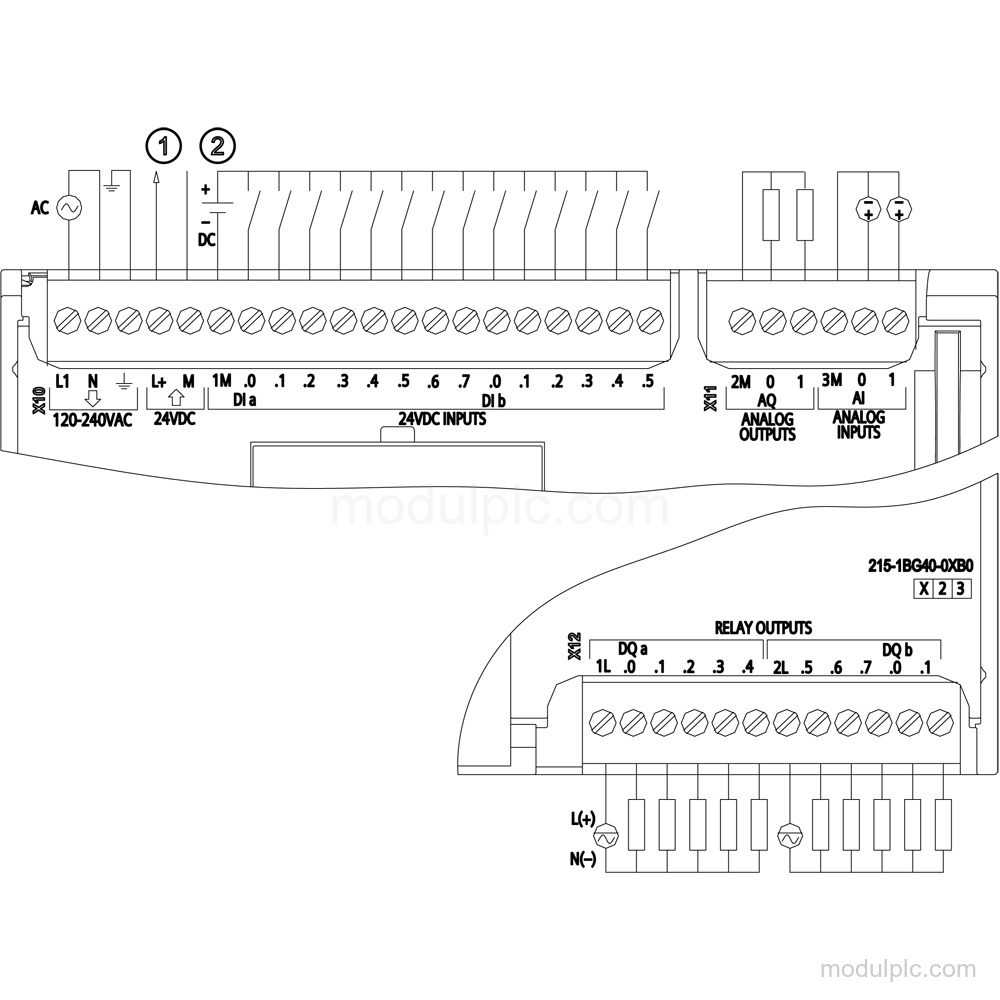

- Digital I/O: 14 integrated digital inputs at 24 V DC and 10 relay digital outputs.
- Analog I/O: 2 analog inputs support 0 to +10 V; 2 analog outputs support 0 to 20 mA.
- PROFINET interfaces: 2 RJ 45 ports with an integrated switch support PROFINET; transmission rate is up to 100 Mbit/s.
- Power supply: AC supply range: 85 V to 265 V AC at 47 Hz to 63 Hz.
- Memory: Integrated work memory is 200 kbyte; integrated load memory is 4 Mbyte.
- Diagnostics and control: The CPU has a diagnostic buffer, RUN/STOP, ERROR and MAINT LEDs, 6 counters, and PID controller support.
Frequently Asked Questions
1. How many digital and analog I/O channels does the 6ES7215-1BG40-0XB0 have?
It has 14 digital inputs, 10 relay digital outputs, 2 analog inputs and 2 analog outputs.
2. Which analog signal ranges are supported?
The analog inputs support 0 to +10 V, and the analog outputs support 0 to 20 mA.
3. What PROFINET connection does this CPU provide?
It provides 2 RJ 45 ports, an integrated switch and a maximum transmission rate of 100 Mbit/s.
4. What supply voltage and frequency are specified?
The permissible AC supply range is 85 V to 265 V AC at 47 Hz to 63 Hz.
5. What should be verified before requesting a quote?
Verify the exact order number, I/O channel configuration, signal ranges, PROFINET requirements, supply conditions and installation details.
