Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1215C DC/DC/DC |
| Digital inputs | 14; 24 V DC |
| Digital outputs | 10; 24 V DC; 0.5 A |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET ports | 2 RJ45 Ethernet ports |
| Supply | 24 V DC; 20.4 V to 28.8 V permissible range |
| Work memory | 200 kbyte |
| Load memory | 4 Mbyte |
| Communication protocols | PROFINET IO, SIMATIC communication, OPC UA, MODBUS, TCP/IP |
| High-speed outputs | 4; 100 kHz Pulse Train Output |
| Protection | IP20 |
Applications
- PROFINET I/O control: Supports PROFINET IO Controller and PROFINET IO Device communication.
- OPC UA data exchange: Provides an OPC UA Server with data access, subscriptions and method calls; a "Basic" runtime license is required.
- Pulse and positioning functions: Supports controlled positioning, 4 pulse outputs and up to 8 position-controlled positioning axes.
Key Features

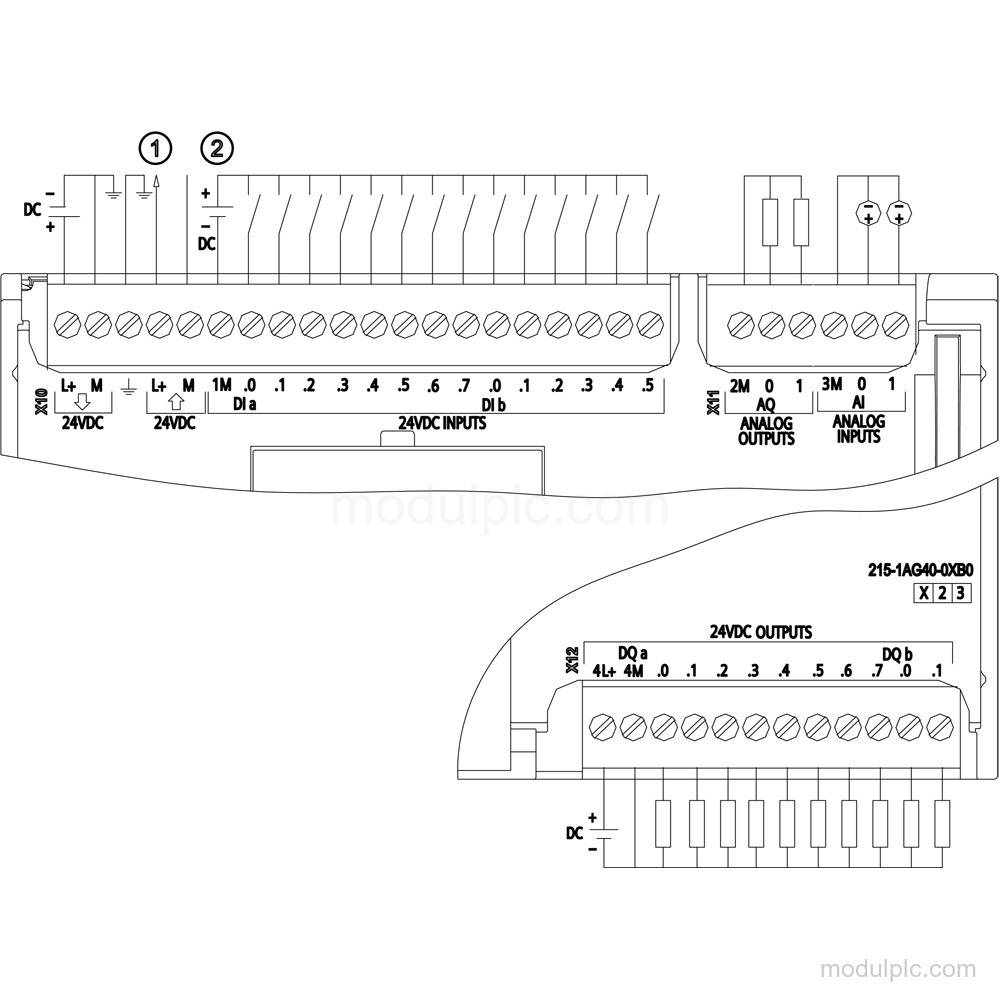

- Integrated I/O: 14 digital inputs at 24 V DC, 10 digital outputs at 24 V DC and 0.5 A, 2 analog inputs at 0 to +10 V, and 2 analog outputs at 0 to 20 mA.
- PROFINET interfaces: 2 RJ45 Ethernet ports with an integrated switch; PROFINET IO Controller and PROFINET IO Device are supported.
- Supply voltage: DC supply rated at 24 V DC, with a permissible range from 20.4 V to 28.8 V.
- Processing and memory: Integrated work memory: 200 kbyte. Integrated load memory: 4 Mbyte. Typical execution time is 0.08 μs per instruction for bit operations.
- Diagnostics and control: Diagnostic buffer, RUN/STOP LED, ERROR LED, MAINT LED, forcing, PID controller and 6 counters are supported.

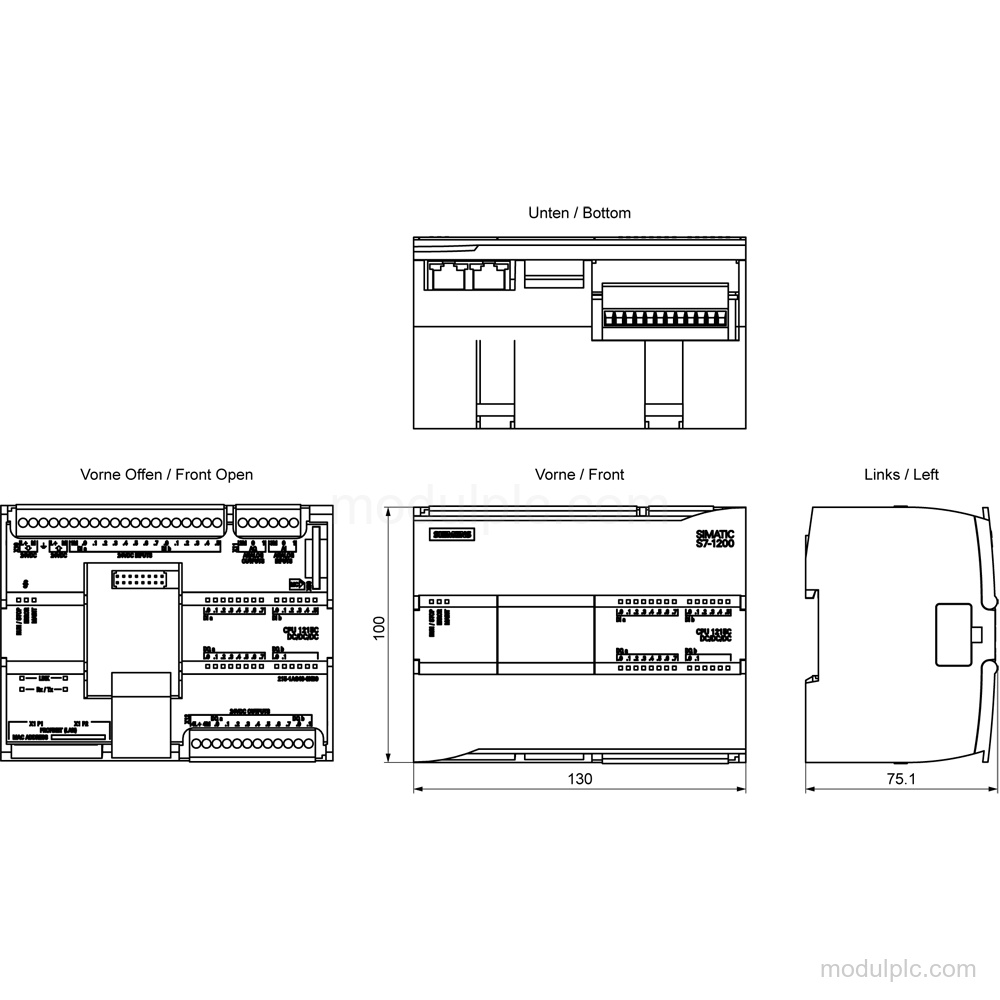

- Mounting and protection: Up to 14 modules are supported in all mounting positions up to 40 °C. Degree of protection: IP20.
Frequently Asked Questions
1. What I/O does the 6ES7215-1AG40-0XB0 have?
It has 14 digital inputs, 10 digital outputs, 2 analog inputs and 2 analog outputs.
2. What analog signal ranges are supported?
The analog inputs support 0 to +10 V, and the analog outputs support 0 to 20 mA.
3. How many PROFINET connections are provided?
It has 2 RJ45 Ethernet ports with an integrated switch and supports PROFINET IO Controller and PROFINET IO Device.
4. What supply voltage does this CPU use?
The supply is rated at 24 V DC, with a permissible range from 20.4 V to 28.8 V.
