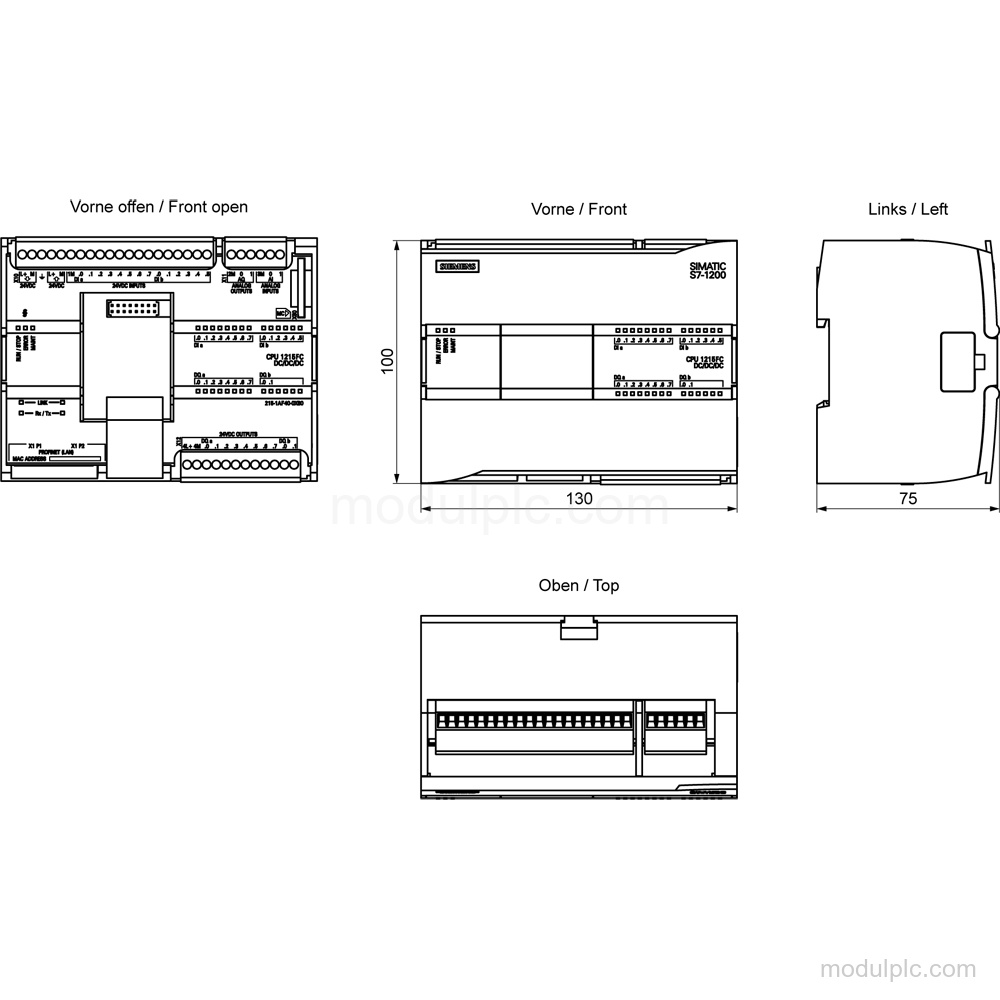

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1215FC DC/DC/DC |
| Digital inputs | 14 integrated; 6 usable for HSC |
| Digital outputs | 10; 4 high-speed outputs, 100 kHz Pulse Train Output |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET ports | 2 RJ 45 ports; integrated switch |
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V |
| Work memory | 250 kbyte integrated |
| Load memory | 4 Mbyte integrated |
| Processing time, bit operations | 0.08 μs typical per instruction |
| Protection | IP20 |
| Programming package | STEP 7 V20 or higher |

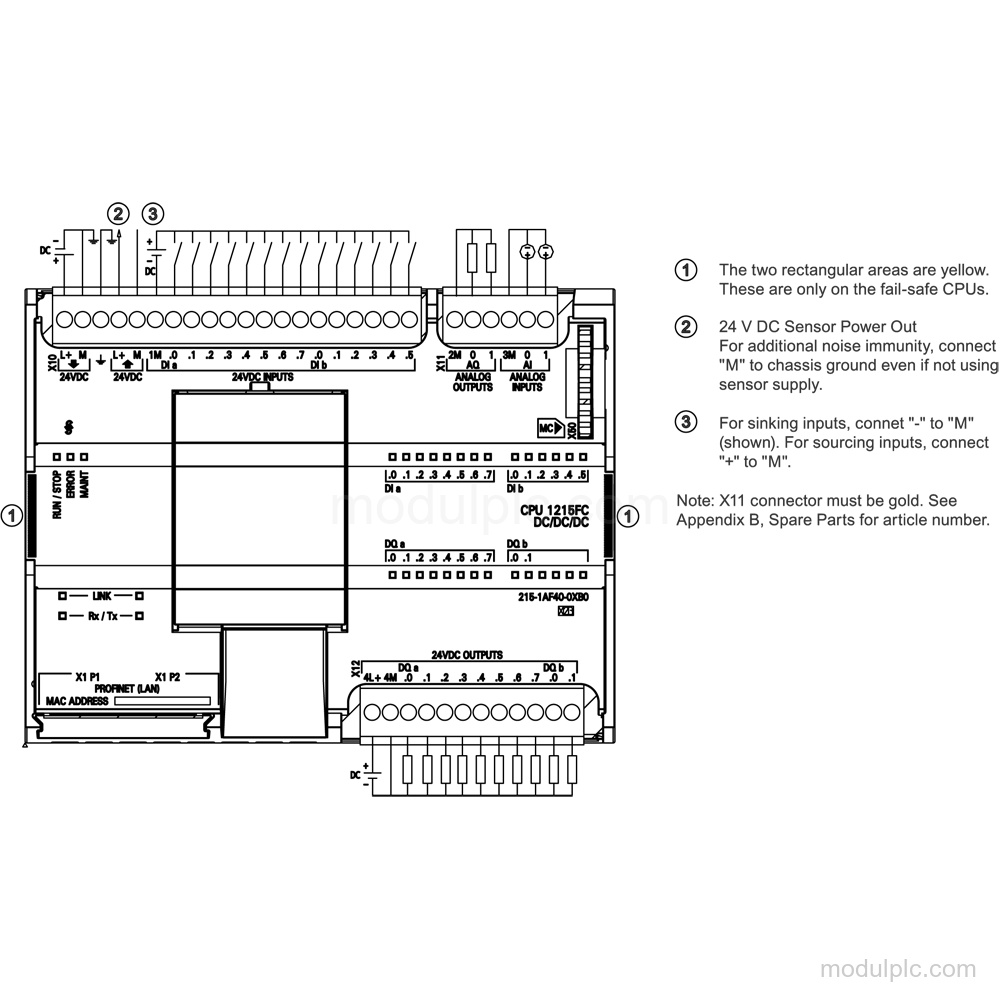

Applications
- Digital signal acquisition and output control: Acquires signals through 14 digital inputs and controls loads through 10 digital outputs.
- Analog signal acquisition and output: Acquires 0 to +10 V signals and provides 0 to 20 mA analog outputs.
- PROFINET data communication: Operates as a PROFINET IO Controller and PROFINET IO Device through its 2 PROFINET ports.
- Position-controlled positioning: Supports controlled positioning with up to 8 position-controlled positioning axes and 4 positioning axes via pulse-direction interface.
Key Features
- Digital I/O: Has 14 integrated digital inputs and 10 digital outputs; 6 inputs support HSC and 4 outputs are 100 kHz Pulse Train Outputs.
- Analog I/O: Has 2 analog inputs for 0 to +10 V and 2 analog outputs for 0 to 20 mA.
- PROFINET communication: Has 2 RJ 45 ports with an integrated switch and supports PROFINET IO Controller and PROFINET IO Device.
- Supply and memory: Uses a 24 V DC supply with a permissible range of 20.4 V to 28.8 V, 250 kbyte integrated work memory, and 4 Mbyte integrated load memory.
- Diagnostics and timing: Has a diagnostic buffer, RUN/STOP, ERROR, and MAINT LEDs, 2 configurable traces with 512 kbyte maximum memory per trace, and 0.08 μs typical bit-operation processing time.
- Protection and isolation: Has IP20 protection; digital inputs have no potential separation, while digital outputs have potential separation between groups of 1 channel.
Frequently Asked Questions
1. How many I/O channels does Siemens 6ES7215-1AF40-0XB0 have?
It has 14 digital inputs, 10 digital outputs, 2 analog inputs, and 2 analog outputs. Six digital inputs support HSC, and 4 digital outputs support 100 kHz Pulse Train Output.
2. Which analog signal ranges does the CPU support?
The 2 analog inputs support 0 to +10 V, and the 2 analog outputs support 0 to 20 mA.
3. Which communication interfaces and protocols are available?
It has 2 RJ 45 PROFINET ports with an integrated switch and supports PROFINET IO Controller, PROFINET IO Device, PROFIsafe, OPC UA, TCP/IP, and MODBUS.
4. What supply voltage does this CPU require?
The rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
5. What diagnostic features are included?
It has a diagnostic buffer, RUN/STOP, ERROR, and MAINT LEDs, and 2 configurable traces with up to 512 kbyte memory per trace.
