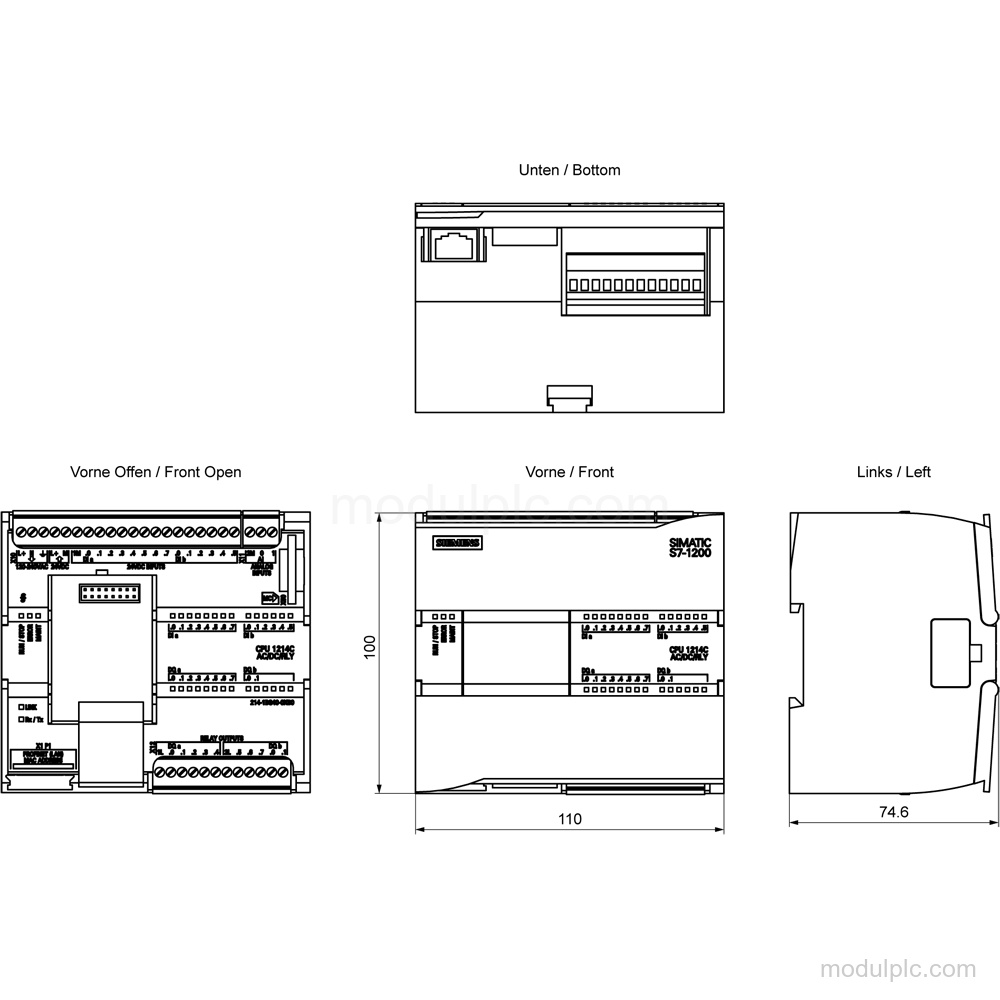

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1214C AC/DC/relay |
| Digital inputs | 14; integrated; 24 V DC rated value |
| Digital outputs | 10; relay; 2 A with resistive load, max. |
| Analog inputs | 2; 0 to +10 V |
| Analog input resolution | 10 bit with overrange, max. |
| Power supply | AC 85-264 V AC; 47-63 Hz |
| PROFINET interfaces | 1; isolated; RJ 45 |
| PROFINET transmission rate | 100 Mbit/s, max. |
| Work memory | 150 kbyte, integrated |
| Firmware version | V4.7 |
Applications
- Digital signal processing: Processes digital inputs and controls relay outputs.
- PROFINET communication: Supports PROFINET IO Controller and PROFINET IO Device communication.
- Analog signal acquisition: Acquires voltage signals from 0 to +10 V through 2 analog inputs.
Key Features

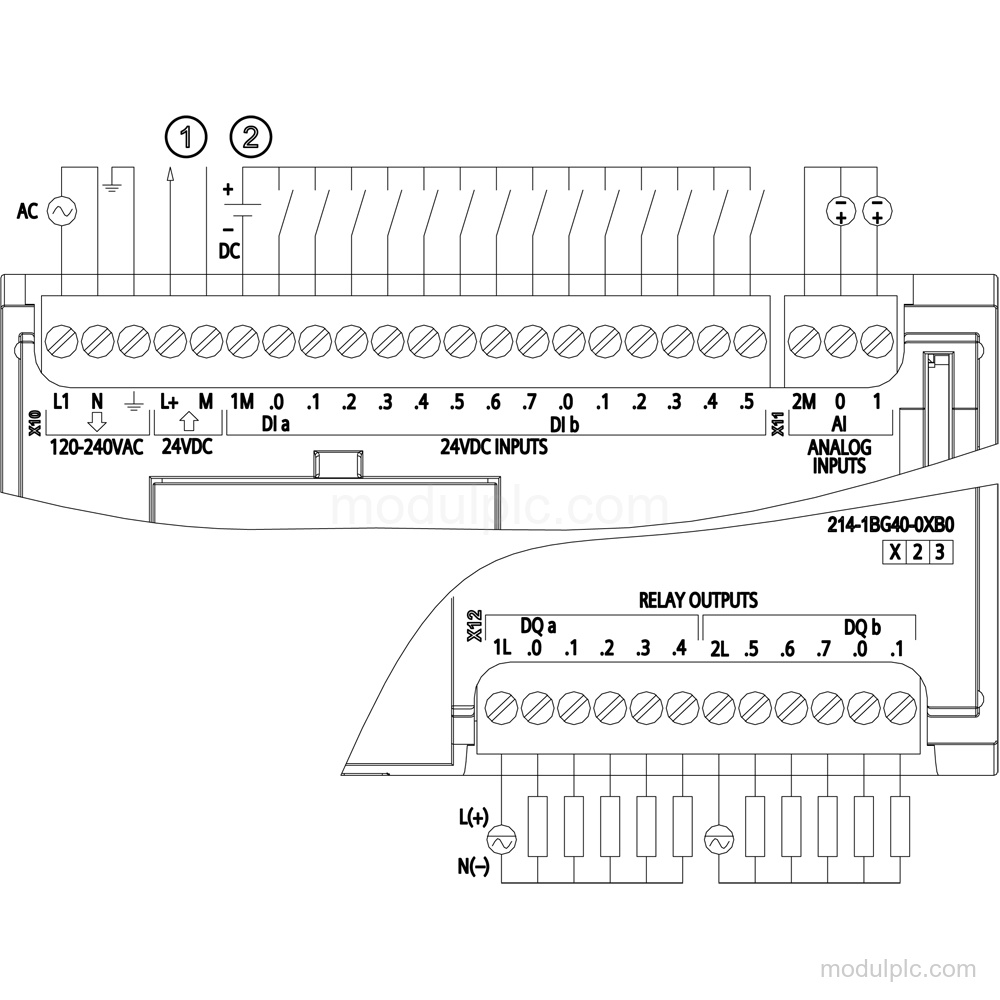

- Digital I/O: 14 integrated digital inputs with 24 V DC rated value and 10 relay outputs.
- Analog inputs: 2 analog voltage inputs with a rated range of 0 to +10 V and 10 bit resolution with overrange.
- Power supply: AC 85-264 V AC at 47-63 Hz; typical power loss is 14 W.
- PROFINET interface: 1 isolated PROFINET interface with RJ 45 connection and transmission rate up to 100 Mbit/s.
- Memory: 150 kbyte integrated work memory and 4 Mbyte integrated load memory.
- Diagnostics and control: Diagnostic buffer, RUN/STOP, ERROR and MAINT LEDs, 6 counters, and PID controller.
Frequently Asked Questions
1. How many digital inputs and relay outputs does 6ES7214-1BG40-0XB0 have?
It has 14 integrated digital inputs and 10 relay outputs.
2. What analog signal range is supported?
The 2 analog inputs support 0 to +10 V and have 10 bit resolution with overrange, max.
3. What power supply does this CPU use?
The supply range is AC 85-264 V AC at 47-63 Hz.
4. Which communication interface is provided?
It has 1 isolated PROFINET interface with an RJ 45 connection and transmission rate up to 100 Mbit/s.
5. What mounting and connection details should be verified before inquiry?
Verify the required signal wiring, cable lengths, and system configuration before requesting a quote.
