Product Overview
Technical Summary
| Parameter | Value |
|---|---|

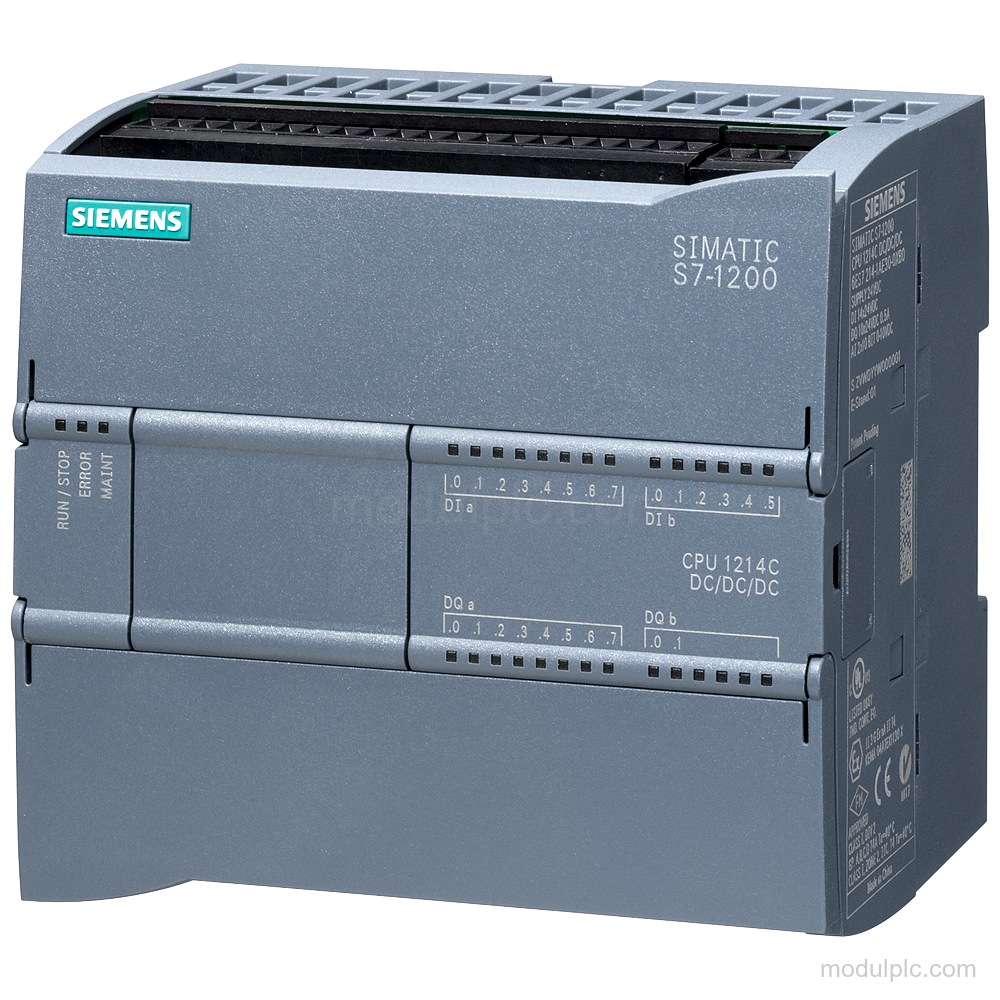

| Product type | CPU 1214C DC/DC/DC |
| Digital inputs | 14; 24 V DC |
| Digital outputs | 10; 24 V DC |
| Analog inputs | 2; 0 to +10 V |
| Supply range | 20.4 V to 28.8 V DC |
| PROFINET interfaces | 1; isolated; RJ 45 |
| Work memory | 150 kbyte |
| Load memory | 4 Mbyte |
| High-speed outputs | 4; 100 kHz Pulse Train Output |
| Firmware version | V4.7 |
| Protection | IP20 |
Applications
- Controlled positioning: Supports controlled positioning with up to 8 position-controlled positioning axes and 4 positioning axes via pulse-direction interface.
- PID control: Provides a PID controller and 4 alarm inputs.
- PROFINET communication: Supports PROFINET IO Controller and PROFINET IO Device communication.
Key Features

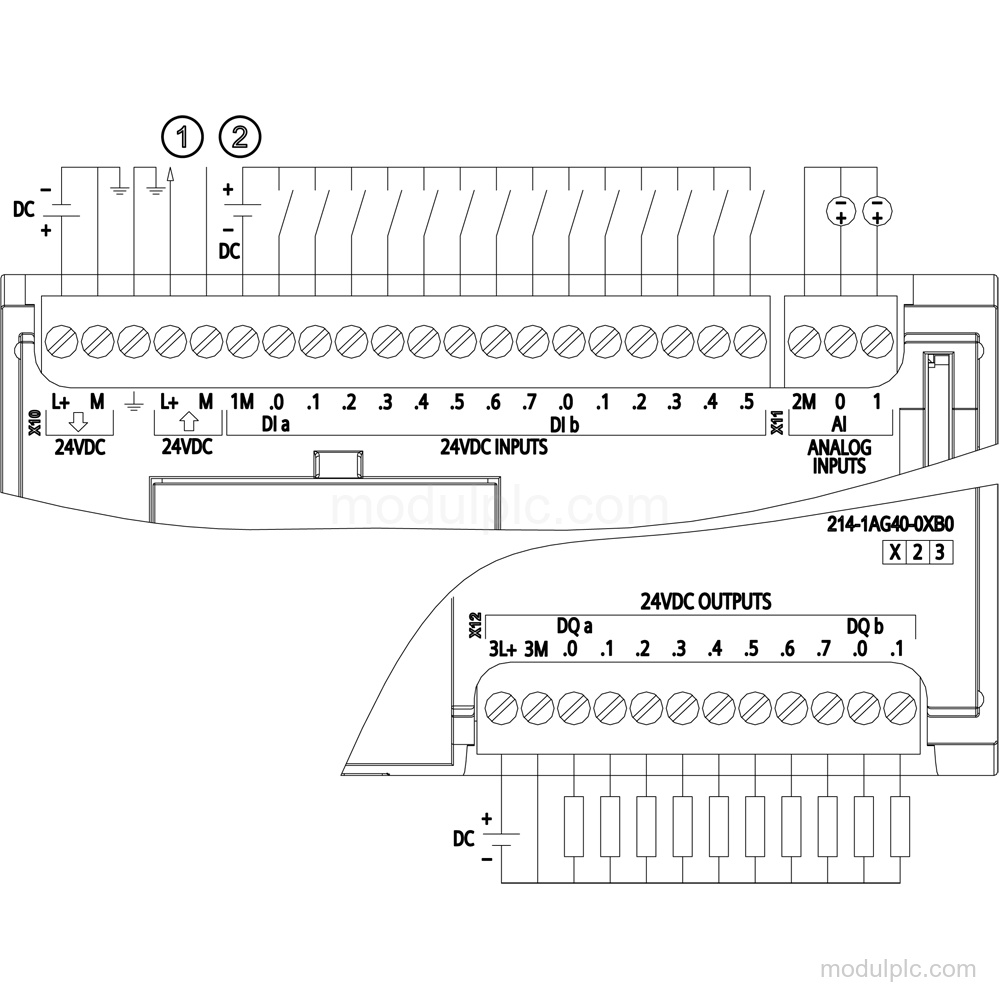

- Onboard I/O: 14 digital inputs at 24 V DC, 10 digital outputs at 24 V DC, and 2 analog inputs with a 0 to +10 V range.
- Supply and memory: DC supply range: 20.4 V to 28.8 V DC. Integrated work memory: 150 kbyte; integrated load memory: 4 Mbyte.
- PROFINET interface: 1 isolated PROFINET interface with 1 RJ 45 port, automatic transmission-rate detection, autonegotiation, and autocrossing.
- High-speed functions: 6 digital inputs are usable for HSC functions, and 4 digital outputs provide 100 kHz Pulse Train Output.
- Diagnostics and isolation: Diagnostic buffer, configurable traces, RUN/STOP, ERROR, and MAINT LEDs; digital outputs have potential separation, while digital inputs do not.

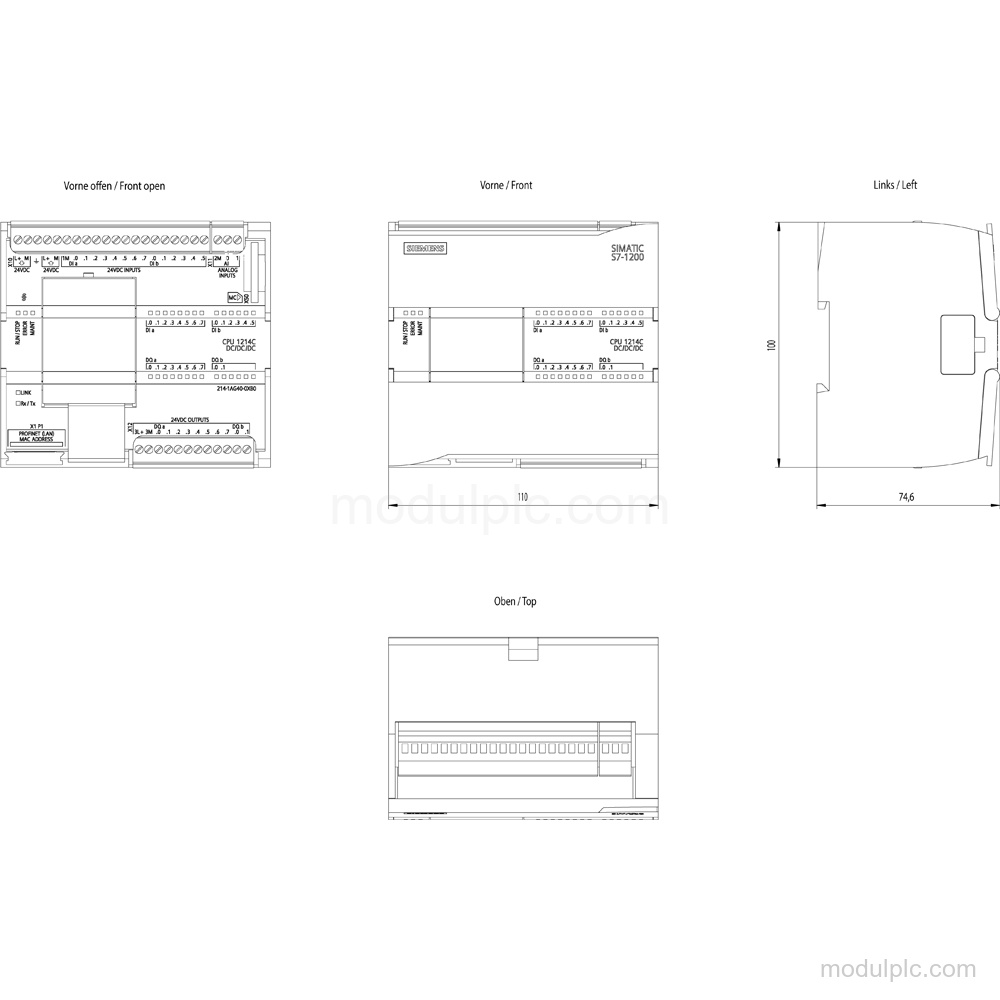

- Installation limits: All mounting positions: 14 up to 40 °C. Shielded cable length is up to 500 m, or 50 m for technological functions.
Frequently Asked Questions
1. How many onboard I/O channels does 6ES7214-1AG40-0XB0 have?
It has 14 digital inputs, 10 digital outputs, and 2 analog inputs. It has no analog outputs and 0 relay outputs.
2. What analog input range does the CPU 1214C support?
Its 2 analog inputs support 0 to +10 V, with an input resistance of ≥100k ohms.
3. Which interface and protocols are supported?
It has 1 isolated PROFINET interface with 1 RJ 45 port. Supported protocols include PROFINET IO, PROFIBUS with the required CM module, OPC UA, TCP/IP, MODBUS, and S7 communication.
4. What supply voltage does the module require?
The DC supply range is 20.4 V to 28.8 V DC, with a rated value of 24 V DC.
5. What should be verified before requesting a quote?
Verify the required I/O channels, signal ranges, communication protocols, mounting conditions, and cable lengths for the intended configuration.
