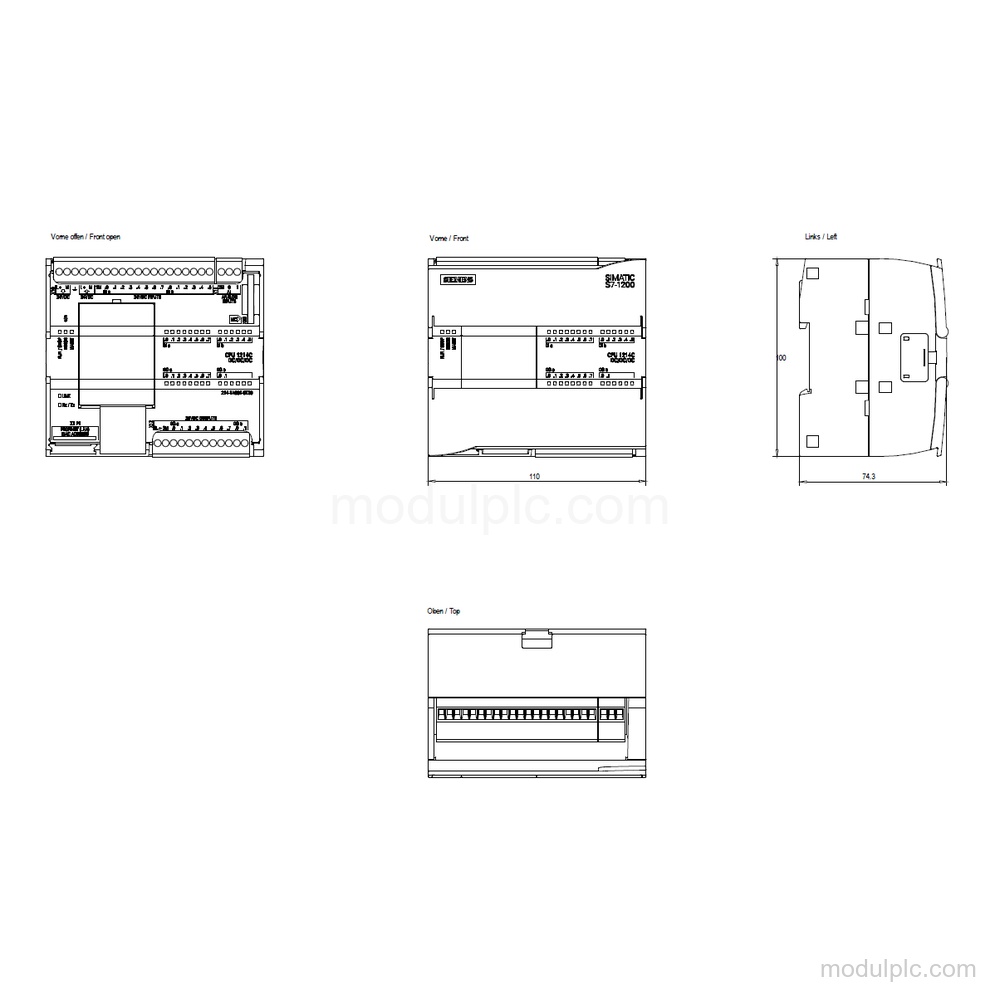

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1214C DC/DC/DC |
| Digital inputs | 14; 6 usable for HSC (High Speed Counting) |
| Digital outputs | 10; 4 high-speed outputs with 100 kHz Pulse Train Output |
| Analog inputs | 2; 0 to +10 V |
| PROFINET interfaces | 1; RJ 45 (Ethernet) |
| Supply | 24 V DC; permissible range 20.4 V to 28.8 V |
| Work memory | 75 kbyte |
| Load memory | 4 Mbyte |
| Conversion time per analog channel | 625 μs |
| Protection | IP20 |
Applications
- High-speed counting: 6 digital inputs are usable for HSC (High Speed Counting) technological functions.
- Controlled positioning: Controlled positioning is supported.
- PID control: PID controller functionality is supported.
Key Features
- Integrated I/O: 14 integrated digital inputs, 10 digital outputs, and 2 analog inputs for 0 to +10 V.
- PROFINET interface: 1 isolated PROFINET interface with RJ 45 Ethernet connection and PROFINET IO Controller support.
- Supply voltage: 24 V DC rated supply with a permissible range of 20.4 V to 28.8 V.
- High-speed functions: 6 digital inputs support HSC functions, and 4 digital outputs support 100 kHz Pulse Train Output.
- Memory: 75 kbyte integrated work memory and 4 Mbyte integrated load memory.
- Diagnostics and protection: The CPU has a diagnostic buffer, maintenance-free backup without a battery, and IP20 protection.
Frequently Asked Questions
1. How many integrated inputs and outputs does 6ES7214-1AG31-0XB0 have?
It has 14 digital inputs, 10 digital outputs, and 2 analog inputs.
2. Which analog input range does the CPU support?
The analog inputs support 0 to +10 V, with an input resistance of ≥100k ohms.
3. What communication interface is available?
It has 1 isolated PROFINET interface with an RJ 45 (Ethernet) connection.
4. What supply voltage does this CPU require?
The rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
