Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Power cable |
| Connector | 1x M8 female connector, 4-pole, single-sided assembled |
| Electrical cores | 4 |
| Suitability | Connection to ET 200AL for 24 V DC power supply |
| Protection | IP65/67 |
| Assembly ambient temperature | -30 °C to 80 °C |
| Cable designation | 4 Li9Y 0.50 mm2 Y |
| Cable outlet | 180° cable outlet |
| Continuous bending radius | 52 mm |
| Cable sheath material | PVC |
| Core insulation material | PP |
Applications
- ET 200AL 24 V DC power connection: Connects ET 200AL for 24 V DC power supply.
Key Features

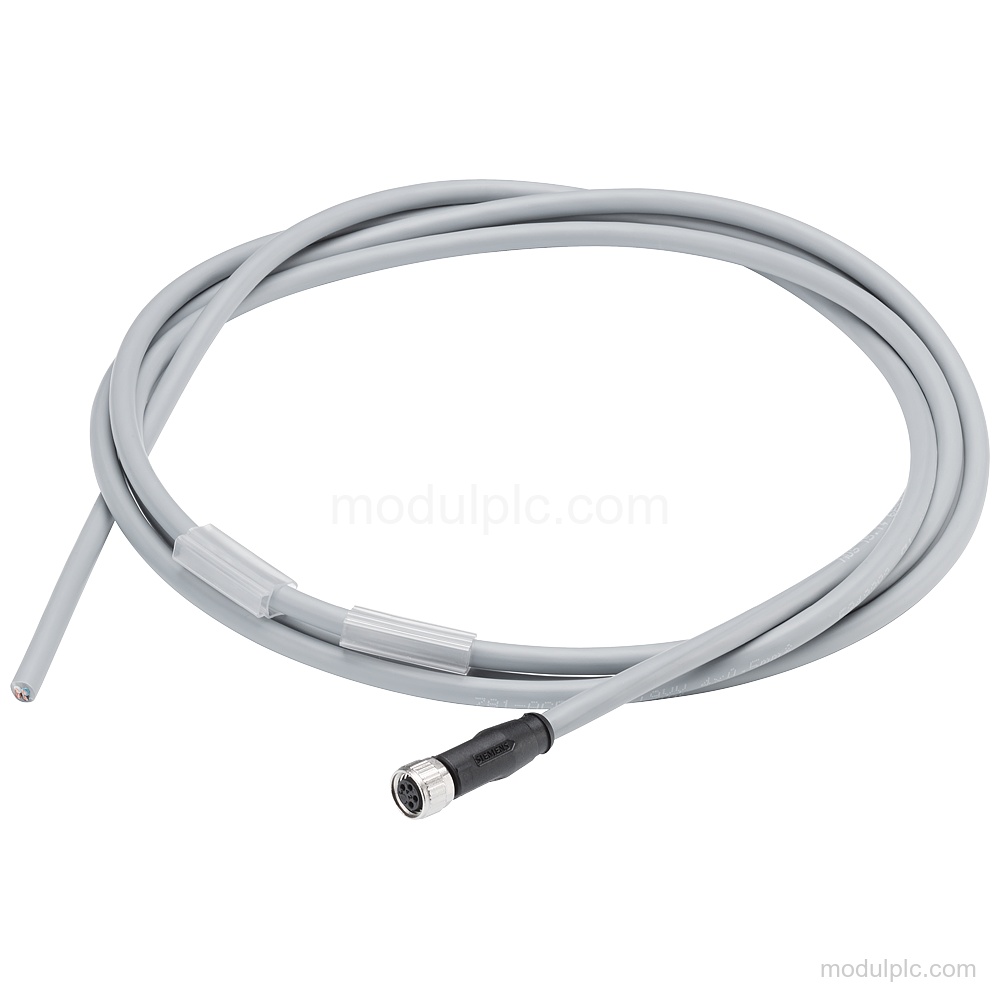

- Power cable type: Flexible 4-core power cable, single-sided assembled with 1x M8 female connector.
- Cable length and cores: Cable length: 5 m; number of electrical cores: 4.
- ET 200AL power connection: For connection to ET 200AL for 24 V DC power supply.
- Protection and assembly temperature: IP65/67; ambient temperature during assembly: -30 °C to 80 °C.
- Bending performance: Cable carrier compliant for 2 500 000 bending cycles with a bending radius of 52 mm, a speed of 3 m/s and an acceleration of 10 m/s2.
- Cable construction: Gray PVC cable sheath, PP core insulation, 180° cable outlet, and silicone-free construction.
Frequently Asked Questions
1. What is the function of Siemens 6ES7194-2LH50-1AC0?
It is a flexible power cable for connection to ET 200AL for 24 V DC power supply.
2. What connector and cable length does it have?
It has 1x M8 female connector, 4-pole, single-sided assembled, and a 5 m cable length.
3. How many electrical cores does the cable have?
It has 4 electrical cores.
4. What protection rating does the cable have?
The cable has IP65/67 protection.
5. What should be verified before requesting a quote?
Verify the 4-pole M8 female connector, 5 m length, 24 V DC power-supply connection, and installation requirements.
