Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Power connector |
| Connector type | M8, 4-pole |
| Socket insert | 4-pin, plastic version |
| Protection | IP65/67 |
| Electrical connection | Screw terminals |
| Cable cross-section | 0.14 mm2 to 0.5 mm2 |
| Cable diameter | 4 mm to 5.5 mm |
Applications
- 24 V DC power connection: Connection to ET 200AL for 24 V DC power supply.
Key Features
- Power connector: M8 plug connector with a 4-pin plastic socket insert for power connection.
- ET 200AL power connection: Suitable for connection to ET 200AL for 24 V DC power supply.
- Protection: IP degree of protection: IP65/67.
- Connection method: M8, 4-pole connector with screw terminals; connectable cable cross-section: 0.14 mm2 to 0.5 mm2.
- Cable accommodation: Suitable for cable diameters from 4 mm to 5.5 mm and AWG conductor sizes 26 to 20.

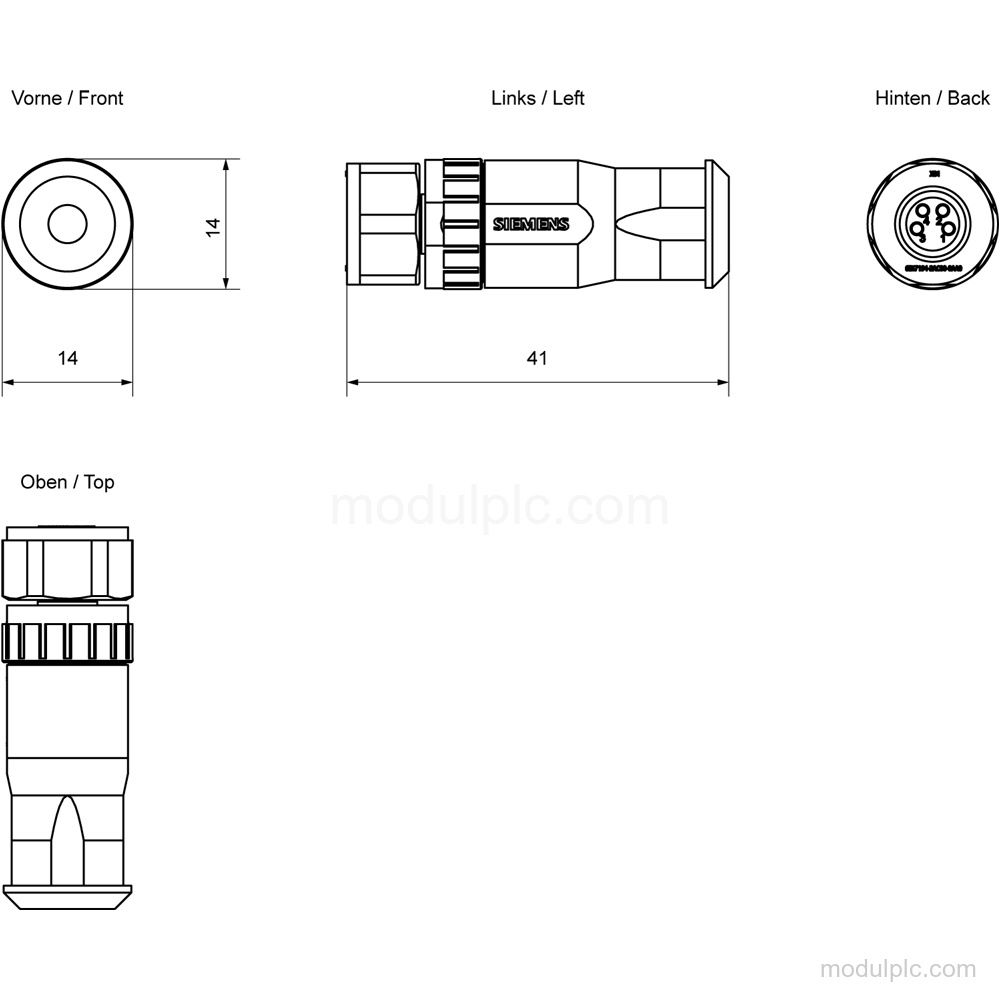

- Dimensions and outlet: Width: 14 mm; depth: 47 mm; 180° cable outlet.
Frequently Asked Questions
1. What is Siemens 6ES7194-2AC00-0AA0?
It is an M8 power connector with a 4-pole plastic socket insert.
2. What connection is this M8 power connector suitable for?
It is suitable for connection to ET 200AL for 24 V DC power supply.
3. What terminals and cable sizes does it support?
It has screw terminals and supports cable cross-sections from 0.14 mm2 to 0.5 mm2, AWG conductor sizes 26 to 20, and cable diameters from 4 mm to 5.5 mm.
4. What protection and dimensions does it have?
Protection is IP65/67. The width is 14 mm and the depth is 47 mm.
