Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Power connector |
| Connector type | M8, 4-pole |
| Protection | IP65/67 |
| Electrical connection | Screw terminals |
| Cable cross-section | 0.14 mm2 to 0.5 mm2 |
| Cable diameter | 4 mm to 5.5 mm |
| Cable outlet | 180° cable outlet |
| Housing material | plastic |
| Assembly temperature | -30 °C to 85 °C |
Applications
- 24 V DC power supply connection: For connection to ET 200AL for 24 V DC power supply.
Key Features
- M8 4-pole connector: Power connector with an M8, 4-pole connector type and male contact insert.
- Protection and housing: Plastic version with IP65/67 degree of protection.
- Screw terminals: Electrical connection uses screw terminals for mains supply lines.
- Cable connection range: Accepts cable cross-sections from 0.14 mm2 to 0.5 mm2 and cable diameters from 4 mm to 5.5 mm.

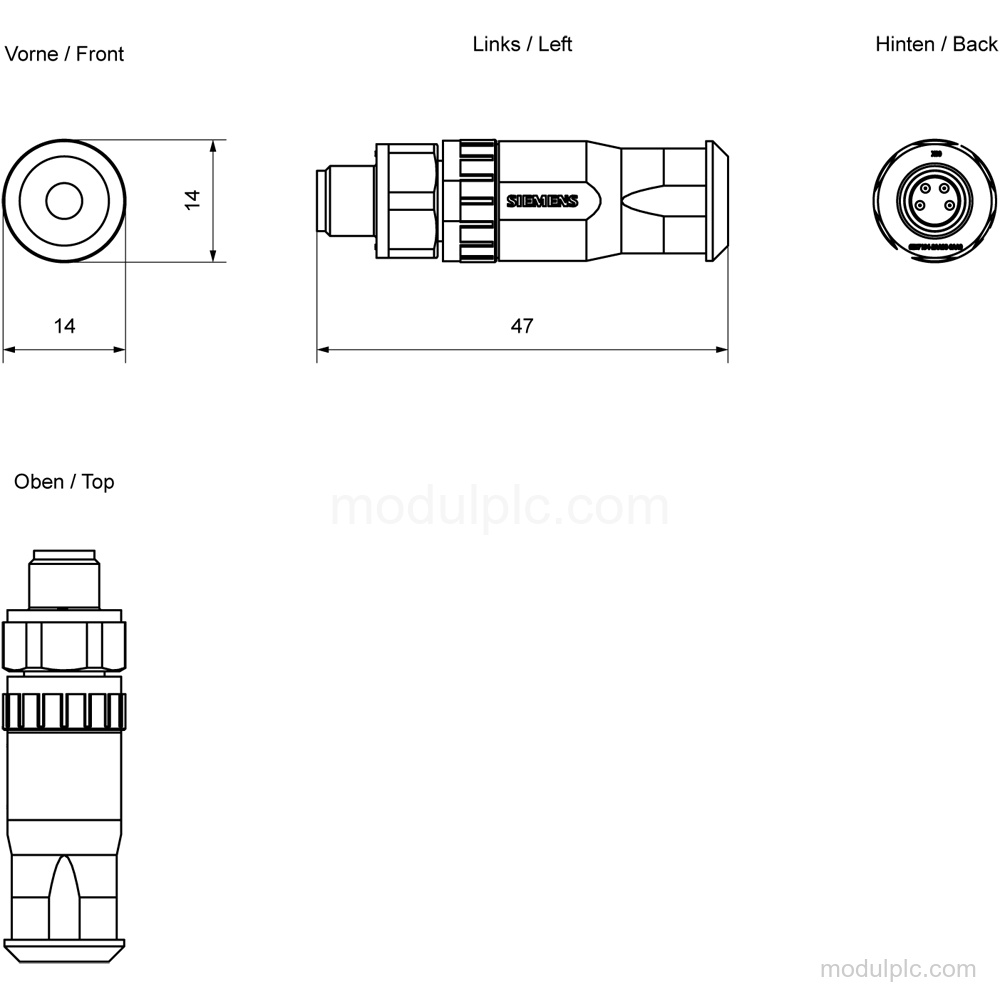

- Cable outlet and dimensions: 180° cable outlet; width: 14 mm; depth: 47 mm.
- Assembly temperature: Ambient temperature during assembly: -30 °C to 85 °C.
Frequently Asked Questions
1. What is the function of Siemens 6ES7194-2AA00-0AA0?
It is an M8 power connector with a male contact insert and 4 poles.
2. What connector and protection does it have?
It has an M8, 4-pole connector and IP65/67 protection.
3. What electrical connection is used?
The electrical connection uses screw terminals.
4. What cable sizes can be connected?
The connectable cable cross-section is 0.14 mm2 to 0.5 mm2, and the suitable cable diameter is 4 mm to 5.5 mm.
5. What configuration is this connector suitable for?
It is suitable for connection to ET 200AL for 24 V DC power supply.
