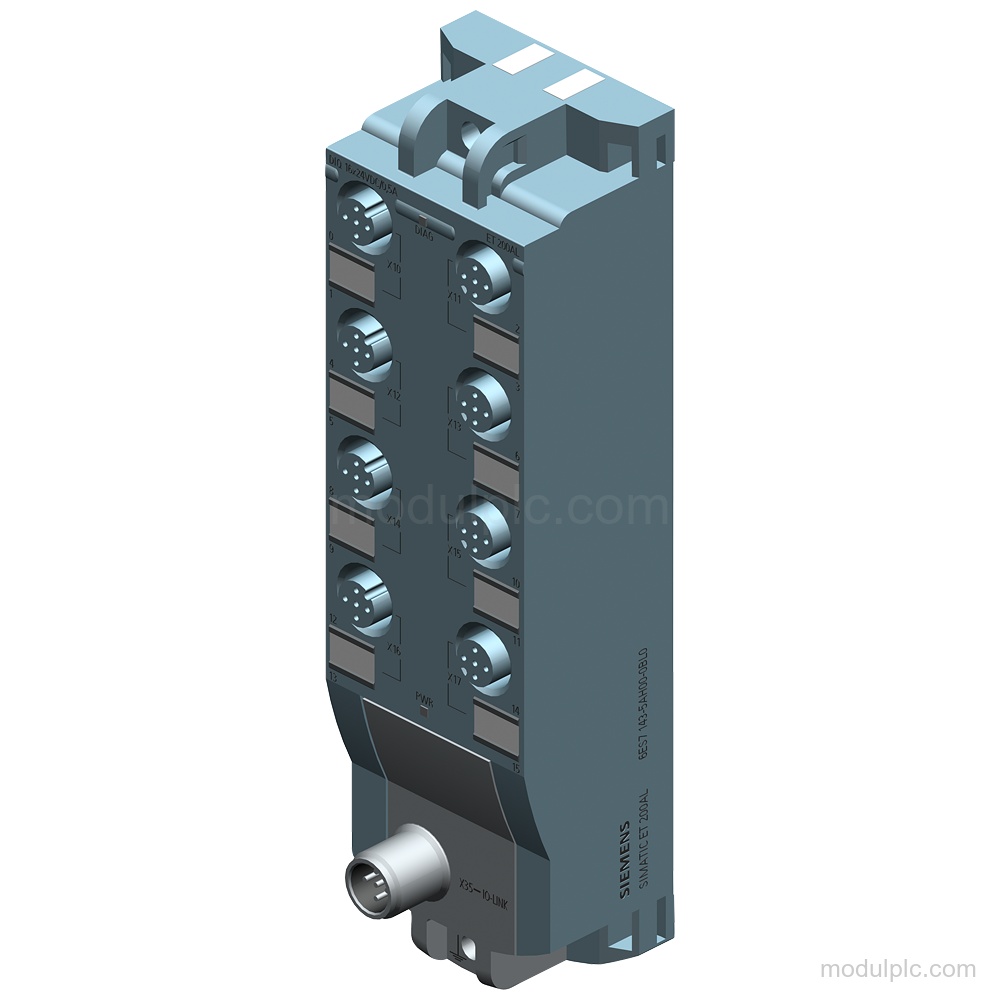

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IO-Link DIQ 16x24VDC/0.5A |
| Digital inputs | 16; parameterizable as DIQ |
| Digital outputs | 16; parameterizable as DIQ |
| Input signal range | Signal "0": -3 to +5 V; signal "1": +11 to +30 V |
| Output current | 0.5 A rated value for signal "1" |
| IO-Link protocol | IO-Link 1.1; 38.4 kBd (COM2) |
| Load voltage 1L+ | 24 V DC; 18 V to 30 V permissible range |
| Load voltage 2L+ | 24 V DC; 20.4 V to 28.8 V permissible range |
| Connection | M12, 5-pin, A-coded |
| Protection | IP65/67 |
Applications
- Digital signal acquisition: The module acquires digital input signals through 16 digital inputs.
- Digital output control: The module controls digital output signals through 16 current-sourcing digital outputs.
- IO-Link device communication: The module communicates with IO-Link devices using IO-Link protocol 1.1.
Key Features
- Digital I/O channels: 16 digital inputs and 16 digital outputs; both are parameterizable as DIQ.
- Signal levels: Input signal "0": -3 to +5 V; input signal "1": +11 to +30 V; output current for signal "1": 0.5 A rated value.
- IO-Link interface: IO-Link protocol 1.1 with 38.4 kBd (COM2), 3 ms minimum cycle time and 2 byte input and output process data per module.
- Load voltage: Load voltage 1L+: 24 V DC, permissible range 18 V to 30 V. Load voltage 2L+: 24 V DC, permissible range 20.4 V to 28.8 V.
- Protection and diagnostics: IP65/67 protection, electronic short-circuit protection for each output channel, and green or green/red LED status indications.

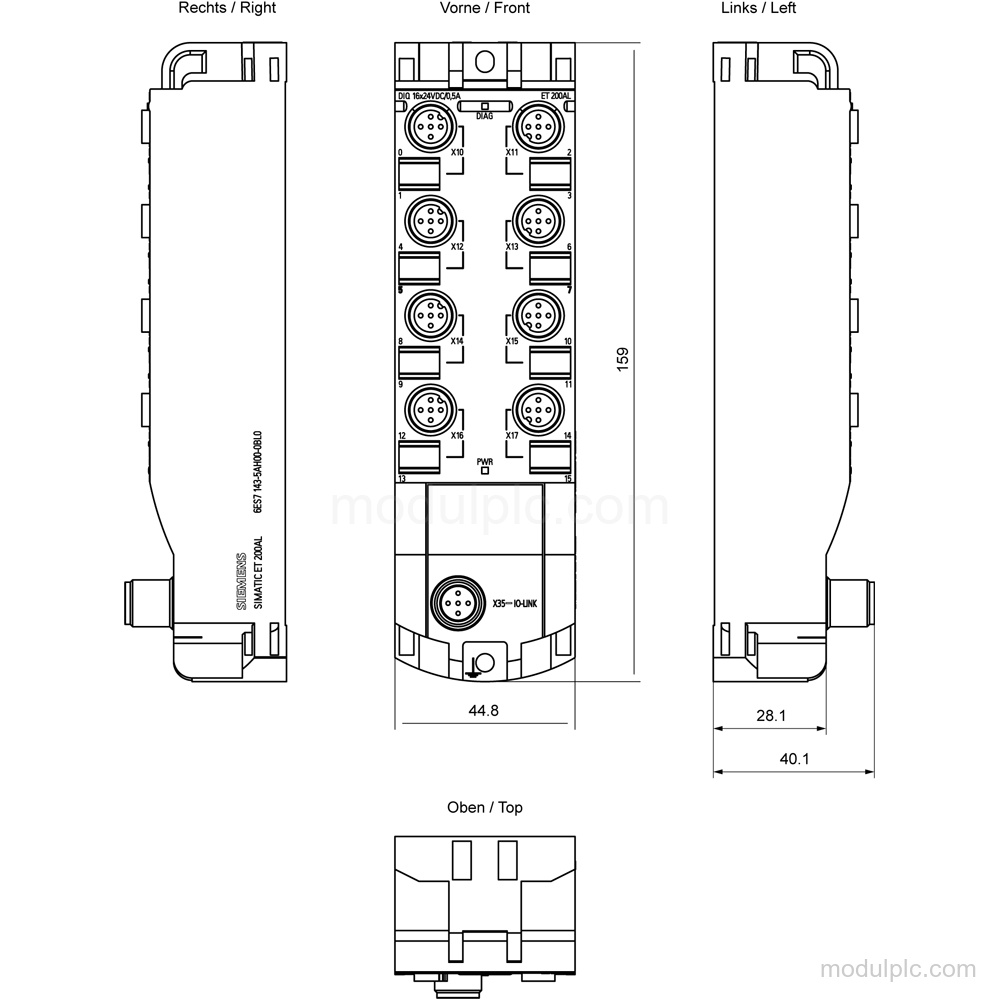

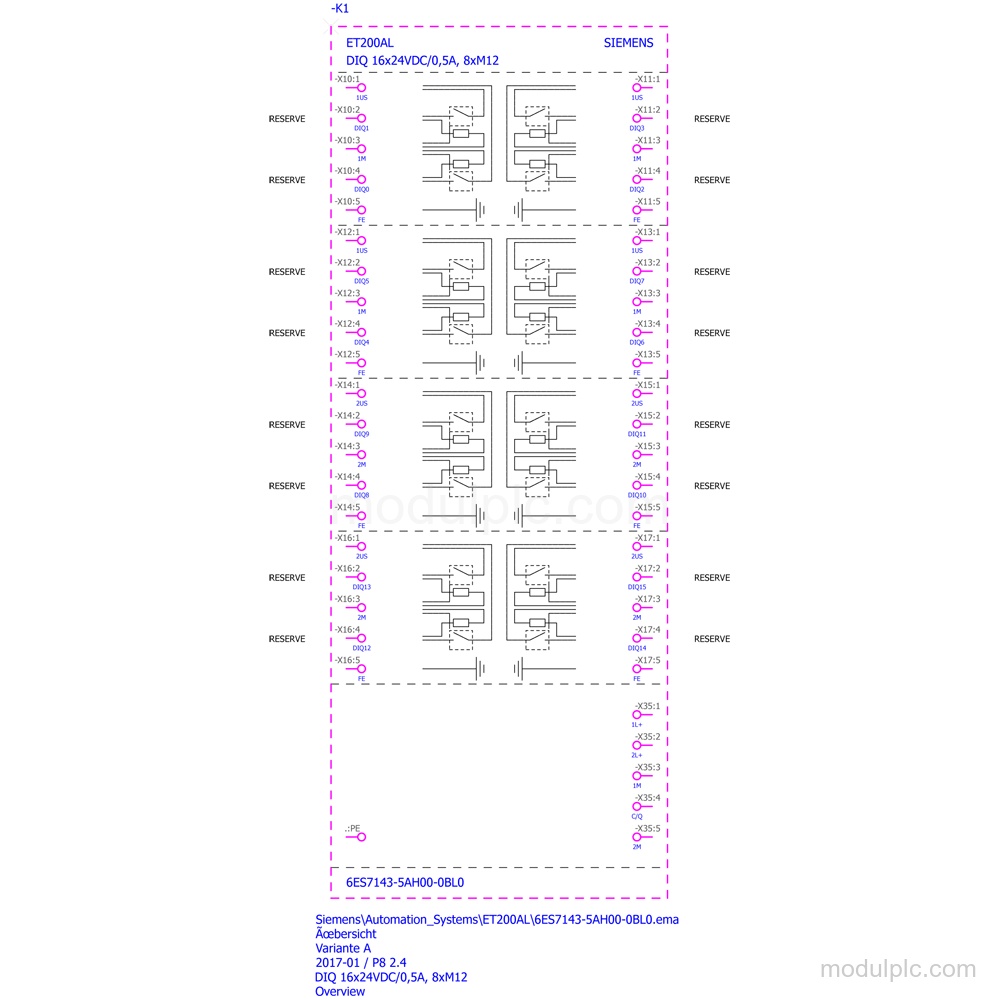

- Connection and dimensions: M12, 5-pin, A-coded connections for inputs, outputs and IO-Link; dimensions: 45 mm width, 159 mm height and 40 mm depth.
Frequently Asked Questions
1. How many digital I/O channels does 6ES7143-5AH00-0BL0 have?
It has 16 digital inputs and 16 digital outputs, and both are parameterizable as DIQ.
2. Which IO-Link protocol and process data does the module support?
It supports IO-Link protocol 1.1 at 38.4 kBd (COM2), with 2 byte input and 2 byte output process data per module.
3. What connections and protection does this module have?
It has M12, 5-pin, A-coded connections for inputs, outputs and IO-Link, with IP65/67 protection.
