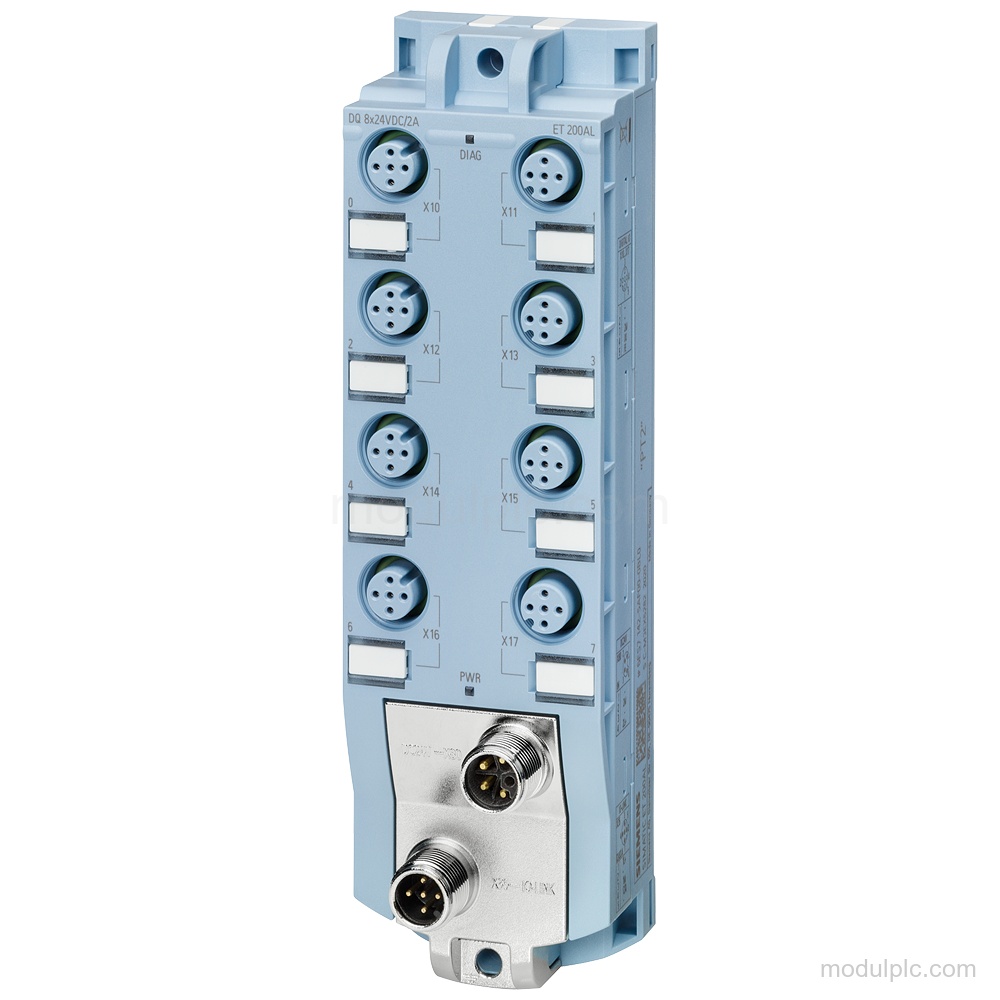

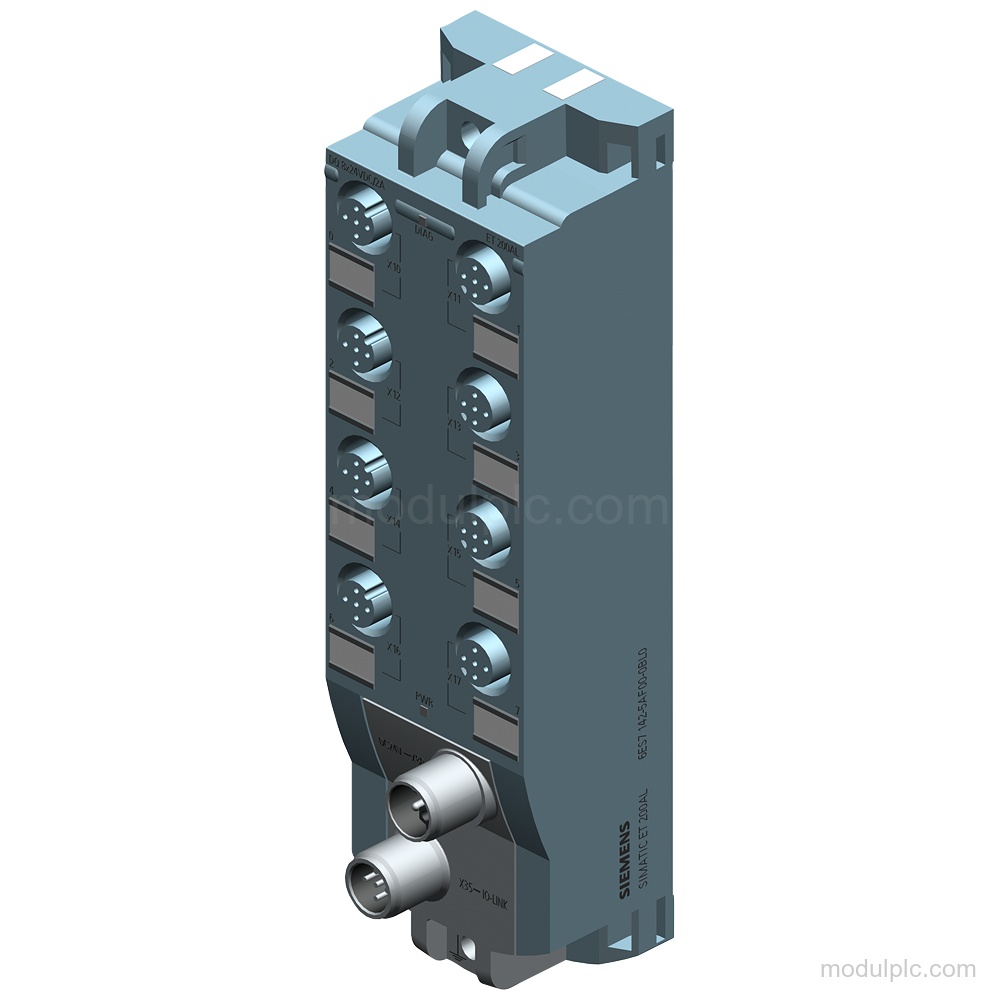

Product Overview
Technical Summary

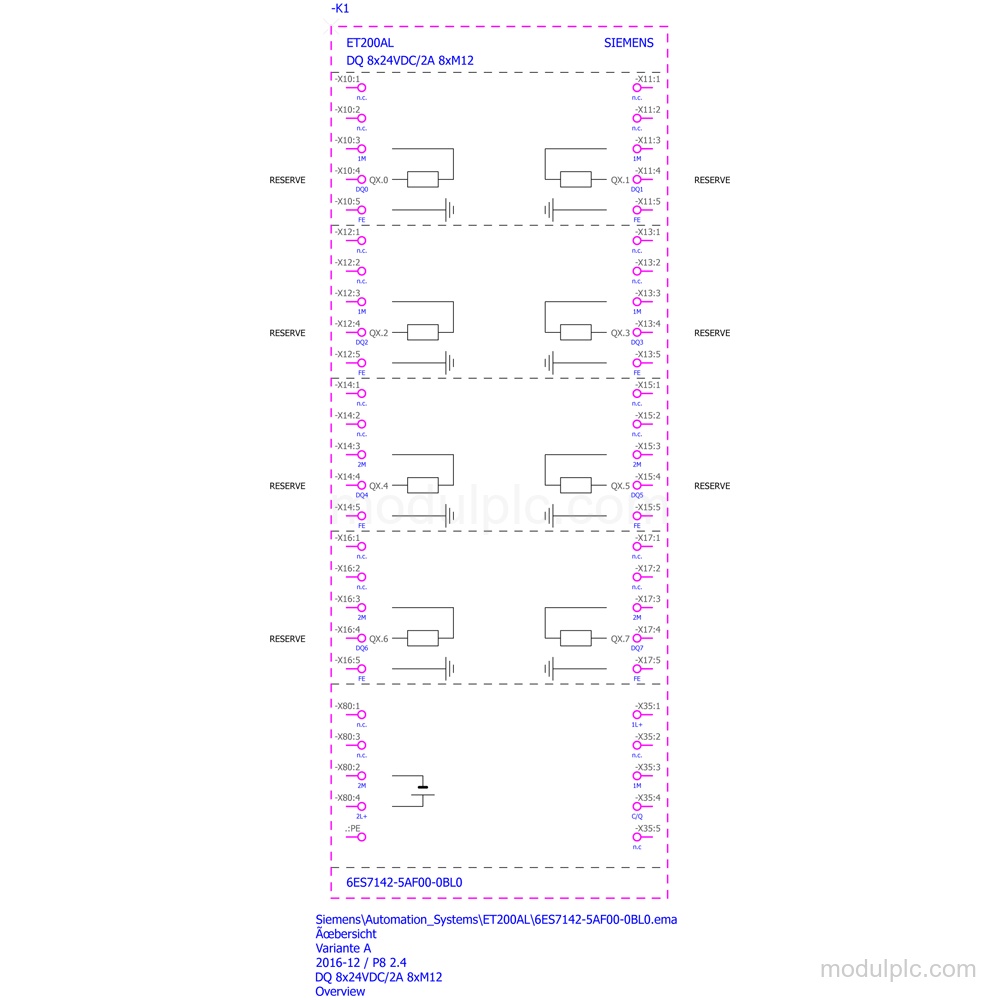

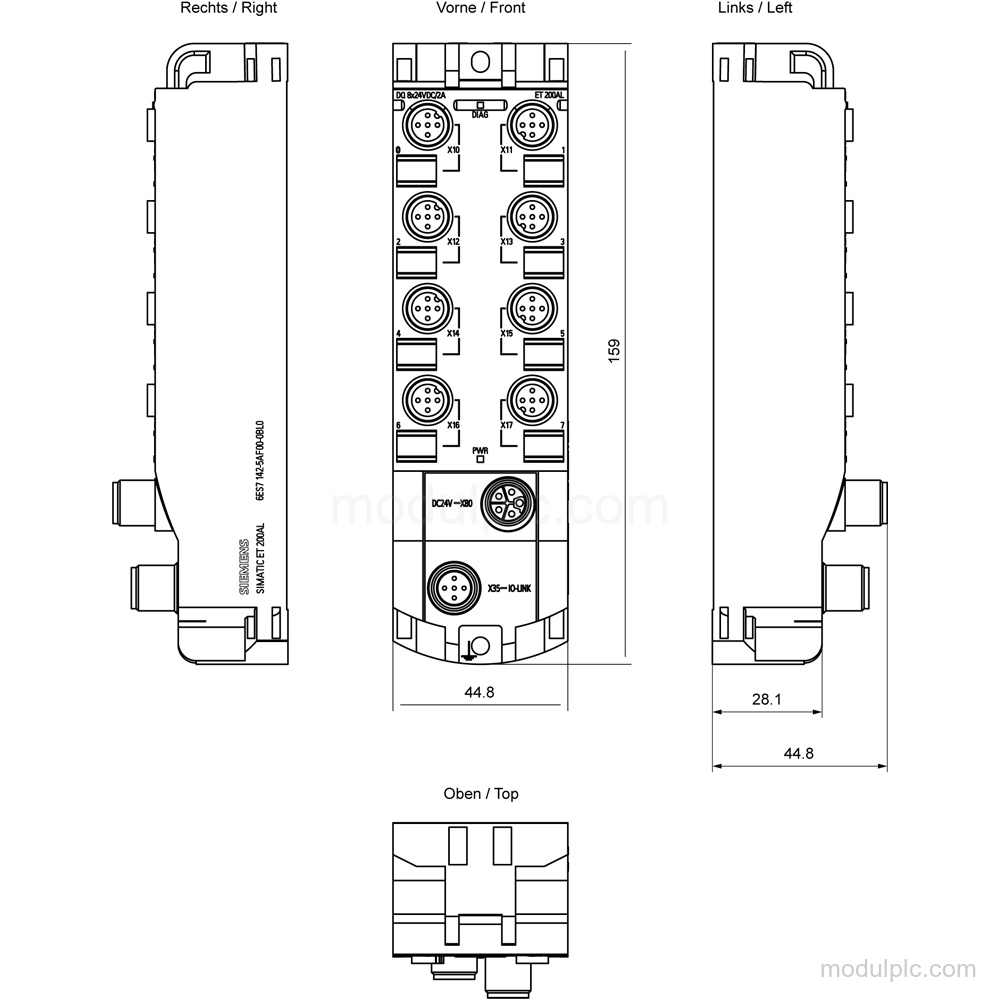

| Parameter | Value |
|---|---|
| Module type | IO-Link DQ 8x24VDC/2A |
| Digital outputs | 8 |
| Output type | Current-sourcing; IEC 61131 type 2 |
| Load voltage 1L+ | 24 V DC; supply from 1Us+ of the IO-Link master |
| Load voltage 2L+ | 24 V DC; supply via M12 connector L-coded |
| IO-Link protocol | 1.1 |
| Transmission rate | 38.4 kBd (COM2) |
| Minimum cycle time | 2.1 ms |
| Output process data | 1 byte per module |
| Connections | 8x M12 |
| Degree of protection | IP65/67 |
Key Features
- Digital outputs: 8 current-sourcing digital outputs with IEC 61131 type 2 output characteristics and electronic short-circuit protection per channel.
- Output rating: Signal 1 rated value: 2 A at 45 °C and 1 A at 55 °C; maximum total current per module: 8 A.
- IO-Link interface: IO-Link protocol 1.1 with 38.4 kBd (COM2), 2.1 ms minimum cycle time, 1 byte output process data per module, and Port type A device connections.
- Supply and connections: Load voltage 1L+ is 24 V DC, supplied from 1Us+ of the IO-Link master; load voltage 2L+ is 24 V DC via an M12 L-coded connector. The module has 8x M12.
- Diagnostics and protection: Channel status display uses green LEDs; module diagnostics use green/red LEDs; load voltage monitoring uses green LEDs. Protection is IP65/67.
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7142-5AF00-0BL0 have?
It has 8 current-sourcing digital outputs.
2. What output current is supported by 6ES7142-5AF00-0BL0?
The signal 1 rated value is 2 A at 45 °C and 1 A at 55 °C. The maximum total current per module is 8 A.
3. Which IO-Link protocol and transmission rate does it use?
It supports IO-Link protocol 1.1 with a transmission rate of 38.4 kBd (COM2).
4. How is the module supplied and connected?
Load voltage 1L+ is 24 V DC, supplied from 1Us+ of the IO-Link master. Load voltage 2L+ is 24 V DC via an M12 L-coded connector, and the module has 8x M12.
