Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | TP277 |
| Display | TFT color display, 256 colors |
| Touch operation | Analog, resistive touch screen |

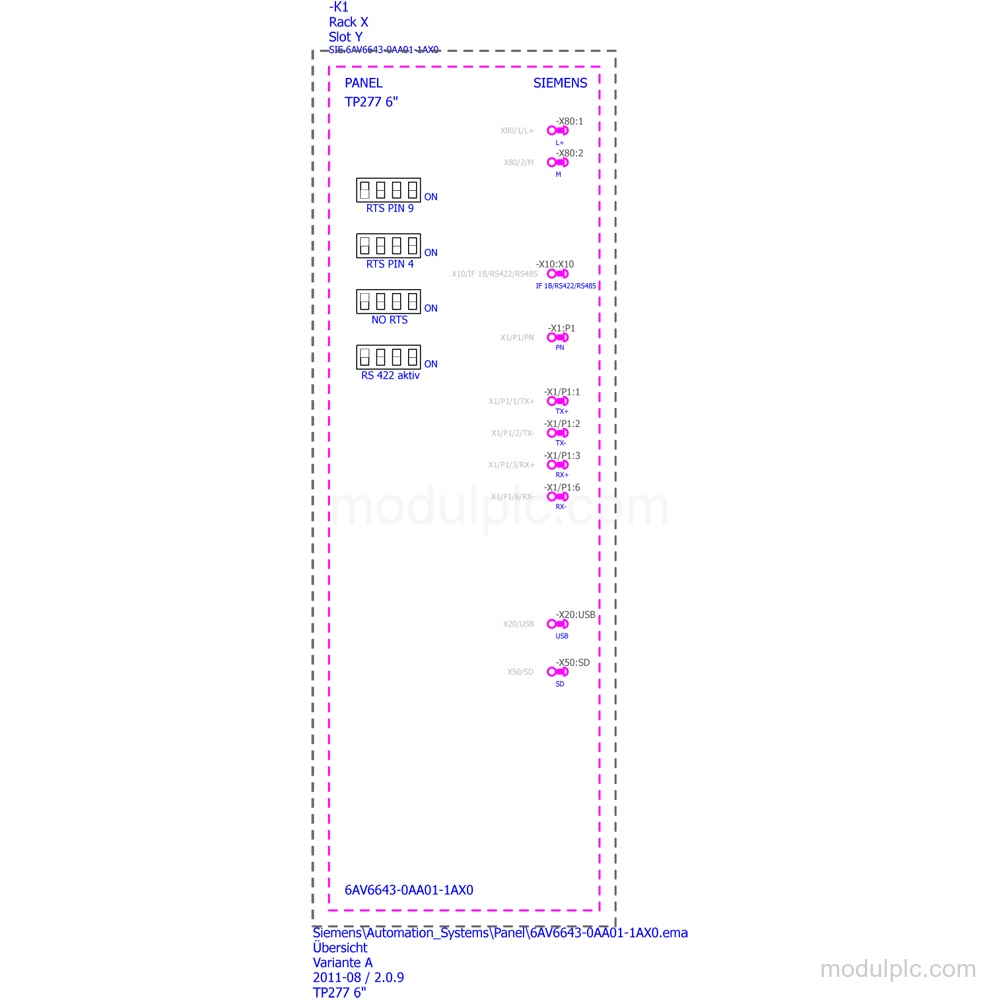

| Interfaces | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) |
| Protocols | PROFINET IO, PROFIBUS, TCP/IP, MODBUS |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- TFT touch display: TFT color display with 256 colors, 320 pixel horizontal resolution and 240 pixel vertical resolution.
- Analog resistive touch operation: The touch screen is analog and resistive, with numeric, alphanumeric and hexadecimal keyboard input.
- Serial and Ethernet interfaces: Interfaces: 1x RS 422, 1x RS 485 and 1x Ethernet (RJ45).
- USB and memory-card connections: 1 USB interface supports up to 1 GB; the panel also has 1x Multimedia Card slot, up to 128 MB.
- Protocol support: Supports PROFINET IO, PROFIBUS, TCP/IP and MODBUS; PROFIsafe and EtherNet/IP are not supported.

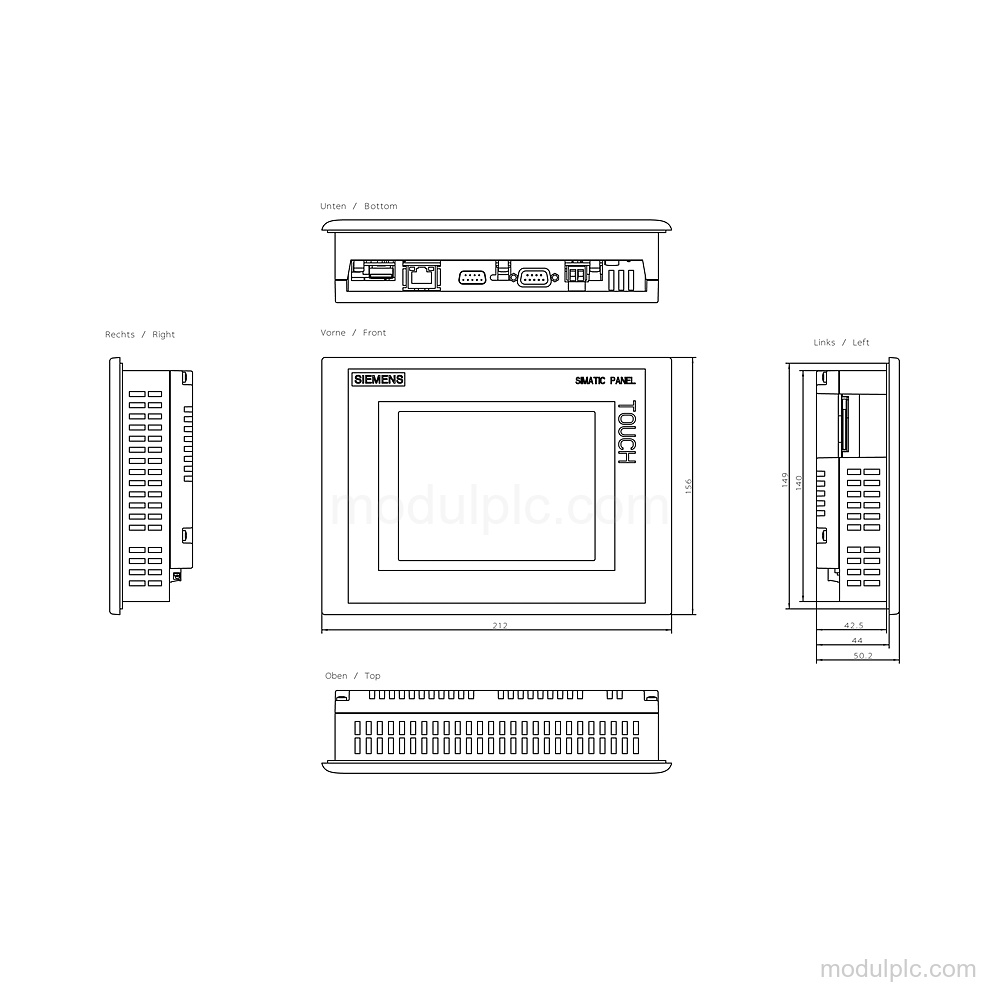

- Panel installation and protection: Vertical mounting; protection is IP65 at the front and IP20 at the rear. The front has NEMA 4x protection when installed.
Frequently Asked Questions
1. What type of touch operation does the Siemens 6AV6643-0AA01-1AX0 provide?
It has an analog, resistive touch screen.
2. Which interfaces are available on the TP 277?
It has 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) and 1 USB interface.
3. Which protocols does the panel support?
It supports PROFINET IO, PROFIBUS, TCP/IP and MODBUS. PROFIsafe and EtherNet/IP are not supported.
4. How is the panel mounted and protected?
It is mounted vertically. Protection is IP65 at the front and IP20 at the rear; the front has NEMA 4x protection when installed.
