Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated output power (HO) | 200.00 kW | 200.00 hp |
| Rated output power (LO) | 250.00 kW | 300.00 hp |
| Line voltage | 380 … 480 V ±10 % |
| Rated output current (HO) | 368.00 A |
| Rated output current (LO) | 450.00 A |
| Maximum output current | 608.00 A |
| Output frequency for vector control | 0 … 100 Hz |
| Output frequency for V/f control | 0 … 100 Hz |
| Line-side connection | M12 screw |
| Degree of protection | IP20 / UL open type |
| Frame size | GX |
Key Features
- Output power: Rated output power: 200.00 kW | 200.00 hp (HO) and 250.00 kW | 300.00 hp (LO).
- Input and output: Input and output: 3 AC. Line voltage: 380 … 480 V ±10 %. Line frequency: 47 … 63 Hz.
- Output current and frequency: Rated output current: 368.00 A (HO) and 450.00 A (LO); maximum output current: 608.00 A. Output frequency: 0 … 100 Hz for vector control and V/f control.

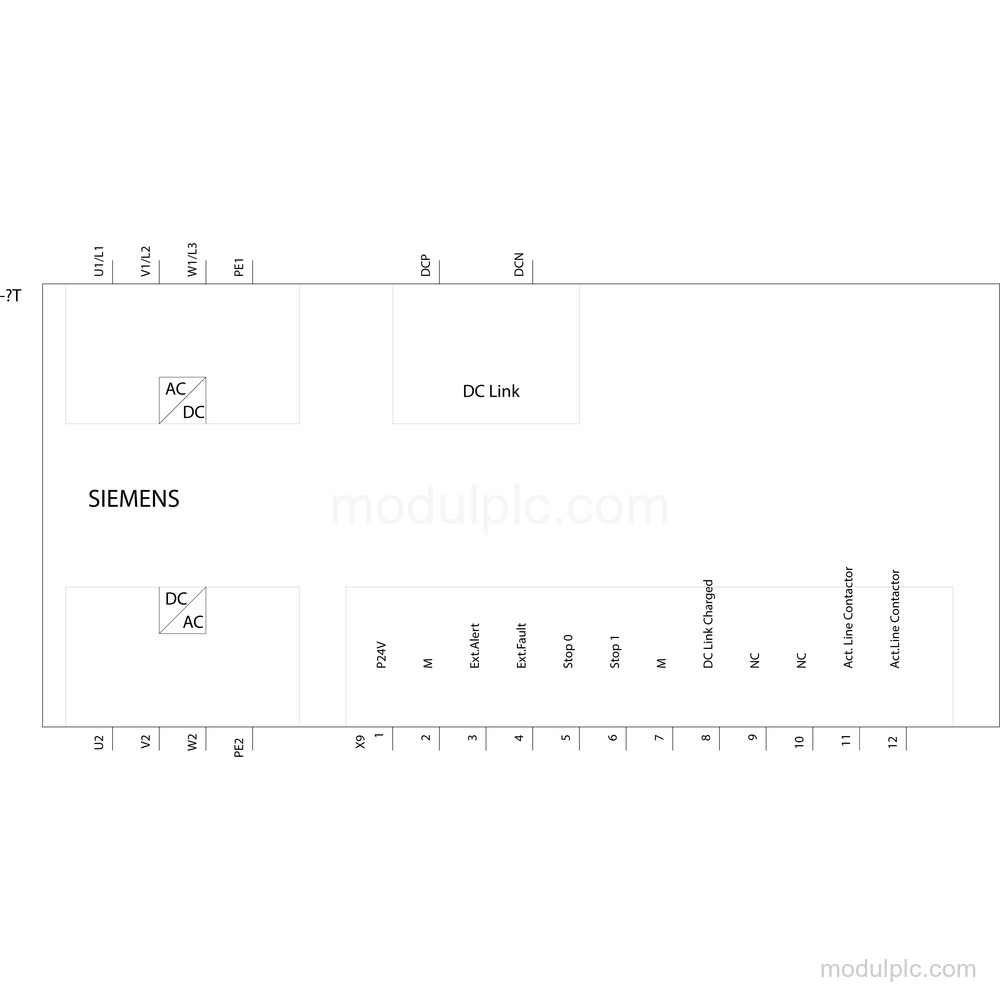

- Connections: Line-side, motor-end, DC-link, and PE connections use M12 screw connections. Maximum motor cable length is 100 m (328.08 ft) shielded or 200 m (656.17 ft) unshielded.
- Installation and protection: Frame size: GX. Degree of protection: IP20 / UL open type. Dimensions: 452 mm × 1,447 mm × 327 mm; net weight: 107.00 kg (235.89 lb).
- Configuration and lifecycle: The power module is without filter, without built-in braking chopper, without control unit and panel, and has Announcement of product phase-out.
Frequently Asked Questions
1. What is the rated output power of 6SL3310-1PE34-6AA0?
The rated output power is 200.00 kW | 200.00 hp for high overload and 250.00 kW | 300.00 hp for light overload.
2. What input supply does this PM330 power module use?
It uses 3 AC input, 380 … 480 V ±10 %, at 47 … 63 Hz.
3. What are the output current limits?
Rated output current is 368.00 A for high overload and 450.00 A for light overload; maximum output current is 608.00 A.
4. Which connections and motor cable lengths are provided?
Line-side, motor-end, DC-link, and PE connections use M12 screw connections. Maximum motor cable length is 100 m shielded or 200 m unshielded.
5. What is excluded from this configuration?
It is without a filter, without a built-in braking chopper, without a control unit, and without a panel.
