Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Communication | PROFIBUS DP |
| Standard digital inputs | 6 |
| Relay changeover outputs | 2 |
| Analog / digital inputs | 2 (Differential input) |
| Analog outputs | 2 (Non-isolated output) |
| Operating voltage via the Power Module | DC 24 V |
| External power supply | DC 20 … 29 V |
| Interfaces | USB and MMC |
| Degree of protection | IP20 / UL open type |

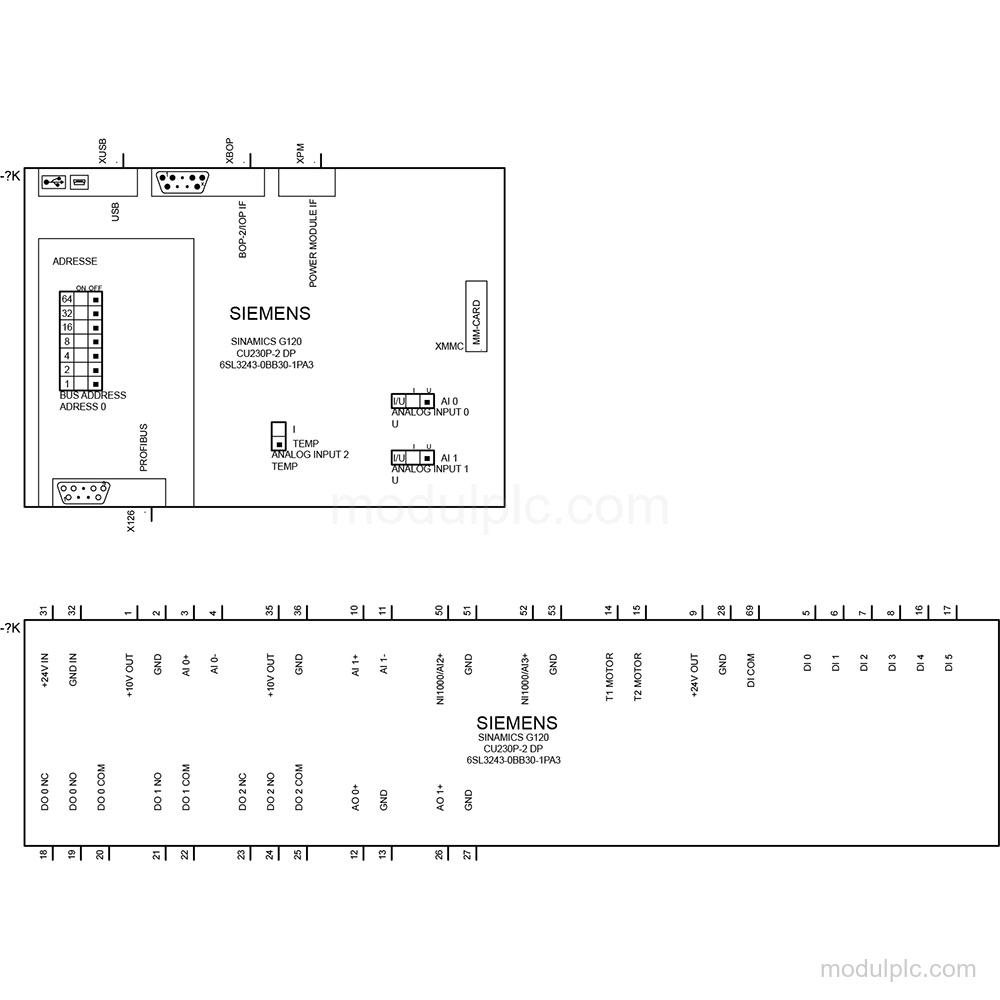

Applications
- PROFIBUS DP communication: Provides communication through the integrated PROFIBUS DP interface.
- Signal acquisition and output control: Acquires digital and analog input signals and provides relay and analog outputs.
- Drive control: Supports V/f linear, square-law and parameterizable control, V/f with flux current control, V/f ECO, sensorless vector control and encoderless torque control.
Key Features
- PROFIBUS DP communication: Integrated PROFIBUS DP communication interface.
- Digital inputs: 6 standard digital inputs with switching levels of 11 V for 0→1 and 5 V for 1→0. No fail-safe digital inputs are available.
- Relay outputs: 2 relay changeover outputs support DC 250 V, 2 A for inductive load and DC 30 V, 0.5 A for resistive load. 1 relay make contact supports DC 30 V, 0.5 A for resistive load.
- Analog I/O: 2 differential analog / digital inputs and 2 non-isolated analog outputs.
- Power and interfaces: Operating voltage via the Power Module: DC 24 V. External power supply: DC 20 … 29 V. The unit has USB and MMC interfaces.
- Protection and dimensions: Degree of protection: IP20 / UL open type. Dimensions: 73.0 mm width, 199.0 mm height and 65.5 mm depth; net weight: 0.61 kg.
Frequently Asked Questions
1. What communication interface does the 6SL3243-0BB30-1PA3 have?
It has integrated PROFIBUS DP communication.
2. How many digital and analog inputs are available?
It has 6 standard digital inputs and 2 differential analog / digital inputs. No fail-safe digital inputs are available.
3. What outputs does this Control Unit provide?
It has 2 relay changeover outputs, 1 relay make contact and 2 non-isolated analog outputs.
4. What power and installation details should be verified before inquiry?
Verify the DC 24 V operating voltage via the Power Module, the DC 20 … 29 V external power supply, IP20 / UL open type protection, and the 73.0 mm x 199.0 mm x 65.5 mm dimensions.
