Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated power | 0.55 kW |
| Overload | 150% for 3 s |
| Supply | 380-480V3AC+10/-20%, 47-63Hz |

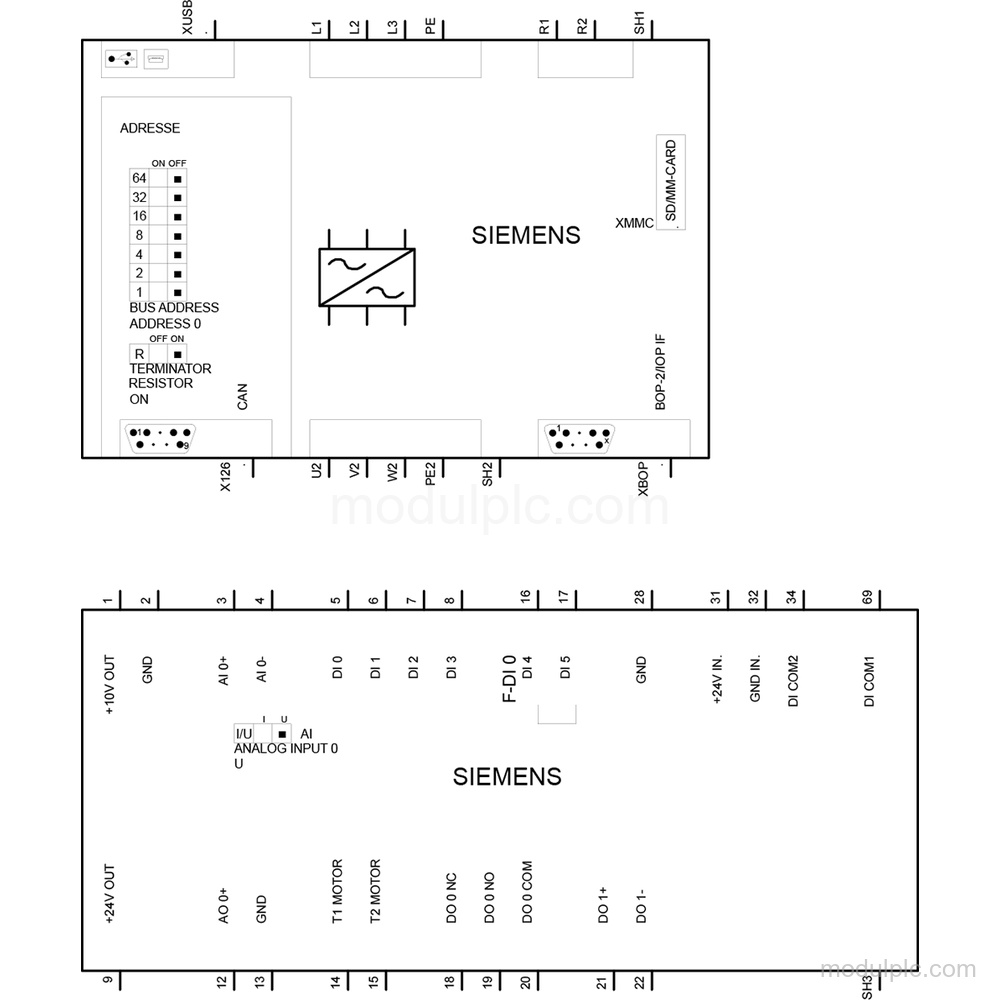

| I/O interface | 6 DI, 2 DQ, 1 AI, 1 AQ |
| Integrated fieldbus | CANopen |
| Safety function | Safe Torque Off integrated |
| Degree of protection | IP20/UL Open Type |
| Size | FSA, 196 x 73 x 203 mm (H x W x D) |
| External supply | 24 V |
Key Features
- Rated power and overload: Rated power: 0.55 kW; overload: 150% for 3 s.
- Supply: Supply: 380-480V3AC+10/-20%, 47-63Hz.
- I/O interface: I/O interface: 6 DI, 2 DQ, 1 AI, 1 AQ.
- Safety and fieldbus: Safe Torque Off integrated; CANopen fieldbus integrated.
- Protection and form factor: Degree of protection: IP20/UL Open Type. Size FSA: 196 x 73 x 203 mm (H x W x D).
- External supply: External 24 V.
Frequently Asked Questions
1. What rated power does the 6SL3210-1KE11-8UC1 have?
It has 0.55 kW rated power and 150% overload for 3 s.
2. Which I/O channels are included?
The I/O interface has 6 DI, 2 DQ, 1 AI, and 1 AQ.
3. Which fieldbus and safety function are integrated?
CANopen fieldbus and Safe Torque Off are integrated.
4. What supply does this drive require?
The supply is 380-480V3AC+10/-20% at 47-63Hz, with external 24 V.
5. What is included in this configuration?
It is a spare part with IP20/UL Open Type protection and FSA size; no additional components are stated.
